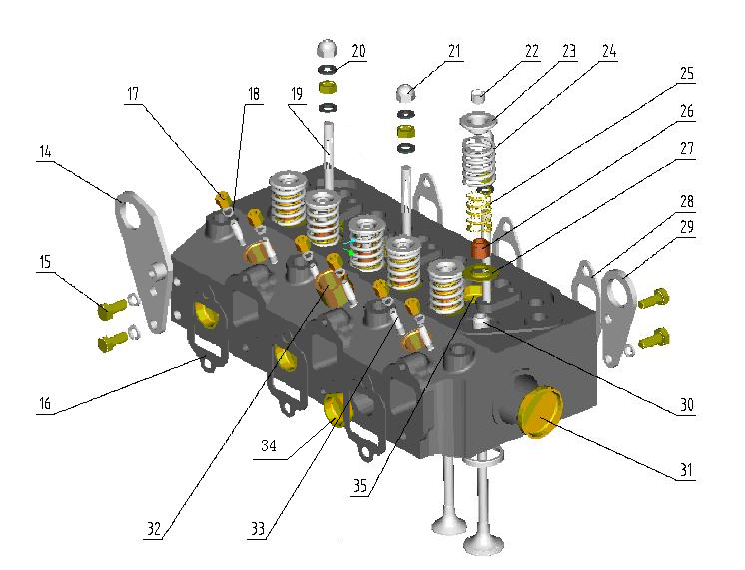

14 |
2408000300400 |
Rear right lifting eye |
1 |
QC480Q—03004 |
|
15 |
M8×20 |
Bolt |
3 |
GB/T5783 |
|
16 |
2408000300901 |
Inter pipe gasket |
3 |
QC480Q-03009 |
|
17 |
2408000301000 |
Fuel injector nut |
6 |
QC480Q-03010 |
|
18 |
6 |
Washer |
6 |
GB/T9783 |
|
19 |
2408000300500 |
Stud rocker shaft seat |
6 |
QC480Q-03005 |
|
20 |
8 |
Washer |
3 |
HG4-330-66 |
|
21 |
M8 |
Blot |
3 |
GB/T923 |
|
22 |
1408500200200 |
Valve collects |
6 |
N485-02002 |
|
23 |
1408500200100 |
Valve spring upper seat |
6 |
N485-02001 |
|
24 |
1408500200300 |
Outer valve spring |
6 |
N485-02003 |
|
25 |
1408500201000 |
Inner valve spring |
6 |
N485-02013 |
|
26 |
1408500201100 |
Valve oil seal assembly |
6 |
N485-02014 |
|
27 |
2408000300200 |
Valve spring Lower seat |
已取消 |
QC480Q-03002 |
|
28 |
2408000300300 |
Exhaust pipe gasket |
3 |
QC480Q—03003 |
|
29 |
2408000300600 |
Rear left lifting eye |
1 |
QC480Q—03006 |
|
30 |
2408000310300 |
Valve pipe |
6 |
QC480Q—03103 |
|
31 |
2408000110900 |
Bowl type plug |
1 |
QC480Q-01109 |
|
32 |
|
Fuel injector copper sleeve |
已取消 |
QC480Q-03102 |
|
33 |
2408000300100 |
Fuel injector Bolt |
6 |
QC480Q-03001 |
|
34 |
2408000310900 |
Bowl type plug |
3 |
QC480Q-03109 |
|
35 |
|
Bowl type plug |
已取消 |
QC480Q-03104 |
