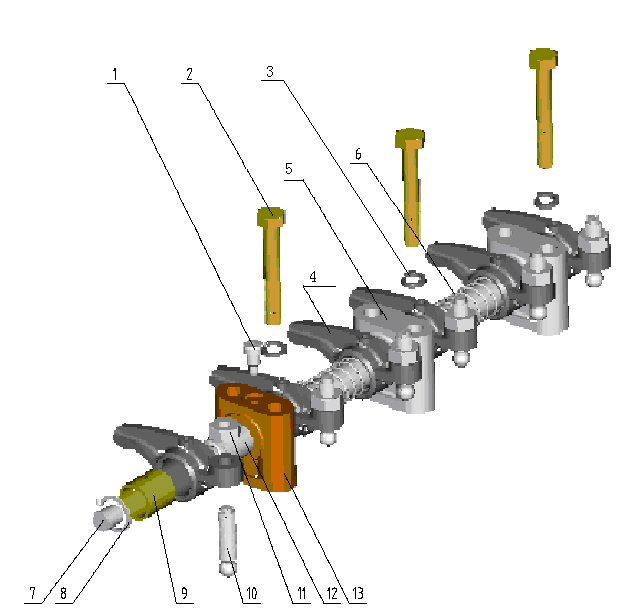

1 |
2408000320500 |
Rocker shaft locating screw |
1 |
QC480Q-03205 |
|
2 |
M8×55 |
Bolt |
3 |
GB/T5783 |
|
3 |
8 |
Washer |
9 |
GB/T93 |
|
4 |
2408000320300 |
Valve rocker arm |
6 |
QC480Q-03203 |
|
5 |
2408000320200 |
Rocker shaft seat |
3 |
QC480Q-03202 |
|
6 |
2408000320400 |
Rocker shaft spring |
3 |
QC480Q-03204 |
|
7 |
2408000321200 |
Rocker shaft |
2 |
QC480Q-03212 |
|
8 |
|
pin |
2 |
GB/T894.1 |
|
9 |
2408000320700 |
Rocker arm bushing |
6 |
QC480Q-03207 |
|
10 |
2408000320100 |
Adjusting screw rocker arm |
6 |
QC480Q-03201 |
|
11 |
M8 |
Nut |
6 |
GB/T6170 |
|
12 |
2308000320100 |
Rocker shaft |
1 |
QC380Q—03201 |
|
13 |
2408000320600 |
Rocker shaft rear seat |
1 |
QC480Q-03206 |
