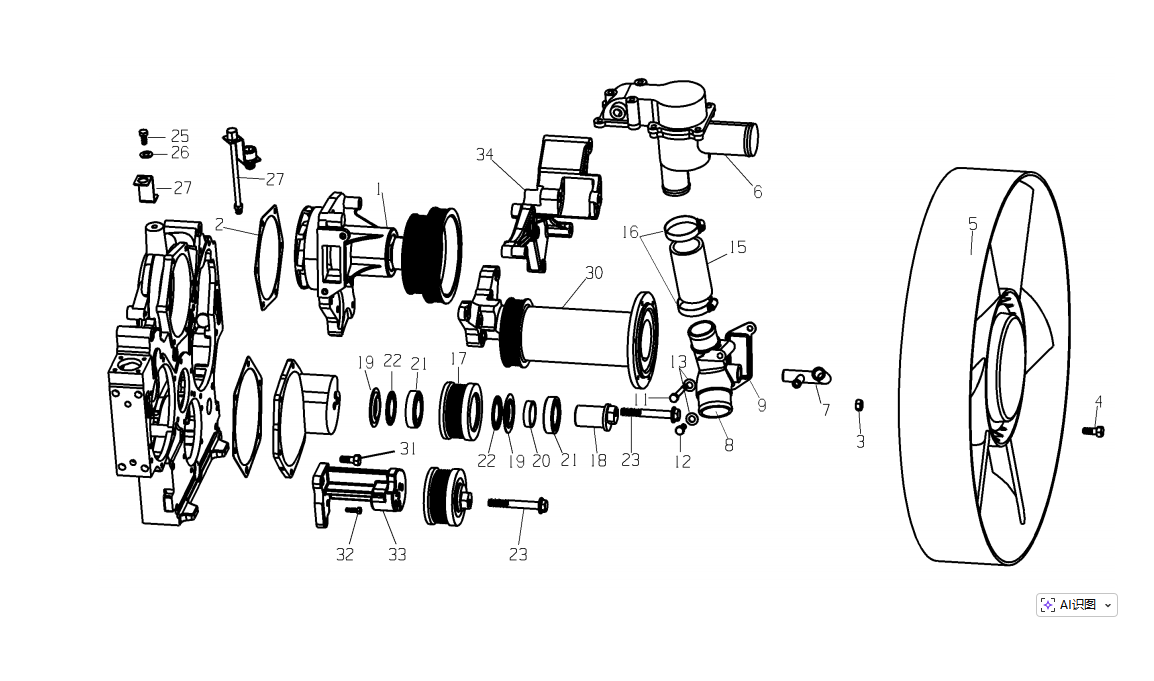

| 1 | Water pump assembly | VG1062060250 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Water pump assembly | VG1500060051 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 2 | Gasket | VG140608 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 3 | Nut | 190003888452 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | VM 10-8-ZN DIN980 | ||||||||
| 4 | Stud | 190003802424 | 6 | 6 | 6 | 6 | 6 | M 8×25-8.8-ZN | DIN933 | ||||||||||||
| 5 | Ring fan | VG2600060446 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 6 | Thermostat | VG1099060001 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 7 | Connecting piece | VG1560060001 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 8 | Pipe connecting piece | VG1560060022A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 9 | Joint | VG14060024 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 11 | Bolt | 190003800467 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | M 8×75-8.8-ZN | DIN931 | |||||||
| 12 | Bolt | 190003802424 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | M 8×25-8.8-ZN | DIN933 | |||||||
| 13 | Spring washer | 190003932023 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | B8-ZN DIN137 | ||||||||
| 15 | Hose | VG61000060276 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 16 | Hose clamp | 190003989308 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 44/60 N05074 | ||||||||
| 17 | Tensioning roller | VG1062060111 | 2 | 2 | 2 | 2 | 2 | ||||||||||||||
| Tensioning roller | VG2600060313 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 18 | Pin | VG1560060071 | 2 | 2 | 2 | 2 | 2 | ||||||||||||||
| 19 | Cover | VG1560060072 | 4 | 4 | 4 | 4 | 4 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 20 | Spacer sleeve | VG1560060073 | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 21 | Angular ball bearing | 190003310067 | 4 | 4 | 4 | 4 | 4 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 22 | Bearing shield | VG1560060074 | 4 | 4 | 4 | 4 | 4 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 23 | Bolt | 190011400001 | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 25 | Bolt | Q218B1625 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 26 | Spring washer | 190003931182 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | B16-ZN DIN127 | ||||||||
| 27 | Water pump grease nozzle | VG2600060456 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 28 | Flange | VG1500060240 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| 29 | Stud | 190003813148 | 6 | 6 | 6 | 6 | 6 | ||||||||||||||
| 30 | Fan bracket assembly | VG1062060020 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| 31 | Bolt | 190011260011 | 2 | 2 | 2 | 2 | 2 | M10×90GB/T5782-8.8-H.Y | |||||||||||||
| 32 | Bolt | 190003802424 | 1 | 1 | 1 | 1 | 1 | M8×25-8.8-ZN DIN933 | |||||||||||||
| 33 | Take-up block | VG1062060002 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| 34 | Bracket | VG1062130018 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Bracket | VG1500130018A | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
