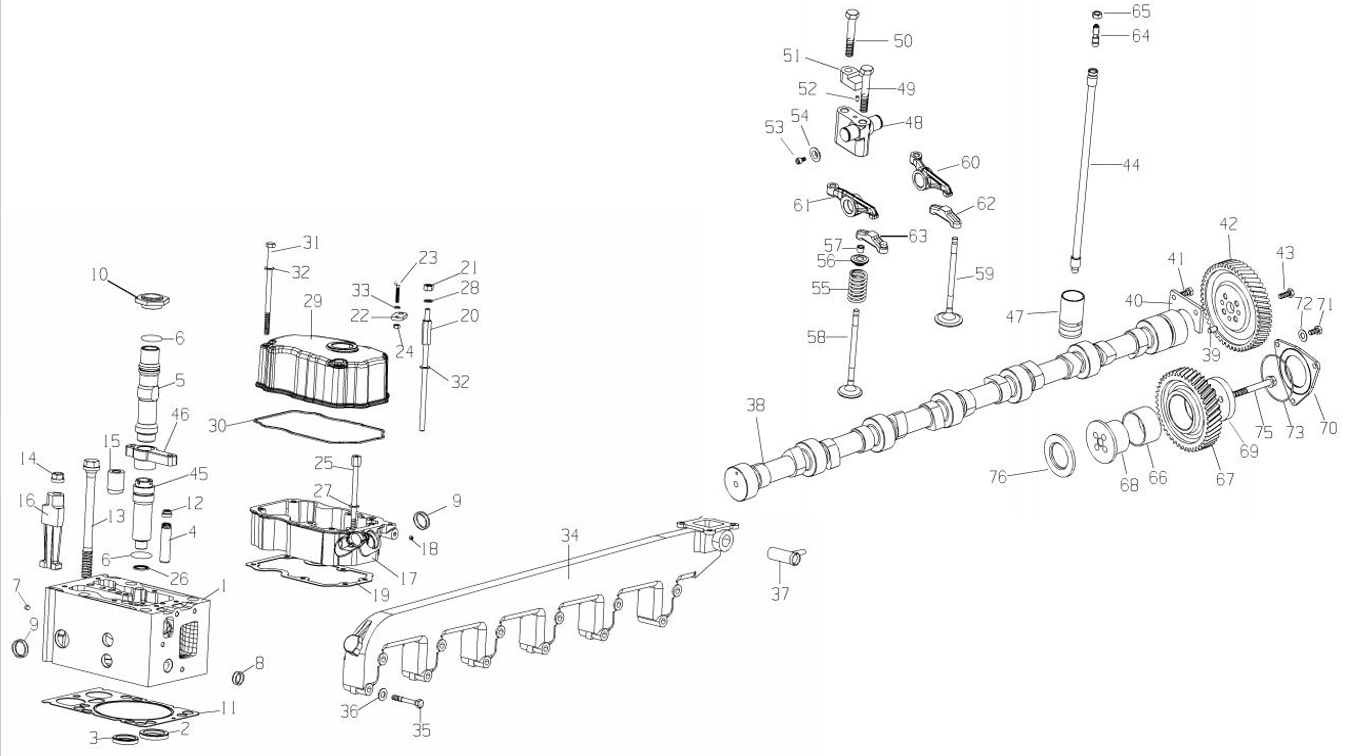

HOWO HEAVY DUTY TRUCK WT615CNG NATURAL GAS CYLINDER HEAD AND VALVE-GEAR MECHANISM-1

By ALEX-86 16215315999 March 19th, 2026 36 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

1	Cylinder head	AZ1540040013	6	6	6	6	6	6	6	6	6	6
2	Intake valve seat	VG1540040102	12	12	12	12	12	12	12	12	12	12
3	Exhaust valve seat	VG1540040101	12	12	12	12	12	12	12	12	12	12
4	Valve guide	VG1540040008	24	24	24	24	24	24	24	24	24	24
5	Ignition coil holder	VG1092080003	6	6	6	6	6	6	6	6	6	6
6	Spark plug holder ring	VG1540040010	12	12	12	12	12	12	12	12	12	12
7	Oil hole plug	VG1540040011	12	12	12	12	12	12	12	12	12	12
8	Core hole plug	190003989721	18	18	18	18	18	18	18	18	18	18	22/8-MSN05564
9	Core hole plug	190003989294	18	18	18	18	18	18	18	18	18	18	30/8-MSN05564
10	Nut	VG1560080703	1	1	1	1	1	1	1	1	1	1
11	Cylinder head gasket	VG1540040015A	6	6	6	6	6	6	6	6	6	6
12	Valve guide	VG1540040026	24	24	24	24	24	24	24	24	24	24
13	Cylinder head bolt	VG1500040023	24	24	24	24	24	24	24	24	24	24
14	Collar nut	VG1200040034	21	21	21	21	21	21	21	21	21	21
15	Clamp	VG1200040023A	5	5	5	5	5	5	5	5	5	5
16	Clamp	VG1500049027	1	1	1	1	1	1	1	1	1	1
	Clamp	VG1200040027	1	1	1	1	1	1	1	1	1	1
	Clamp	VG1099040011A	5	5	5	5	5	5	5	5	5	5
	Clamp	VG1099040014	1	1	1	1	1	1	1	1	1	1
	Clamp	VG1099040025	1	1	1	1	1	1	1	1	1	1
17	Rocker cover	VG1096049020	6	6	6	6	6	6	6	6	6	6
18	Bolt	Q61506	6	6	6	6	6	6	6	6	6	6
19	Gasket	VG1099040022	6	6	6	6	6	6	6	6	6	6
20	Bolt	VG1540040005	6	6	6	6	6	6	6	6	6	6
21	Nut	Q340B08	6	6	6	6	6	6	6	6	6	6
22	Bracket	VG1540080705	6	6	6	6	6	6	6	6	6	6
23	Bolt	Q150B0530	6	6	6	6	6	6	6	6	6	6
24	Nut	Q340B05	6	6	6	6	6	6	6	6	6	6
25	Bolt	19000380467	12	12	12	12	12	12	12	12	12	12
26	Bolt	VG1540080701	6	6	6	6	6	6	6	6	6	6
27	Washer	190003932023	12	12	12	12	12	12	12	12	12	12	B8-ZN DIN137
28	Spring washer	Q40305	6	6	6	6	6	6	6	6	6	6
29	Rocker top cover	VG1092040002	6	6	6	6	6	6	6	6	6	6
30	Rocker cover gasket	VG1099040018	6	6	6	6	6	6	6	6	6	6
31	Bolt	VG14110064	24	24	24	24	24	24	24	24	24	24
32	Spring washer	190003932023	24	24	24	24	24	24	24	24	24	24	B8-ZN DIN137
33	Washer	Q40105	6	6	6	6	6	6	6	6	6	6
34	Water drain pipe	VG1540040231A	1	1	1	1	1	1	1	1	1	1
35	Bolt	190003802455	12	12	12	12	12	12	12	12	12	12
36	Spring washer	190003932023	12	12	12	12	12	12	12	12	12	12	B8-ZN DIN137
37	Pipe connection assembly	VG1500060045	1	1	1	1	1	1	1	1	1	1
38	Camshaft	VG1540050004	1	1	1	1	1	1	1	1	1	1
39	Straight pin	190003901409	1	1	1	1	1	1	1	1	1	1
40	Thrust flange	VG14050133	1	1	1	1	1	1	1	1	1	1
41	Bolt	190003802399	2	2	2	2	2	2	2	2	2	2
42	Camshaft gear	VG14050053	1	1	1	1	1	1	1	1	1	1
43	Bolt	190003802443	4	4	4	4	4	4	4	4	4	4
44	Push rod assembly	VG1096050035	12	12	12	12	12	12	12	12	12	12
45	Spark plug holder	VG1092080002	6	6	6	6	6	6	6	6	6	6
	Holder ring	VG1092080005A	6	6	6	6	6	6	6	6	6	6
46	Spark plug clamp	VG1092080001	6	6	6	6	6	6	6	6	6	6
47	Valve tappet	VG1500050032	12	12	12	12	12	12	12	12	12	12
48	Rocker arm pedestal	VG1540050010D	6	6	6	6	6	6	6	6	6	6
49	Bolt	Q150B1275TF2	6	6	6	6	6	6	6	6	6	6
50	Bolt	Q150B1295TF2	6	6	6	6	6	6	6	6	6	6
51	Rocket bracket block	VG1540050020	6	6	6	6	6	6	6	6	6	6
52	Straight pin	Q5210510	6	6	6	6	6	6	6	6	6	6
53	Socket bolt	Q218B0610	12	12	12	12	12	12	12	12	12	12
54	Spring washer	VG1540050023	12	12	12	12	12	12	12	12	12	12
55	Valve spring	VG1540050011	24	24	24	24	24	24	24	24	24	24
56	Valve cone	VG1096050003	48	48	48	48	48	48	48	48	48	48
57	Spring plate	VG1246050028	24	24	24	24	24	24	24	24	24	24
58	Exhaust valve	VG1092050014	12	12	12	12	12	12	12	12	12	12
59	Intake valve	VG1096050015	12	12	12	12	12	12	12	12	12	12
60	Rocket arm (intake)	VG1540050032	6	6	6	6	6	6	6	6	6	6
61	Rocket arm (exhaust)	VG1540050033	6	6	6	6	6	6	6	6	6	6
62	Valve bridge (intake)	VG1540050018B	6	6	6	6	6	6	6	6	6	6
63	Valve bridge (exhaust)	VG1540050019	6	6	6	6	6	6	6	6	6	6
64	Valve setting screw	VG14050010	12	12	12	12	12	12	12	12	12	12
65	Valve setting nut	VG2130050065	12	12	12	12	12	12	12	12	12	12
66	Bush	VG1560050051	1	1	1	1	1	1	1	1	1	1
67	Intermediate gear	VG1560050052	1	1	1	1	1	1	1	1	1	1
68	Intermediate gear axle	VG1540059031	1	1	1	1	1	1	1	1	1	1
69	Baffle	VG1560050045	1	1	1	1	1	1	1	1	1	1
70	Cover	VG1560050046A	1	1	1	1	1	1	1	1	1	1
71	Socket cap bolt	190003862419	3	3	3	3	3	3	3	3	3	3
72	Spring washer	190003932023	3	3	3	3	3	3	3	3	3	3	B8-ZN DIN137
73	O-ring	190003120602	1	1	1	1	1	1	1	1	1	1
75	Bolt	VG1560050059	4	4	4	4	4	4	4	4	4	4
76	Idle gear Joint	VG1540059032	1	1	1	1	1	1	1	1	1	1
77	Stud	190003813414	2	2	2	2	2	2	2	2	2	2
78	Hexagon nut	190003871252	2	2	2	2	2	2	2	2	2	2
