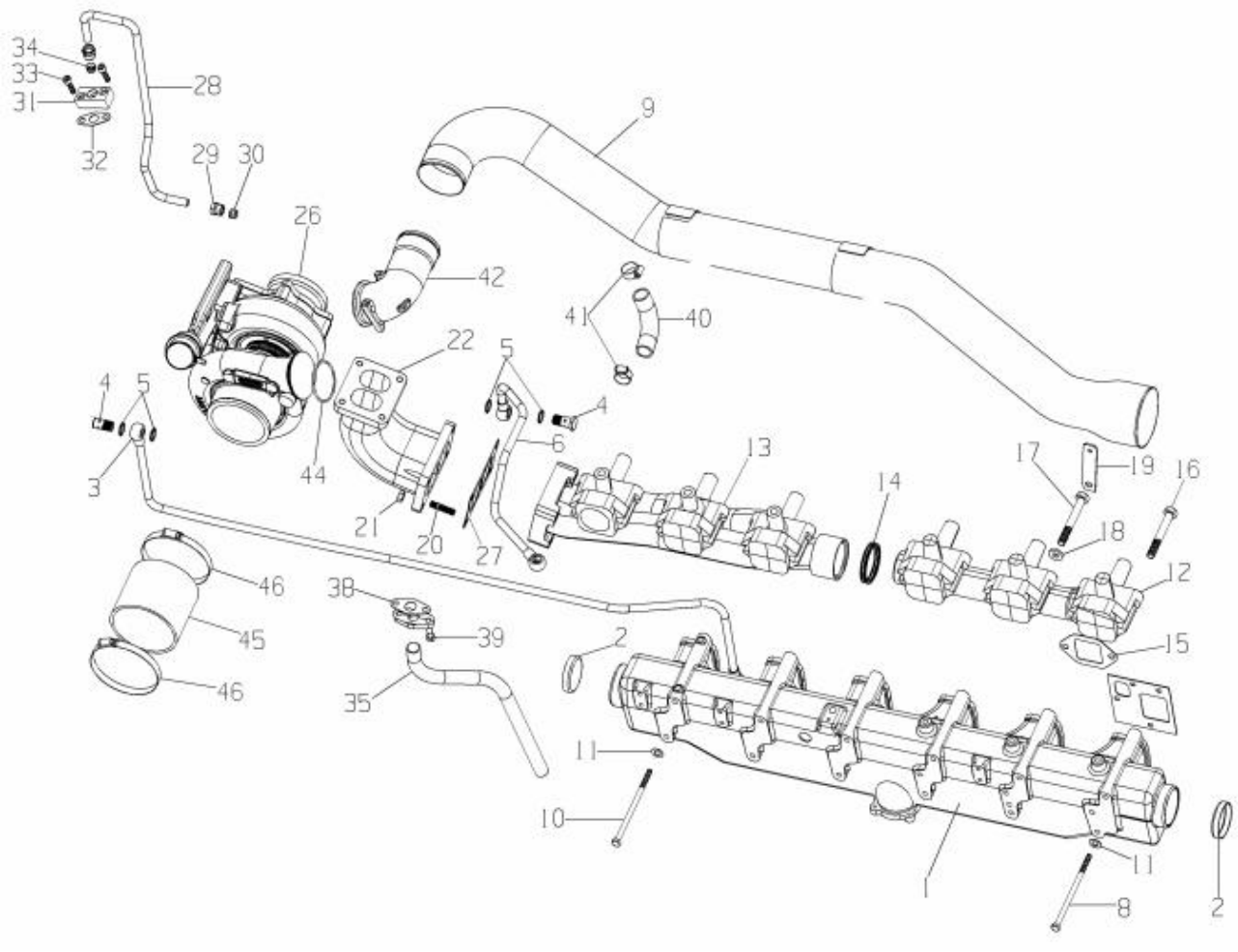

| 1 | Intake manifold | VG1560110401 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 2 | Core plug | 190003989286 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 60/8-MSN05564 | ||||||||
| 3 | Inlet pipe | VG1093110522 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Inlet pipe | VG1540110441 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 4 | Hollow bolt | VG1540110001 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 5 | Sealing washer | VG9003080006 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 6 | Outlet pipe | VG1093110523 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Outlet pipe | VG1540110085 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 7 | Gasket | VG1500110024 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| 9 | Inter cooler inlet pipe | VG1093110521 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Inter cooler inlet pipe | VG2600120123 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 10 | Bolt | VG1540110025 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||||||||
| 11 | Spring washer | 190003932023 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | B8-ZNDIN137 | ||||||||
| 12 | Exhaust manifold (front) | VG2600111290 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Exhaust manifold (front) | VG2600111137 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 13 | Exhaust manifold (rear) | VG2600110855 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Exhaust manifold (rear) | VG1540110095 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 14 | Laminated sealing ring | VG260110162 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 15 | Gasket | VG1560110111 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| 16 | Bolt | VG1560110104 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |||||||||
| 17 | Bolt | VG1560110105 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 18 | Washer | VG609070067 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 19 | Extension bar | VG2600110871 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 20 | Stud | VG1560110187 | 8 | 8 | 8 | 8 | 8 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 21 | Nut | 190003888470 | 8 | 8 | 8 | 8 | 8 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 22 | Exhaust joint | VG1500119020 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| 26 | Turbocharger | VG1540110187 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Turbocharger | VG1540110096 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 27 | Gasket | VG1500119011 | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 28 | Oil supply tube | VG1092110044 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 29 | Bush | 190003559563 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 30 | Nut | 190003559513 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 31 | Oil supply tube flange | VG1560110152 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 32 | Gasket | VG609E110050 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 33 | Bolt | 190003862428 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | M8×25-8.8-ZN | DIN912 | |||||||
| 34 | Retaining ring | VG188250083 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 35 | Oil return tube assembly | VG1560070046 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Oil return tube assembly | VG1560079006 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 38 | Gasket | VG2600110048 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 39 | Bolt | VG1460070014 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 40 | Hose | VG2600070071 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 41 | Hose clamp | 190003989301 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 42 | Connecting pipe | VG1560110165 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 43 | Clamp | VG1560110226 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 44 | O-ring | VG190320035 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 45 | Hose | VG1540110034 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 46 | Hose clamp | 190003989312 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 70/89 N05074 | ||||||||
