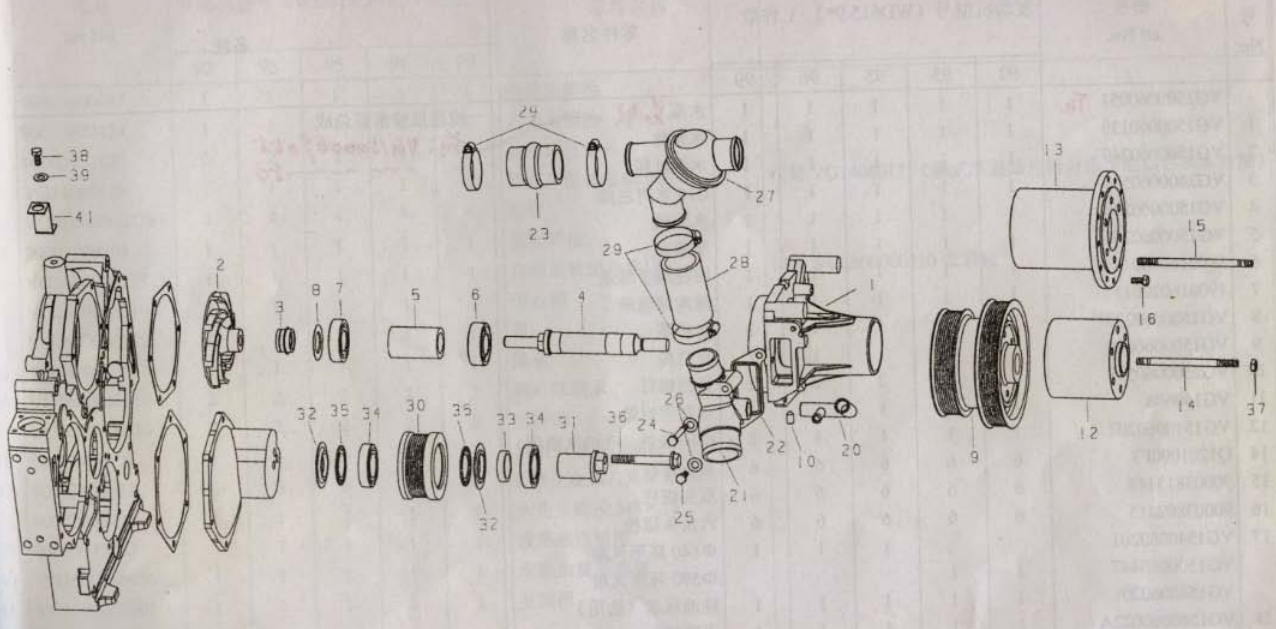

| - | VG1500060051 | 1 | 1 | 1 | 1 | 1 | Water pump ASSEMBLY |
| 1 | VG1500060139 | 1 | 1 | 1 | 1 | 1 | Water pump body |
| 2 | VG1500060249 | 1 | 1 | 1 | 1 | 1 | Pump impeller |
| 3 | VG2600060539 | 1 | 1 | 1 | 1 | 1 | C16 water seal assembly |
| 4 | VG1500060248 | 1 | 1 | 1 | 1 | 1 | Pump shaft |
| 5 | VG1500060251 | 1 | 1 | 1 | 1 | 1 | Supporting sleeve |
| 6 | 190016040012 | 1 | 1 | 1 | 1 | 1 | Cylindrical roller bearings |
| 7 | 190016020017 | 1 | 1 | 1 | 1 | 1 | Deep Groove Ball Bearing |
| 8 | VG1500060237 | 1 | 1 | 1 | 1 | 1 | Protective Ring |
| 9 | VG1500060009 | 1 | 1 | 1 | 1 | 1 | pulley |
| 10 | VG2600060538 | 2 | 2 | 2 | 2 | 2 | fastening screw |
| 11 | VG140608 | 1 | 1 | 1 | 1 | 1 | Water pump sealing gasket |
| 12 | VG1540060202 | 1 | 1 | 1 | 1 | 1 | Middle flange (for silicone oil fan) |
| 14 | Q1201090F3 | 6 | 6 | 6 | 6 | 6 | double-ended stud |
| 15 | 90003813148 | 6 | 6 | 6 | 6 | 6 | double-ended stud |
| 16 | 90003802415 | 6 | 6 | 6 | 6 | 6 | hex head bolt |
| 17 | VG1540060201 | 1 | 1 | 1 | 640 circular fan | ||
| VG1500060447 | 1 | 1 | φ 590 circular fan | ||||
| VG1540060201 | 1 | 1 | 1 | 1 | 1 | Silicone oil fan (optional) | |
| 21 | VG1560060022A | 1 | 1 | 1 | 1 | 1 | pipe fitting |
| 22 | VG14060024 | 1 | 1 | 1 | 1 | 1 | Water pipe joint gasket |
| 23 | VG2600060518 | 1 | 1 | 1 | 1 | 1 | Cooling water hose |
| 24 | 90003800467 | 1 | 1 | 1 | 1 | 1 | hex head bolt |
| 25 | 90003802424 | 1 | 1 | 1 | 1 | 1 | hex head bolt |
| 26 | 90003932023 | 2 | 2 | 2 | 2 | 2 | Waveform elastic gasket |
| 27 | VG14060136 | 1 | 1 | 1 | 1 | 1 | New thermostat assembly 80 ℃ |
| 28 | VG61000060276 | 4 | 4 | 4 | 4 | 4 | hose |
| 29 | 90003989308 | 1 | 1 | 1 | 1 | 1 | Hose clamp |
| 30 | VG2600060313 | 1 | 1 | 1 | 1 | 1 | After the automatic tensioning wheel assembly |
| 31 | VG2600060310 | 1 | 1 | 1 | 1 | 1 | Eccentric sales |
| 32 | VG2600060310 | 1 | 1 | 1 | 1 | 1 | cover |
| 33 | VG2600060310 | 1 | 1 | 1 | 1 | 1 | Spacer sleeve |
| 34 | VG2600060310 | 2 | 2 | 2 | 2 | 2 | Radial ball bearing |
| 35 | VG2600060310 | 2 | 2 | 2 | 2 | 2 | protection |
| 36 | 90011400001 | 1 | 1 | 1 | 1 | 1 | Hexagonal flange bolt enlarged series |
| 37 | 90003888452 | 6 | 6 | 6 | 6 | 6 | Type 2 all metal hexagonal lock nut |
| 38 | 90003802415 | 1 | 1 | 1 | 1 | 1 | Hexagonal head bolt M8 × 18 |
| 39 | 90003932023 | 1 | 1 | 1 | 1 | 1 | Wave spring washers |
| 40 | VG2600060456 | 1 | 1 | 1 | 1 | 1 | Water pump butter adding device |
| 41 | VG1500060001 | 1 | 1 | 1 | 1 | 1 | Bracket board |
