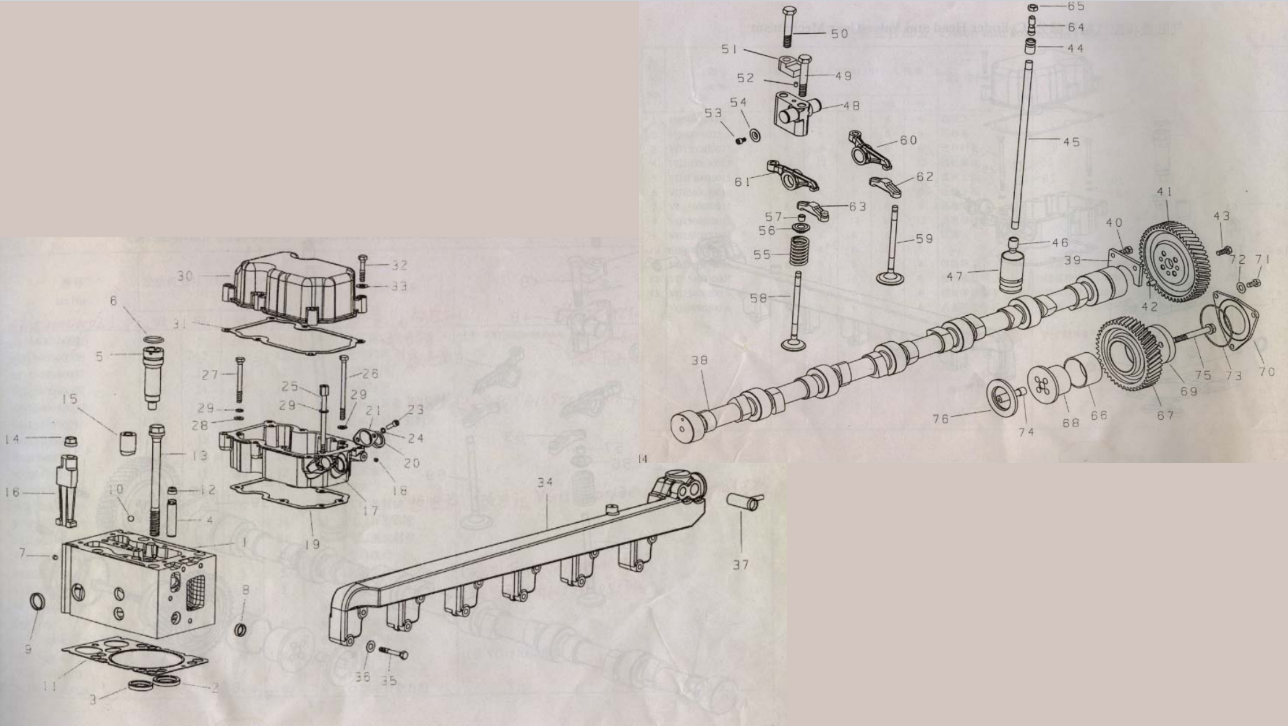

HOWO HEAVY DUTY TRUCK WD615 NATIONAL Ⅲ DIESEL ENGINE (08 COMMON RAIL,FOUR VALVES,7 SETS OF BOLTS,WITHOUT EVB,DUAL CYLINDER) CYLINDER HEAD AND VALVE-GEAR MECHANISM-1

By ALEX-86 16215315999 July 18th, 2026 31 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

1	R61540040003B	6	6	6	6	6	cylinder head
2	VG1540040006	12	12	12	12	12	Intake valve seat
3	VG1540040007	12	12	12	12	12	Exhaust valve seat
4	VG1540040008	24	24	24	24	24	valve guide
5	VG1540040009	6	6	6	6	6	Before the improvement of the fuel injector liner
6	VG1540040010	6	6	6	6	6	Fuel injector liner sealing ring
7	VG1540040011	12	12	12	12	12	Oil hole blockage
8	90003989721	18	18	18	18	18	Bowl shaped stopper
9	90003989294	12	12	12	12	12	Bowl shaped stopper
10	VG1540040013	6	6	6	6	6	steel ball
11	VG1540040015	6	6	6	6	6	Before the improvement of cylinder head gasket
12	VG1540040016	24	24	24	24	24	Valve stem sealing sleeve
13	VG1500040023	24	24	24	24	24	Cylinder head main bolt
14	VG1200040034	7	7	7	7	7	Shoulder nut
15	VG1200040023	5	5	5	5	5	clamping block
16	VG1200040027	2	2	2	2	2	clamping block
17	VG1540040052	6	6	6	6	6	Lower cover of rocker arm cover
18	Q61506	6	6	6	6	6	Slotted cylindrical plug
19	VG1540040057	6	6	6	6	6	Lower cover gasket of rocker arm cover
20	VG1540040022A	6	6	6	6	6	skeleton oil seal
21	VG1540040023	6	6	6	6	6	Wire harness connector flange
22	VG1540040025	6	6	6	6	6	O-ring rubber seal
23	VG1540040025	6	6	6	6	6	Hexagonal socket head screw
24	Q218B0620	12	12	12	12	12	spring washer
25	90014350003	12	12	12	12	12	hex head bolt
26	VG1540040024	6	6	6	6	6	hex head bolt
27	90003802493	6	6	6	6	6	hex head bolt
28	90003800467	24	24	24	24	24	flat washer
29	90003930261	24	24	24	24	24	spring washer
30	90003931102	36	36	36	36	36	Upper cover of rocker arm cover
31	VG1540040051	6	6	6	6	6	Rocker arm cover gasket
32	VG1540040054A	6	6	6	6	6	hex head bolt
33	90003802442	36	36	36	36	36	Wave spring washers
34	90003932023	36	36	36	36	36	outlet pipe
35	VG1540040231	1	1	1	1	1	hex head bolt
36	Q150B0855	12	12	12	12	12	Wave spring washers
37	90003932023	12	12	12	12	12	Pipe joint component
38	VG1500060045	1	1	1	1	1	camshaft
39	VG1540050004	1	1	1	1	1	Camshaft thrust plate
40	VG14050133	1	1	1	1	1	hex head bolt
41	90003802411	2	2	2	2	2	Camshaft timing gear
42	VG14050053	1	1	1	1	1	cylindrical pin
43	90003802443	4	4	4	4	4	hex head bolt
44	VG1540050008	12	12	12	12	12	Valve push rod concave head
45	VG1540050008	12	12	12	12	12	Valve push rod body
46	VG1540050008	12	12	12	12	12	Valve push rod ball head
47	VG1500050032	12	12	12	12	12	valve tappet
48	VG1540050010D	6	6	6	6	6	Valve rocker arm seat
49	Q150B1275TF2	6	6	6	6	6	hex head bolt
50	Q150B1295TF2	6	6	6	6	6	hex head bolt
51	VG1540050020	6	6	6	6	6	Valve rocker arm cushion block
52	Q5210508	6	6	6	6	6	cylindrical pin
53	Q218B0610	12	12	12	12	12	hex socket head bolt
54	VG1540050023	12	12	12	12	12	Bowl shaped ring
55	VG1540050011	24	24	24	24	24	valve spring
56	VG1540050012	48	48	48	48	48	Valve lock clip
57	VG1540050013	24	24	24	24	24	Valve spring seat ring
58	VG1540050014	12	12	12	12	12	exhaust valve
59	VG1540050015	12	12	12	12	12	intake valve
60	VG1540050032	6	6	6	6	6	Intake Valve Rocker
61	VG1540050033	6	6	6	6	6	Exhaust valve rocker arm
62	VG1540050018B	6	6	6	6	6	Intake valve bridge
63	VG1540059028	6	6	6	6	6	Exhaust valve bridge
64	VG14050010	12	12	12	12	12	Valve clearance adjustment screw
65	VG2130050065	12	12	12	12	12	Valve clearance adjustment nut
66	VG1560050051	1	1	1	1	1	bushing
67	VG1560050053	1	1	1	1	1	Intermediate gear assembly
68	VG1540059031	1	1	1	1	1	Intermediate gear shaft
69	VG1560050045	1	1	1	1	1	Baffle
70	VG1560050046A	1	1	1	1	1	cover plate
71	90003802411	3	3	3	3	3	hex head bolt
72	90003932023	3	3	3	3	3	Wave spring washers
73	90003120602	1	1	1	1	1	Seal ring
75	VG1560050059	4	4	4	4	4	Hexagonal head bolt M10 × 80
76	VG1540059032	1	1	1	1	1	Intermediate gear gasket
