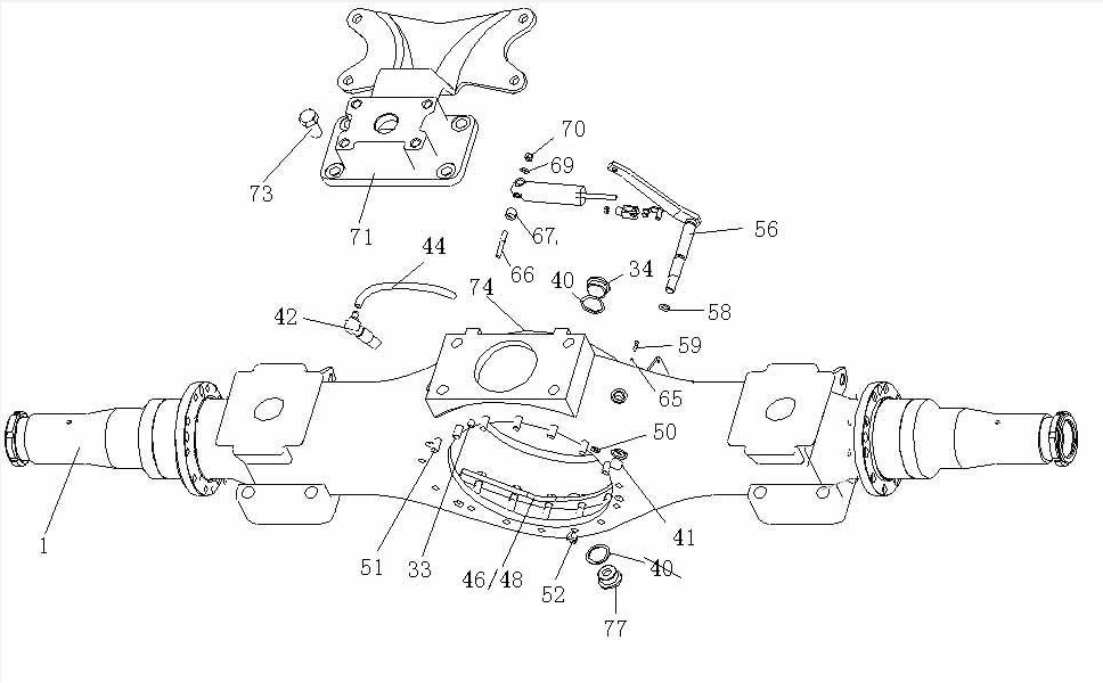

catalogue-HOWO-NEW MODEL-DRIVE AXLE-2
By ALEX-86 16215315999
May 27th, 2025
117 views
we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality partsWhatsapp: +0086 16215315999
| 1 |
AZ9231330569 |
ST16 rear axle housing assembly (wheelbase 1850, for disconnect balance suspension) |
1 |
Drive axle |
| 2 |
AZ9231330564 |
ST16 axle housing center section assembly |
1 |
Drive axle |
| 3 |
AZ9231330563 |
ST16 axle housing center section (170x145) |
2 |
Drive axle |
| 4 |
AZ9231330561 |
Axle head |
2 |
Drive axle |
| 5 |
WG9231330572 |
Fixed disk |
2 |
Drive axle |
| 7 |
WG9231330523 |
Leaf spring upper seat |
2 |
Drive axle |
| 9 |
WG9231330524 |
Leaf spring lower seat |
2 |
Drive axle |
| 11 |
WG9231330150 |
Connecting plate |
1 |
Drive axle |
| 13 |
WG9231330521 |
U-frame |
2 |
Drive axle |
| 15 |
WG9231330520 |
Fixed Support |
2 |
Drive axle |
| 19 |
1680 330026 |
Tabs |
1 |
Drive axle |
| 20 |
159000330019 |
Tubing |
1 |
Drive axle |
| 21 |
WG9012330015 |
Tube |
2 |
Drive axle |
| 23 |
WG9231330501 |
Guide Plate |
2 |
Drive axle |
| 25 |
WG9900410038 |
Protective Tabs |
1 |
Drive axle |
| 27 |
199012330044 |
Tab |
1 |
Drive axle |
| 28 |
WG9012330005 |
Plate |
1 |
Drive axle |
| 30 |
WG680340013 |
Garden Nut (Right) |
1 |
Drive axle |
| 32 |
1680 340014 |
Round Nut (Left) |
1 |
Drive axle |
| 33 |
Q5211016 |
Plunger |
1 |
Drive axle |
| 34 |
WG81500010163 |
Screw plug |
1 |
Drive axle |
| 40 |
Q72336 |
Sealing washer--Q72336 aluminum L1M,GB3190 |
1 |
Drive axle |
| 41 |
190003989290 |
Bowl Plug |
1 |
Drive axle |
| 42 |
WG9231330105 |
Vent plug |
1 |
Drive axle |
| 44 |
WG9231330106 |
Rubber Hose |
1 |
Drive axle |
| 46 |
WG9014330146 |
Bow retaining clip assembly (lower) |
1 |
Drive axle |
| 48 |
WG9014330147 |
Bow retaining clip assembly (upper) |
1 |
Drive axle |
| 50 |
Q2540820 |
Cross recessed countersunk head screws |
4 |
Drive axle |
| 51 |
190003810631 |
Double head stud--M12-M12*1.5*30 DIN939-8.8ZN |
4 |
Drive axle |
| 52 |
190003888457 |
Self-locking nuts |
16 |
Drive axle |
| 53 |
WG2297Y4835 |
Nameplate |
1 |
Drive axle |
| 55 |
190003904529 |
Plate rivet--Rivet GB827-86-2.5*6 |
2 |
Drive axle |
| 56 |
WG9014330125 |
Joystick assembly |
1 |
Drive axle |
| 58 |
1680M 320015 |
O-ring washer |
1 |
Drive axle |
| 59 |
WG69000330008 |
Pin |
1 |
Drive axle |
| 61 |
WG69000330009 |
Pins |
1 |
Drive axle |
| 63 |
WG9100330010 |
Pins See 69000330008 |
1 |
Drive axle |
| 65 |
Q43705 |
Steel wire retaining ring for shaft |
1 |
Drive axle |
| 66 |
Q1200850F3 |
Double studs |
1 |
Drive axle |
| 67 |
WG61000060084 |
Spacer bushings |
1 |
Drive axle |
| 69 |
Q40108 |
Flat washers |
1 |
Drive axle |
| 70 |
Q33208 |
Type 2 all-metal hexagonal locknut |
1 |
Drive axle |
| 71 |
WG9231340041 |
Air chamber bracket (rear axle) |
1 |
Drive axle |
| 73 |
Q151B2040TF2 |
Hexagon head bolts |
4 |
Drive axle |
| 74 |
AZ9231330050 |
Rear cover assembly |
1 |
Drive axle |
| 75 |
AZ9231330051 |
Rear cover |
1 |
Drive axle |
| 76 |
1780 330061 |
Threaded Fitting |
1 |
Drive axle |
| 77 |
WG9231330015 |
Magnetic Plug Assembly |
1 |
Drive axle |
