catalogue-HOWO-NEW MODEL-DRIVE AXLE-1
By ALEX-86 16215315999
May 27th, 2025
45 views
we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality partsWhatsapp: +0086 16215315999

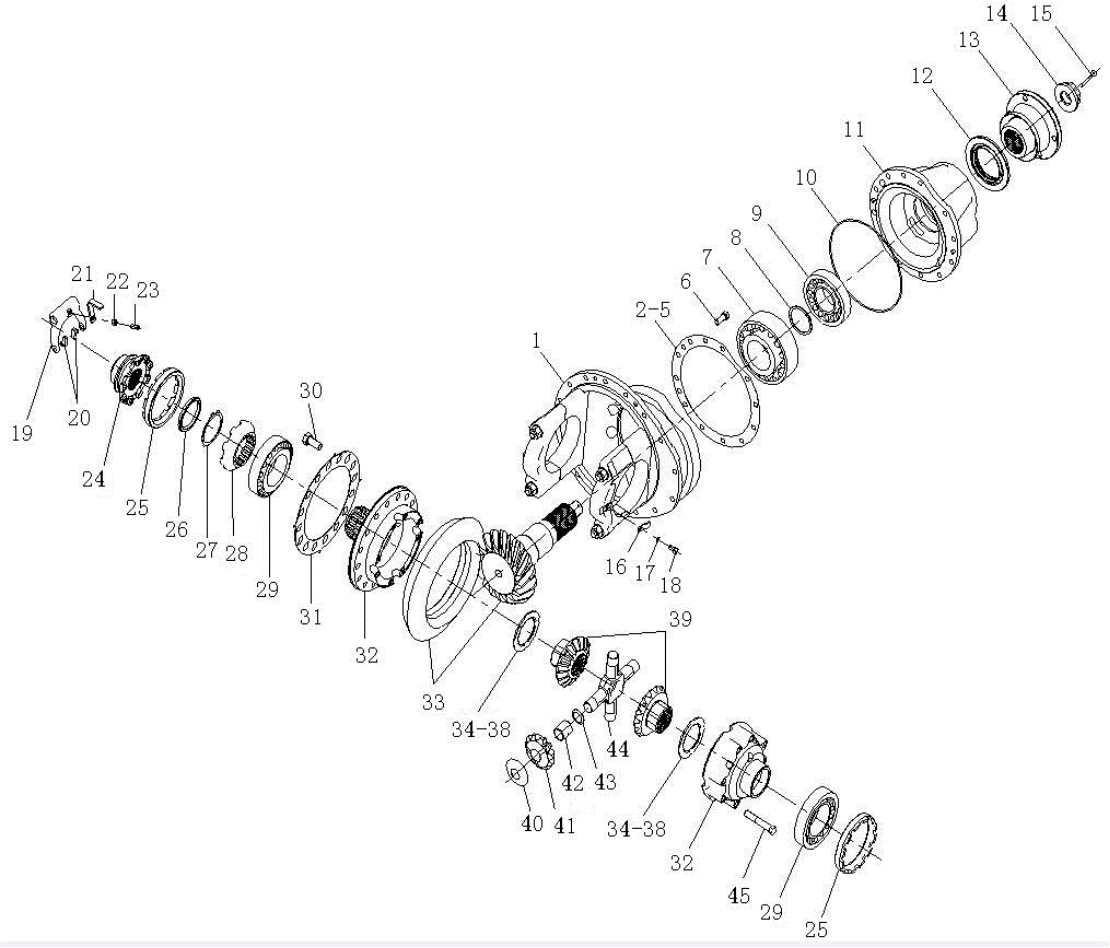

| 1 |
199012320098 |
Main Reducer Housing |
1 |
Drive axle |
| 1.1 |
199012320097 |
Main Reducer (Rear Axle) |
1 |
Drive axle |
| 1.2 |
WG9012320002 |
Differential bearing cover |
2 |
Drive axle |
| 1.3 |
Q5210820 |
Cylindrical pins |
4 |
Drive axle |
| 1.4 |
Q12316120 |
Double studs |
4 |
Drive axle |
| 1.5 |
190003888459 |
Self-locking nut |
4 |
Drive axle |
| 2 |
WG9012320173 |
Adjustment spacer (0.1 thick) |
1 |
Drive axle |
| 3 |
WG9012320174 |
Adjustment shim (0.15 thick) |
1 |
Drive axle |
| 4 |
WG9012320175 |
Adjustment shims(0.4) |
1 |
Drive axle |
| 5 |
WG9012320176 |
Adjustment spacer(Thick 1) |
1 |
Drive axle |
| 6 |
Q150B1230TF2 |
Hexagon head bolts |
12 |
Drive axle |
| 7 |
190003326546 |
Tapered roller bearings 32316 |
1 |
Drive axle |
| 8 |
AZ7121320001 |
Adjusting shim set |
1 |
Drive axle |
| 9 |
190003326236 |
Tapered roller bearings 30312 |
1 |
Drive axle |
| 10 |
WG9012320133 |
Seal ring |
1 |
Drive axle |
| 11 |
WG9012320131 |
Bearing housings |
1 |
Drive axle |
| 12 |
WG9231320001 |
Main reduction oil seal assembly |
1 |
Drive axle |
| 13 |
WG7121320132 |
XSφ165 flange assembly |
1 |
Drive axle |
| 14 |
WG79000320013 |
Flange nut |
1 |
Drive axle |
| 15 |
Q5005055 |
Cotter pin |
1 |
Drive axle |
| 16 |
WG79000320027 |
Stop plate |
2 |
Drive axle |
| 17 |
Q40308 |
Spring washer |
2 |
Drive axle |
| 18 |
ZQ150B0816 |
Hexagon head bolt M8 |
2 |
Drive axle |
| 19 |
WG9012320014 |
Forks |
1 |
Drive axle |
| 20 |
WG1800 320077 |
Fork movable block |
2 |
Drive axle |
| 21 |
WG9012320023 |
Bend plate |
1 |
Drive axle |
| 22 |
ZQ340B08 |
Type 1 hexagon nuts M8 |
1 |
Drive axle |
| 23 |
Q2800825 |
Slotted cone end set screws |
1 |
Drive axle |
| 24 |
WG3809320156 |
Sliding engagement sleeve |
1 |
Drive axle |
| 25 |
WG3809320159 |
Differential bearing adjusting nut |
2 |
Drive axle |
| 26 |
WG3809320157 |
Round nut |
1 |
Drive axle |
| 27 |
WG3809320158 |
Lock washers |
1 |
Drive axle |
| 28 |
WG3809320155 |
Fixed engagement sleeve |
1 |
Drive axle |
| 29 |
190003326148 |
Tapered roller bearing 32216 |
2 |
Drive axle |
| 30 |
ZQ151B1635TF2 |
Hexagon head bolts M16*1.5*35 |
16 |
Drive axle |
| 31 |
WG9114320003 |
Lock plate-follower bevel gear bolt |
1 |
Drive axle |
| 32 |
WG9231320274 |
Differential housing |
1 |
Drive axle |
| 33 |
WG9231320912 |
Bevel Gear Pay 29/21 |
1 |
Drive axle |
| 34 |
WG9231320154 |
Adjustment shims |
1 |
Drive axle |
| 35 |
WG9231320155 |
Adjustment shims |
1 |
Drive axle |
| 36 |
WG9231320156 |
Adjustment shims |
1 |
Drive axle |
| 37 |
WG9231320157 |
Adjustment shims |
1 |
Drive axle |
| 38 |
WG9231320158 |
Adjusting shims |
1 |
Drive axle |
| 39 |
WG9231320151 |
Half shaft gears |
2 |
Drive axle |
| 40 |
WG9231320153 |
Planetary Gear Shims |
4 |
Drive axle |
| 41 |
WG9231320152 |
Planetary Gear |
4 |
Drive axle |
| 42 |
WG9231320159 |
Bushings |
4 |
Drive axle |
| 43 |
WG9231320160 |
Bushing Retaining Ring |
4 |
Drive axle |
| 44 |
AZ9231320150 |
Cross shafts |
1 |
Drive axle |
| 45 |
WG9231320169 |
Hexagon head bolts |
8 |
Drive axle |
| 46 |
WG2297Y4835 |
Nameplate |
1 |
Drive axle |
| 47 |
190003904529 |
Rivet for nameplate--Rivet GB827-86-2.5*6 |
2 |
Drive axle |
