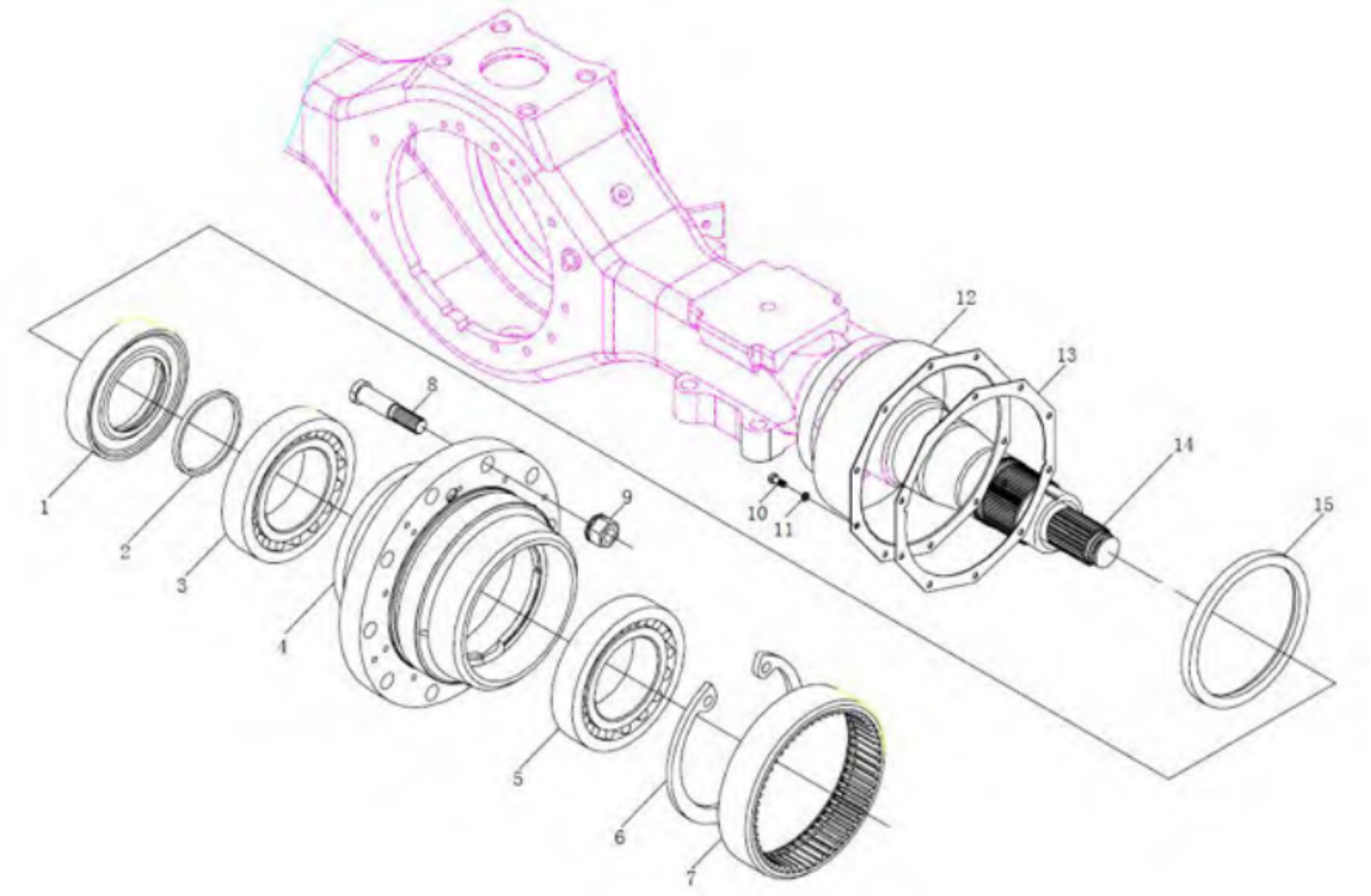

| 1 | 199012340017 | spacer ring | 2 | |||||||||||||||||||||
| 2 | 199012340027 | sealing ring | 2 | |||||||||||||||||||||
| 3 | 190003326067 | Conical roller bearing 30222 | 2 | |||||||||||||||||||||
| 4 | 199112340010 | Rear wheel hub assembly | 2 | The assembly includes wheel bolts | ||||||||||||||||||||
| 199112340011 | Rear wheel hub assembly ABS | 2 | (Optional) The assembly includes wheel bolts | |||||||||||||||||||||
| 5 | 190003326167 | Conical roller bearing 32222 | 2 | |||||||||||||||||||||
| 6 | 188000420014 | retaining ring for holes | 2 | |||||||||||||||||||||
| 7 | 199012340121 | internal gear ring | 2 | |||||||||||||||||||||
| 8 | 199012340123 | wheel bolt | 20 | |||||||||||||||||||||
| 9 | 190003884160 | wheel nut | 20 | |||||||||||||||||||||
| 10 | Q150B0816 | hex head bolt | 20 | |||||||||||||||||||||
| 11 | Q40308 | spring washer | 20 | |||||||||||||||||||||
| 12 | 199012340021 | Oil shield | 2 | |||||||||||||||||||||
| 13 | 199012340020 | gasket | 2 | |||||||||||||||||||||
| 14 | 199012340023 | Half axis (left) | 1 | for 1800 wheel track | ||||||||||||||||||||
| 199012340024 | Half axis (right) | 1 | for 1800 wheel track | |||||||||||||||||||||
| DZ9112340221 | Half axis (left) | 1 | for 1860 wheel track（optional） | |||||||||||||||||||||
| DZ9112340222 | Half axis (right) | 1 | for 1860 wheel track（optional） | |||||||||||||||||||||
| 15 | DZ9112340227 | Wheel hub oil seal (left) | 1 | Combination oil seal, divided into left and right | ||||||||||||||||||||
| DZ9112340228 | Wheel hub oil seal (right) | 1 | Combination oil seal, divided into left and right | |||||||||||||||||||||
