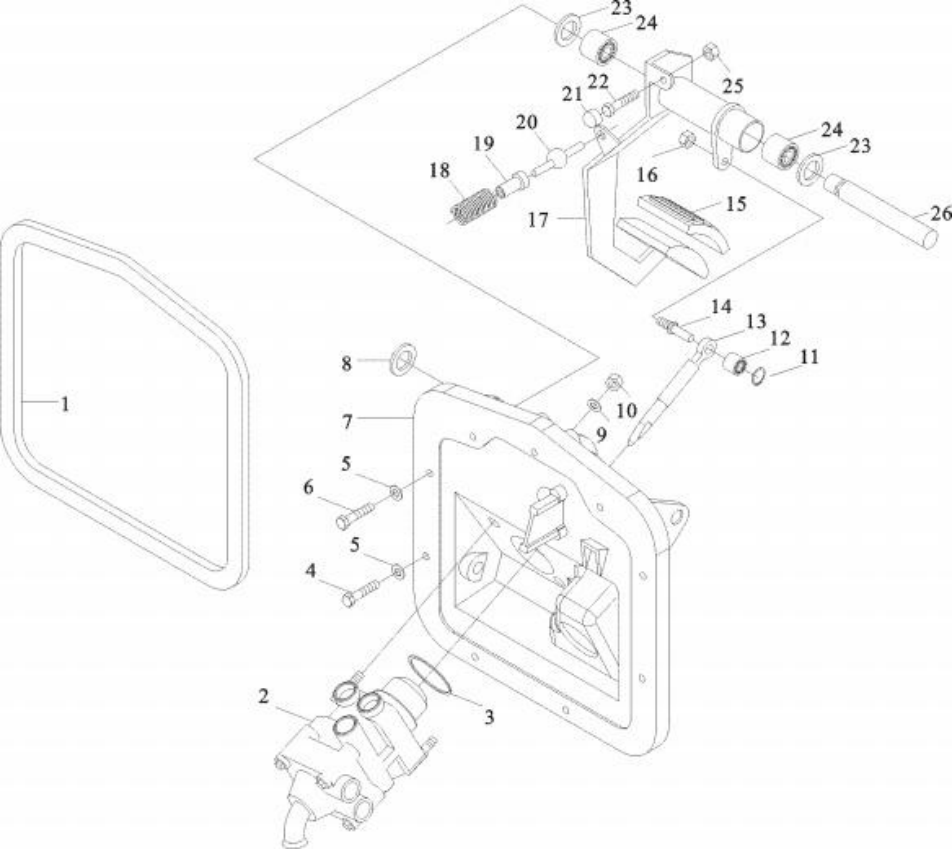

| 1 | 81.96601.0659 | Pad pad | 1 | ||||
| 2 | DZ9100360080 | Air brake valve | 1 | ||||
| 3 | 06.56341.1241 | Toric seal | 1 | ||||
| 4 | 06.07069.0008 | Hexagonal bolt with groove and ring | 7 |
||||
| 5 | 06.15013.0411 | Gasket | 9 | ||||
| 6 | 06.07069.0011 | Hexagonal bolt with groove and ring | 2 |
||||
| 7 | 81.48220.0106 | Seat bracket | 1 | ||||
| 8 | 06.29050.0116 | Gasket | 1 | ||||
| 9 | 06.15013.0411 | Gasket | 2 | ||||
| 10 | 06.11064.2114 | hex nut | 2 | ||||
| 11 | 06.29050.0111 | Retaining ring | 1 | ||||
| 12 | 06.33719.0018 | needle roller bearing | 1 | ||||
| 13 | 81.91020.0610 | Strut | 1 | ||||
| 14 | 81.91020.0611 | Threaded pin | 1 | ||||
| 15 | 81.48227.0006 | Pedal dust cover | 1 | ||||
| 1617 | 06.11240.0406 81.48235.5033 |
Hexagonal locking nut Brake pedal assembly |
1 1 |
||||
| 18 | 06.46081.6338 | compression spring | 1 | ||||
| 19 | 81.97680.0019 | spring seat | 1 | ||||
| 20 | 81.48225.0029 | Ball sales | 1 | ||||
| 21 | 81.96020.0369 | rubber pad | 1 | ||||
| 22 | 06.01283.3115 | hex bolt | 1 | ||||
| 23 | 06.15114.0418 | Adjust the gasket | 2 | ||||
| 24 | 06.33719.0005 | needle roller bearing | 2 | ||||
| 25 | 06.11064.2114 | hex nut | 1 | ||||
