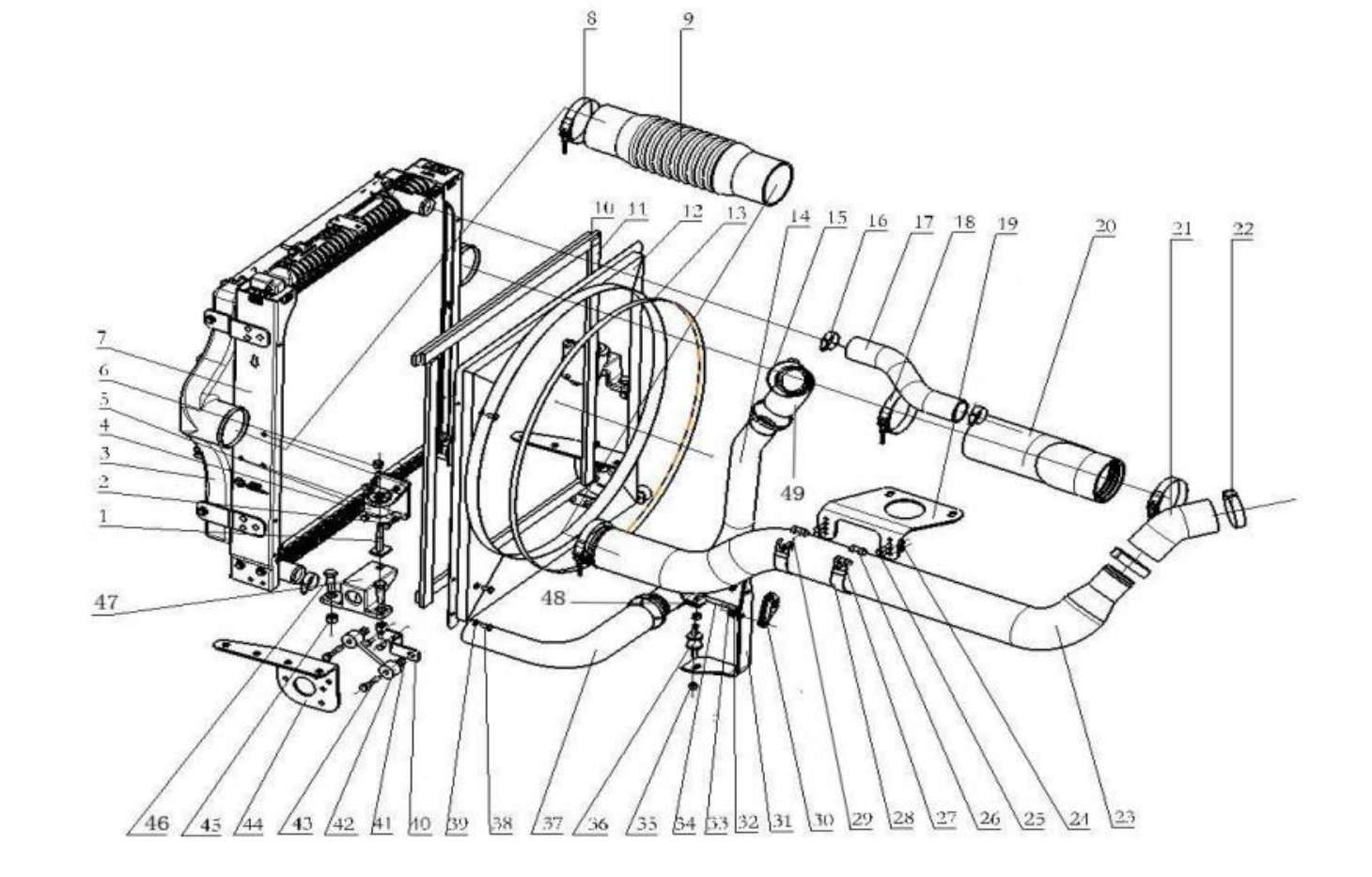

SHACMAN NEW M3000 COOLER SYSTEM/WP10/NEWM3000/850 FRAME-2

By ALEX-86 16215315999 November 21st, 2025 200 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

1	DZ9112538040	square head bolt	2
2	Q150B0816	hex head bolt	8
3	DZ96259531020	Intercooler assembly	1
4	Q40308	spring washer	8
5	81.06225.6008	Radiator bracket assembly	2
6	06.11240.0411	Hexagonal locking nut	2
7	DZ96259532020	Radiator Assembly	1
8	DZ9003532115	T-shaped clamp	4
9	DZ93259535315	Inner fluorine outer silicone tube	1
10	DZ91259537012	Sponge sealing strip	2
11	DZ91259537011	Sponge sealing strip	2
12	DZ96259536013	Windshield assembly	1
13	DZ91259538601	Worm driven hose clamp	1
14	DZ96259534002	Radiator outlet pipe	1
15	Q67683	B-type worm drive type hose clamp	3
16	Q67664	B-type worm drive type hose clamp	3
17	DZ96259535018	Radiator inlet hose	1
18	DZ9003532115	T-shaped clamp	2
19	DZ93259538061	fixed bracket	1
20	DZ96259535020	Outlet pipe of intercooler	1
21		Turbocharger connection (Weichai belt)	1
22	DZ9003532084	T-shaped clamp	2
23	DZ96259534014	Inlet pipe of intercooler	1
24	Q150B0820	hex head bolt	4
25	Q33208	hex head nut	4
26	DZ9100530053	Tensioning pin	2
27	DZ9100530052	Tighten the pin	2
28	DZ9100530051	Clamp strap	2
29	Q218B0860	Hexagonal socket head screw	2
30	DZ93259538077	Bracket cushion block	1
31	DZ96259538000	Drainage pipe bracket	1
32	Q40110	flat washer	2
33	Q40310	spring washer	2
34	Q150B1090	hex head bolt	1
	Q150B1030	hex head bolt	1
35	Q33210	hex head nut	2
36	DZ93259537002	buffer block	1
37	DZ96259535017	Radiator outlet hose	1
38	Q150B0816	hex head bolt	6
39	Q40308	spring washer	6
40	DZ96259538027 DZ96259538028	Left connecting plate	11
		Right connecting plate
41	Q33210	hex head nut	4
42	81.06245.0043	Swing support assembly	2
43	Q150B1050	hex head bolt	4
44	DZ95259538072	Lower right bracket	2
45	Q32214	hex head nut	4
46	Q40214	large washer	4
	Q150B1445	Hexagonal head bolt\|	4
47	DZ96259538019	Left bracket of radiator	1
	DZ96259538020	Right bracket for radiator	1
48	DZ93259538605	Water pipe clamp	1
49	DZ93259535804	Variable diameter silicone tubing 55-60	1
