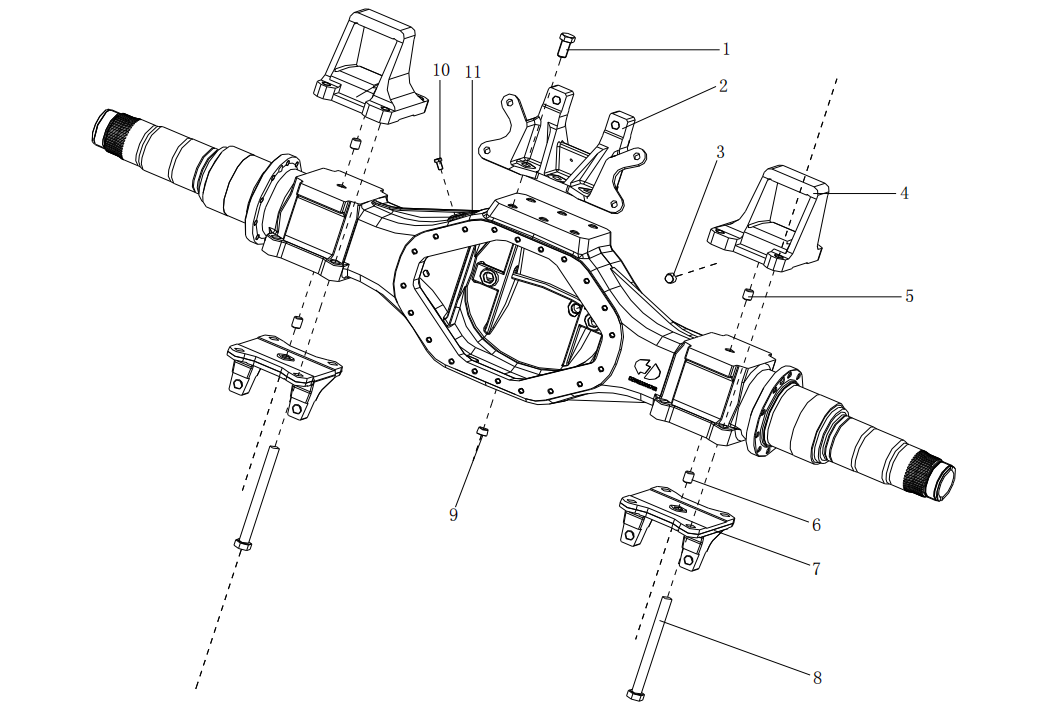

| 1 | Q151B2040TF52 | hex head bolt | 6 | ||||||||||||||||||||
| 2 | 199014340042 | Air chamber bracket | 1 | ||||||||||||||||||||
| 3 | 81.90310.0179 | Thread blockage | 1 | ||||||||||||||||||||
| 4 | DZ9114524037 DZ9114524038 DZ9114524122 DZ9114524121 |
Rear panel spring left rear bracket (high horse pedal) Rear panel spring right rear bracket (high horse pedal) Rear panel spring left rear bracket (low pedal) Rear panel spring right rear bracket (low pedaling) |
1 1 1 1 |
select select |
|||||||||||||||||||
| 5 | 199014520256 | sales | 2 | ||||||||||||||||||||
| 6 | 190003901905 | Cylindrical sales - GB119 A20 * 24 sales | 2 | ||||||||||||||||||||
| 7 | DZ9114520307 DZ9114520308 |
Left bracket right bracket |
1 1 |
||||||||||||||||||||
| 8 | DZ9114520119 | hex head bolt | 8 | ||||||||||||||||||||
| 9 | 81.90301.0025 | oil clog | 1 | ||||||||||||||||||||
| 10 | 81.35306.0034 | straight connector | 1 | ||||||||||||||||||||
| 11 | DZ9112330875 | Rear axle housing assembly (friction welding) | 1 | (Casting bridge shell 1860 wheel track) | |||||||||||||||||||
| DZ9112330882 | Rear axle housing assembly (plug welding) | 1 | (Casting bridge shell 1860 wheel track) | ||||||||||||||||||||
