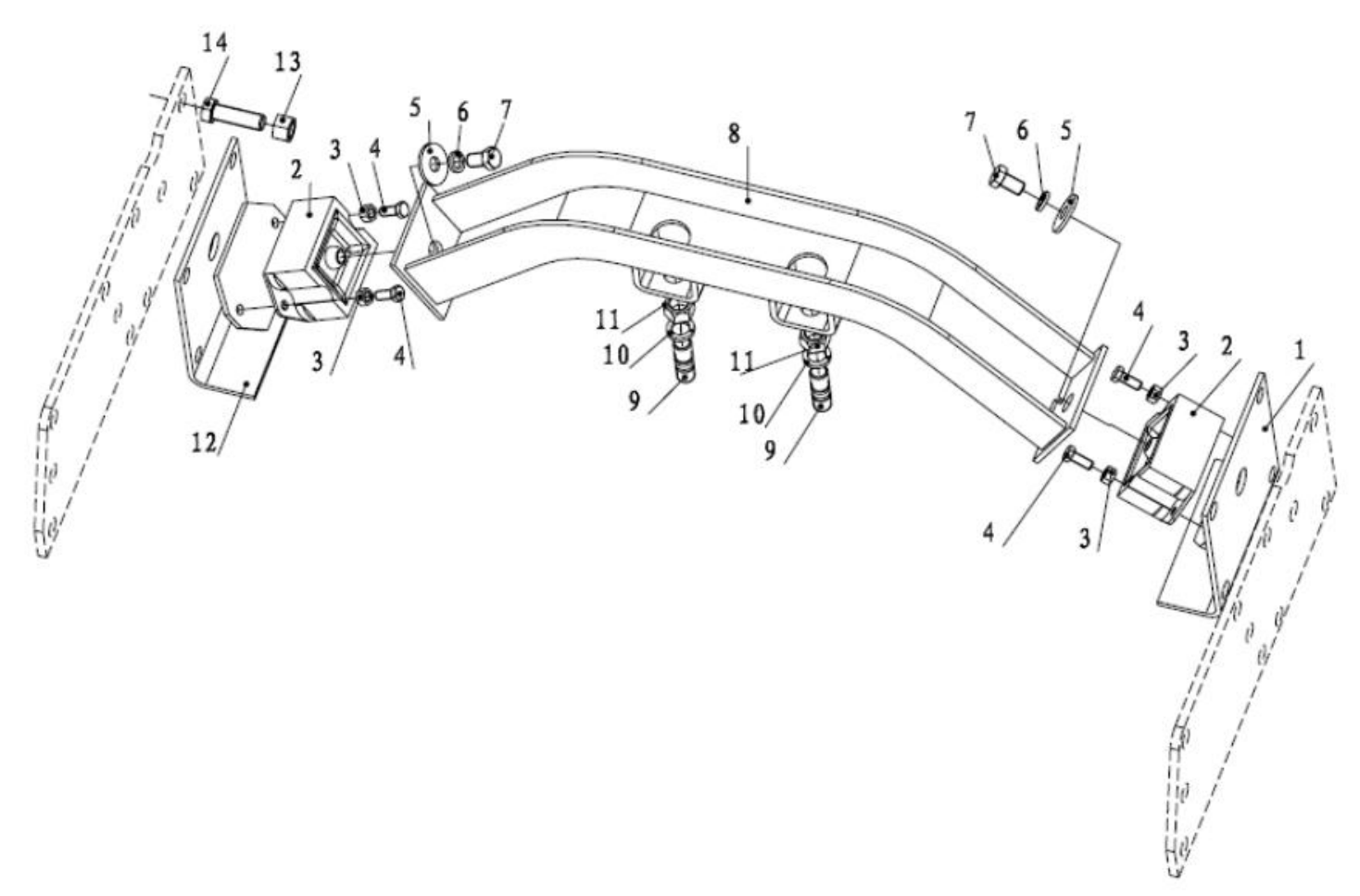

| 1 | SZ930000005 | Left bracket assembly | 1 | SX4257GR324 | WP10EGR engine | |||||||||
| 2 | 168000590095 | Engine front support (rubber metal support) | 2 | |||||||||||
| 3 | Q33208 | Type 2 all metal hexagonal lock nut | 4 | |||||||||||
| 4 | Q150B0825Q | hex head bolt | 4 | |||||||||||
| 5 | 1480A0360058 | washer | 2 | |||||||||||
| 6 | Q40312 | spring washer | 2 | |||||||||||
| 7 | Q150B1220Q | hex head bolt | 2 | |||||||||||
| 8 | 199112590100 | Beam assembly | 1 | |||||||||||
| 9 | Q1231630 | double-ended stud | 2 | Equipped with a gearbox belt | ||||||||||
| 10 | Q40316 | spring washer | 2 | Equipped with a gearbox belt | ||||||||||
| 11 | Q341B16 | Type 1 hex nut | 2 | Equipped with a gearbox belt | ||||||||||
| 12 | SZ930000007 | Right bracket assembly | 1 | |||||||||||
| 13 | Q33214 | Type 2 all metal hexagonal lock nut | 8 | |||||||||||
| 14 | Q150B01445Q | hex head bolt | 8 | |||||||||||
