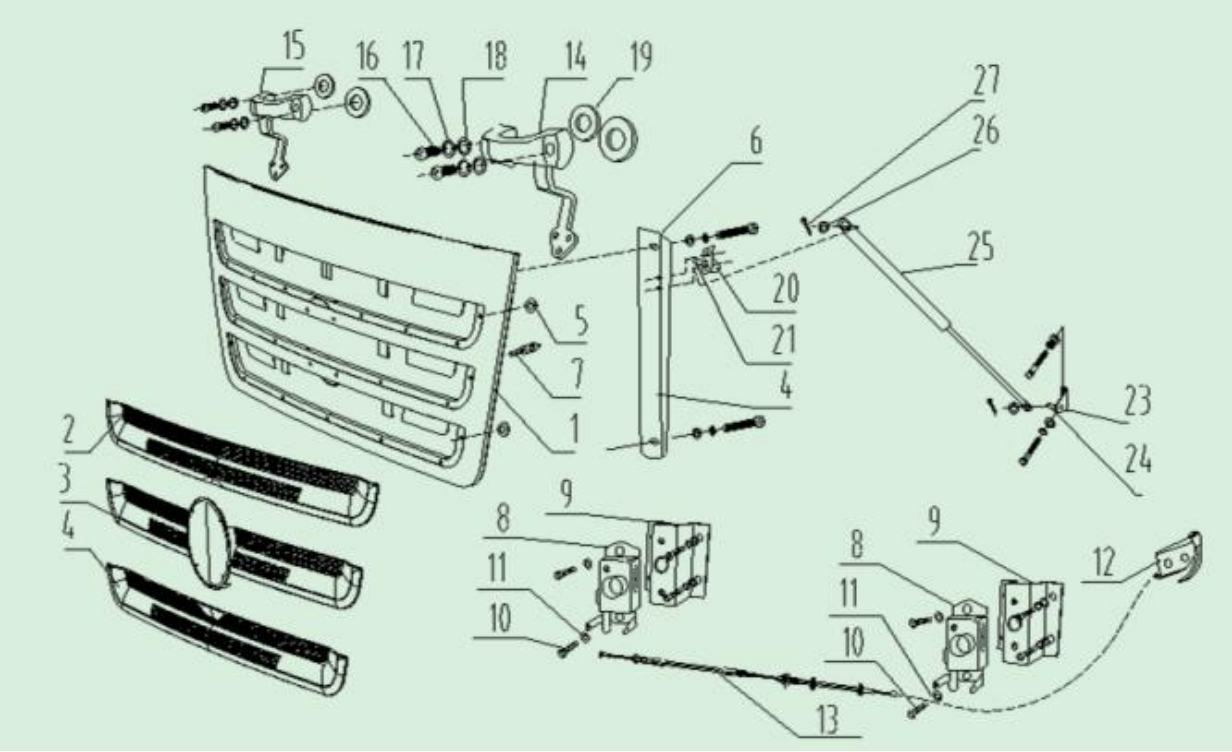

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts| 1 | PW10G/53-01571 | front panel | 1 | |||||||
| 2 | PW10G/53-01573 | Upper grille - front panel | 1 | |||||||
| 3 | PW10G/53-01574 | Middle grille - front panel | 1 | |||||||
| 4 | PW10G/53-01575 | Lower grille - front panel | 1 | |||||||
| 5 | PW21 | Fixed card | 18 | |||||||
| 6 | PW21TG7/53-01580 | Panel skeleton assembly | 1 | |||||||
| 7 | PW21TG | locking pin | 2 | |||||||
| 8 | PW08SY/53-01610 | Lock seat assembly | 2 | |||||||
| 9 | PW08SY/53-01611 | Lock seat bracket | 2 | |||||||
| 10 | Q2540620 | Cross groove countersunk head screw | 4 | |||||||
| 11 | Toothed washer | 4 | ||||||||
| 12 | PW08SY/53-01610 | Panel lock assembly | 1 | |||||||
| 13 | PW21TG/53 | Wire drawing assembly | 1 | |||||||
| 14 | PW21TGA/84-07010 | Left front armrest assembly and connecting plate | 1 | |||||||
| 15 | PW21TGA/84-07020 | Right front armrest assembly and connecting plate | 1 | |||||||
| 16 | Q15080830 | bolt | 4 | |||||||
| 17 | Q40308 | spring washer | 4 | |||||||
| 18 | Q40208 | flat washer | 4 | |||||||
| 19 | Q40208 | flat washer | 4 | |||||||
| 20 | PW21/53-01623 | Gas spring bracket | 1 | |||||||
| 21 | PW21/53-01628 | pin shaft | 1 | |||||||
| 22 | PW21/53-01627 | Gas spring lower bracket assembly | 1 | |||||||
| 23 | PW21/53-01628 | Gas spring lower bracket | 1 | |||||||
| 24 | PW21/53-01628 | pin shaft | 1 | |||||||
| 25 | PW21C-A | Gas spring assembly | 1 | |||||||
| 26 | Q40108 | flat washer | 2 | |||||||
| 27 | φ2.5×20 | cotter pin | 2 | |||||||
