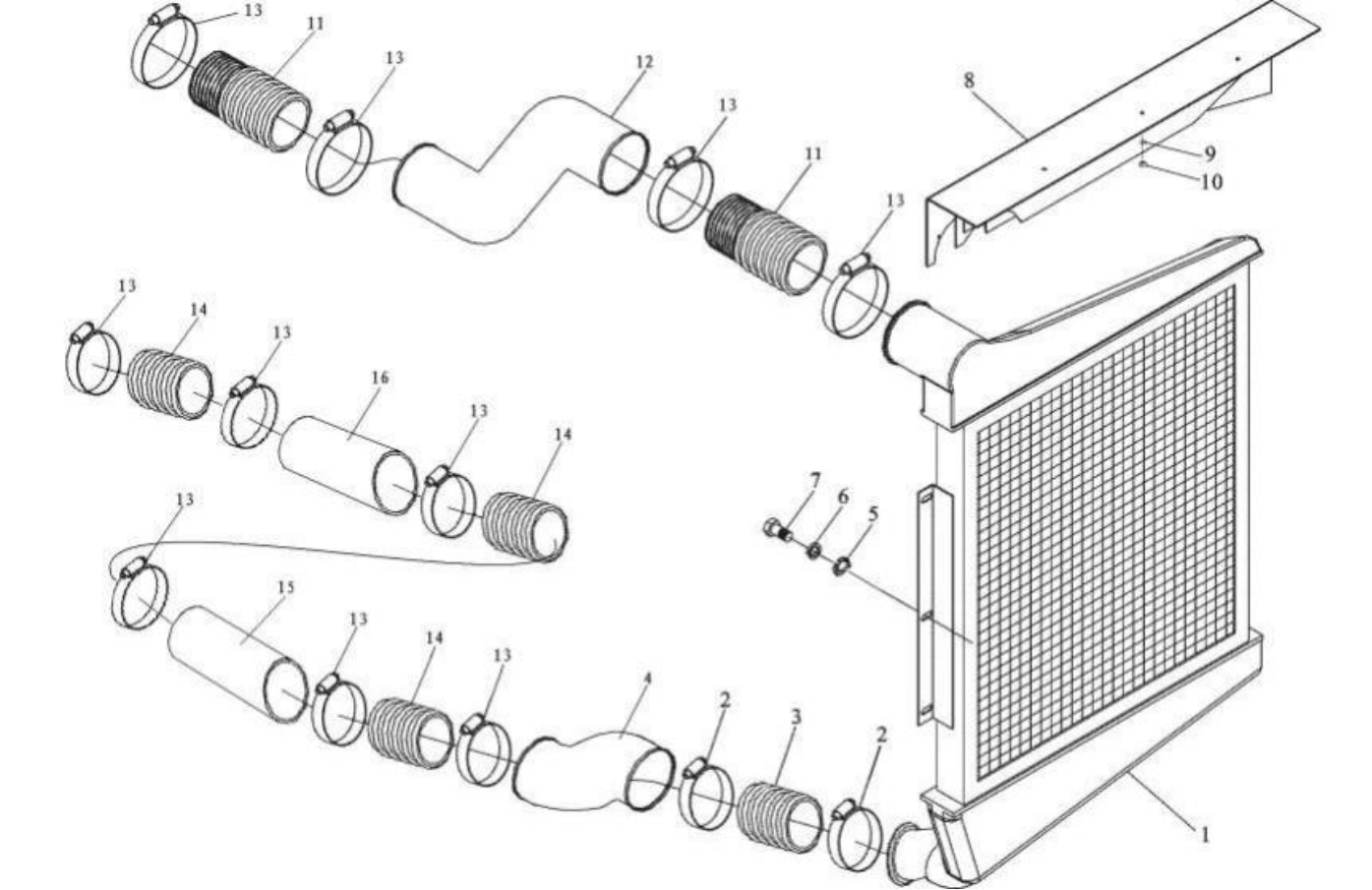

| 1 | DZ9112539268 | Turbocharged intercooler | WP10 、270 WP10.290 engine |
|||||
| 2 | DZ9003532128 | T-shaped clamp | ||||||
| 3 | DZ9112530007 | silicone tube | ||||||
| 4 | 199112530047 | Inlet pipe of intercooler | ||||||
| 5 | Q40008 | Small gasket | ||||||
| 6 | Q41208 | External serrated locking washer | ||||||
| 7 | Q150B0816 | hex head bolt | ||||||
| 8 | 199112530193 | Shield assembly | ||||||
| 9 | 190003844558 | Hexagonal head self tapping screw - self tapping screw | ||||||
| 10 | 1-99-974-237 | tripod | ||||||
| 11 | DZ9112530002 | silicone tube | ||||||
| 12 | DZ9112531404 | Outlet pipe of intercooler | ||||||
| 13 | DZ9003532115 | T-shaped clamp | ||||||
| 14 | DZ9112530003 | silicone tube | ||||||
| 15 | DZ9118532002 | Mid cooling period intake pipe 1 | ||||||
| 16 | DZ9118532003 | Intercooler inlet pipe | ||||||
