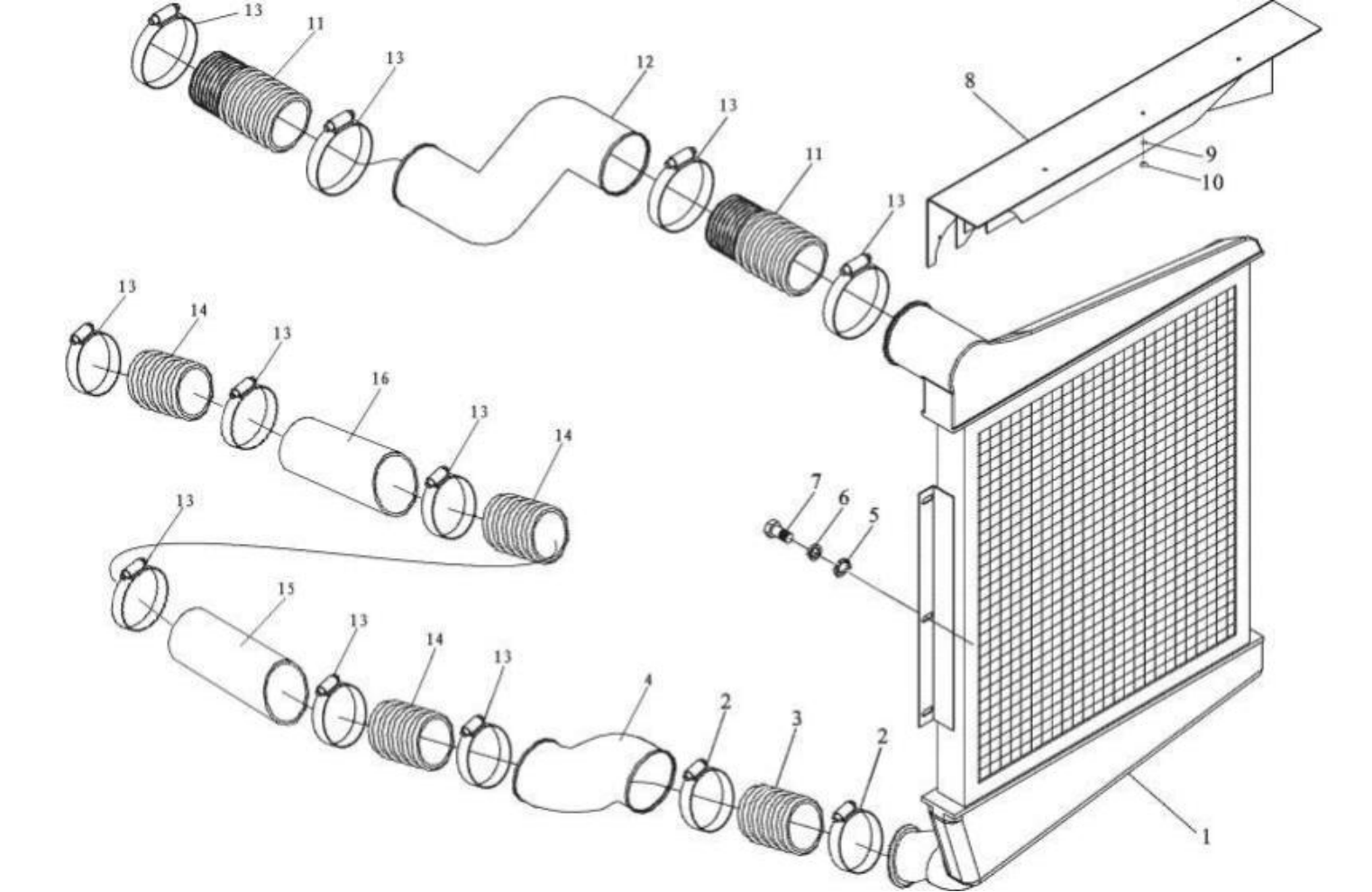

| 1 | DZ91259531101 | Turbocharged intercooler | 1 | WP10.270 | ||||||||
| 2 | DZ9003532128 | T-shaped clamp | 2 | WP10.290 | ||||||||
| 3 | DZ9112530007 | silicone tube | 1 | engine | ||||||||
| 4 | 199112530047 | Inlet pipe of intercooler | 1 | |||||||||
| 5 | Q40008 | Small gasket | 6 | |||||||||
| 6 | Q41208 | External serrated locking washer | 6 | |||||||||
| 7 | Q150B0816 | hex head bolt | 6 | |||||||||
| 8 | 199112530193 | Shield assembly | 1 | |||||||||
| 9 | 190003844558 | Hexagonal head self tapping screw - self tapping screw | 4 | |||||||||
| 10 | 1-99-974-237 | nail | 1 | |||||||||
| 11 | DZ9112530002 | tripod | 2 | |||||||||
| 12 | 199112530302 | silicone tube | 1 | |||||||||
| 13 | DZ9003532115 | Outlet pipe of intercooler | 10 | |||||||||
| 14 | DZ9112530003 | T-shaped clamp | 3 | |||||||||
| 15 | 199112530049 | silicone tube | 1 | |||||||||
| 16 | 199112530008 | Inlet pipe of intercooler Inlet pipe of intercooler |
1 | |||||||||
