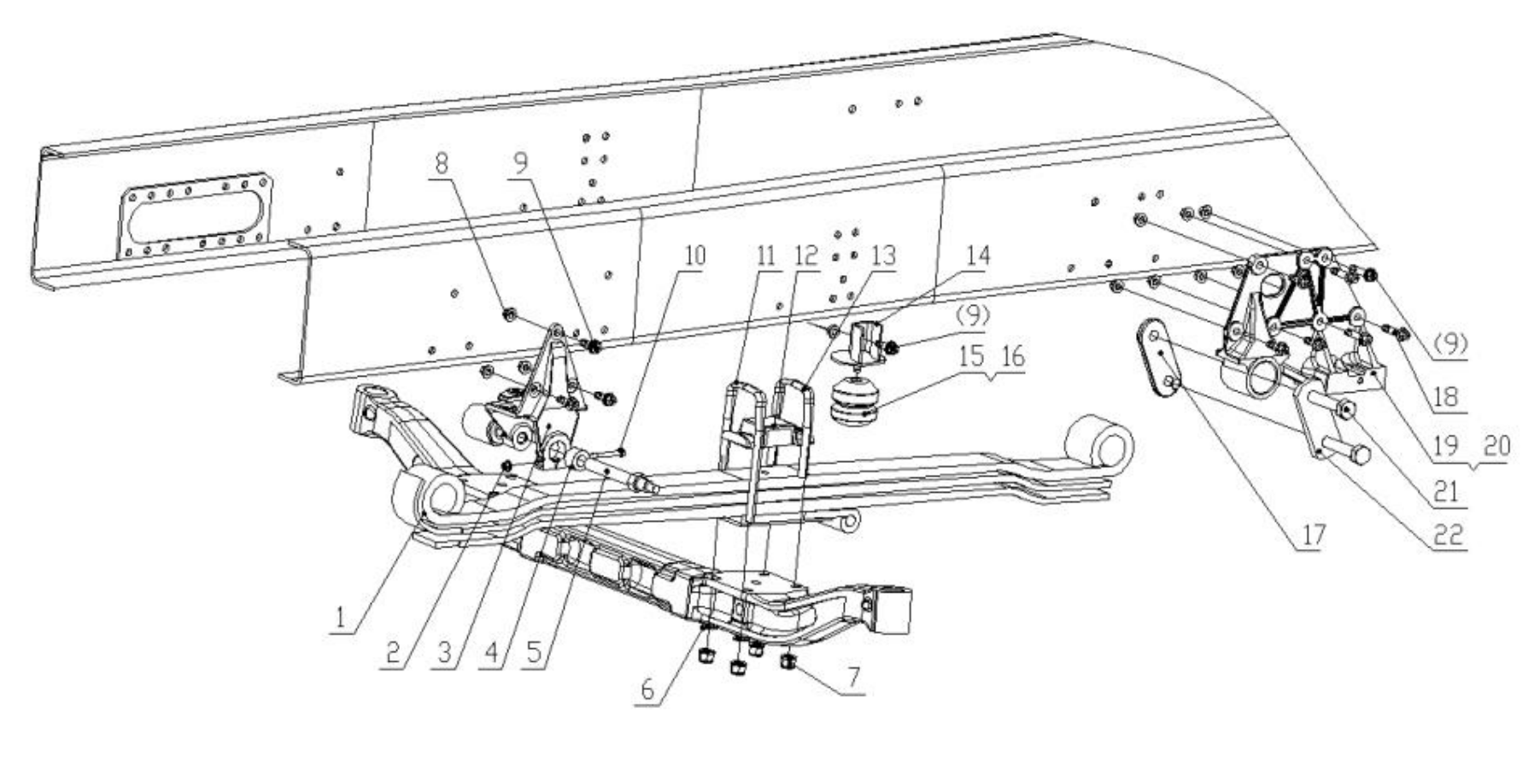

| 1 | 81.43402.6142 | Front leaf spring assembly | 2 | ||||||||||
| 2 | Q33010T13F2 | All metal hexagonal flange locking nut | 2 | ||||||||||
| 3 | DZ91259521410 | Front spring front bracket | 2 | ||||||||||
| 4 | 81.41304.0053 | bushing | 2 | ||||||||||
| 5 | 06.02839.0021 | hex head bolt M24*2*160 | 1 | ||||||||||
| 6 | 06.15150.2112 | shim | 4 | ||||||||||
| 7 | 06.11289.0003 | Shoulder nut | 8 | ||||||||||
| 8 | 06.11251.2005 | hex nut M7.112.40 M14*1.5-10-MAN183B1 Equipped with flange bolts |
24 | ||||||||||
| 9 | Q1811440TF2 | Hexagonal flange bearing face toothed bolt - fine tooth | 16 | ||||||||||
| 10 | Q150B1090TF2 | hex head bolt | 2 | ||||||||||
| 11 | DZ95259521275 | Front spring saddle bolt | 2 | ||||||||||
| 12 | 188000520002 | Front spring pressure plate | 2 | ||||||||||
| 13 | 199014520259 | Front spring saddle bolt | 2 | ||||||||||
| 14 | DZ91189521430 | Limit bracket assembly | 2 | ||||||||||
| 15 | 81.96020.6013 | Hollow rubber buffer block | 2 | ||||||||||
| 16 | 190003888457 | self-locking nut | 2 | ||||||||||
| 17 | 81.41303.0079 | Leaf spring connecting plate (with thread) | 2 | ||||||||||
| 18 | Q1811460TF2 | Hexagonal flange bearing face toothed bolt - fine tooth | 8 | ||||||||||
| 19 | DZ91189521413 | Front spring left rear bracket assembly | 1 | ||||||||||
| 20 | DZ91189521414 | Front spring right rear bracket assembly | 1 | ||||||||||
| 21 | 06.02839.0012 | hex head bolt M24*2*140 | 5 | ||||||||||
| 22 | 81.41303.0080 | Leaf spring connecting plate (without threads) | 1 | ||||||||||
