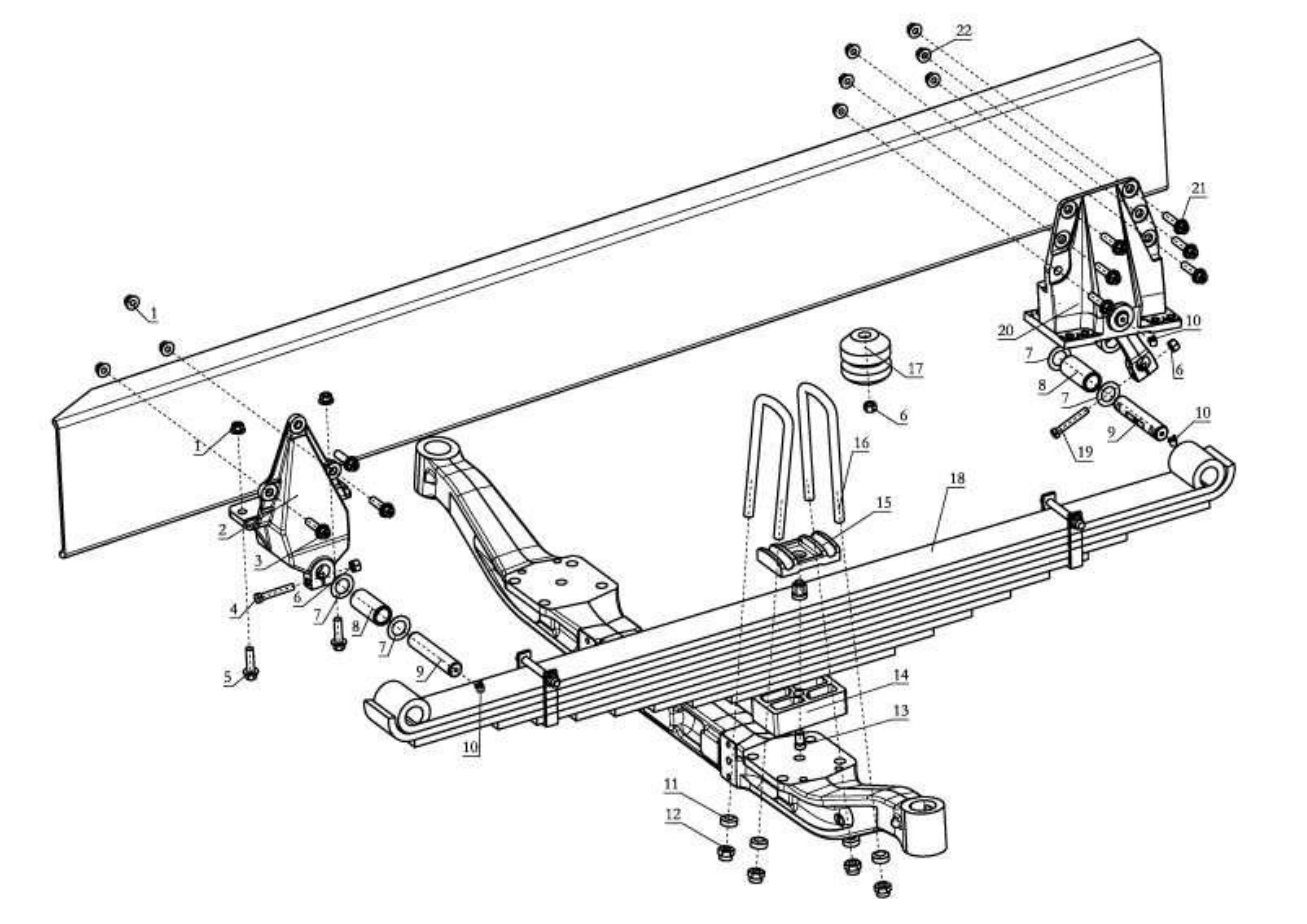

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts| 1 | 190003888458 | self-locking nut | 10 | ||||||||||||
| 2 | DZ9114520013 | Front spring front bracket | 2 | ||||||||||||
| 3 | Q151B1465 | Hex head bolt - fine tooth | 6 | ||||||||||||
| 4 | Q151C1275 | Hex head bolt - fine tooth | 2 | ||||||||||||
| 5 | Q151B1450 | Hex head bolt - fine tooth | 4 | ||||||||||||
| 6 | 188000520019 | fastener | 2 | ||||||||||||
| 7 | Q340B10 | Type 1 hex nut | 2 | ||||||||||||
| Q40310 | spring washer | 2 | |||||||||||||
| 168000520050 | washer | 8 | |||||||||||||
| 8 | 199000520078 | bushing | 4 | ||||||||||||
| 9 | 199100520065 | spring pin | 4 | ||||||||||||
| 10 | 190003963124 190003963127 |
Metric taper thread grease nozzle Metric taper thread grease nozzle |
3 3 |
||||||||||||
| 11 | 168000520056 | washer | 8 | ||||||||||||
| 12 | 190003888626 | self-locking nut | 8 | ||||||||||||
| 15 | 188000520002 | Front spring pressure plate | 2 | ||||||||||||
| 16 | 188000520001 | Front spring saddle bolt | 4 | ||||||||||||
| 17 | 188000520017 | Front spring limit block | 2 | ||||||||||||
| 18 | AZ9100520002 AZ9100520042 |
Front left steel plate spring assembly Front right steel plate spring assembly |
1 1 |
||||||||||||
| 19 | Q151C1270 | Hex head bolt - fine tooth | 2 | ||||||||||||
| 20 | DZ9214520014 DZ9114520120 |
Front spring left rear bracket sub assembly Front spring right rear bracket sub assembly |
1 1 |
||||||||||||
| 21 | Q151B1650 | Hex head bolt - fine tooth | 12 | ||||||||||||
| 22 | 190003888459 | self-locking nut | 12 | ||||||||||||
