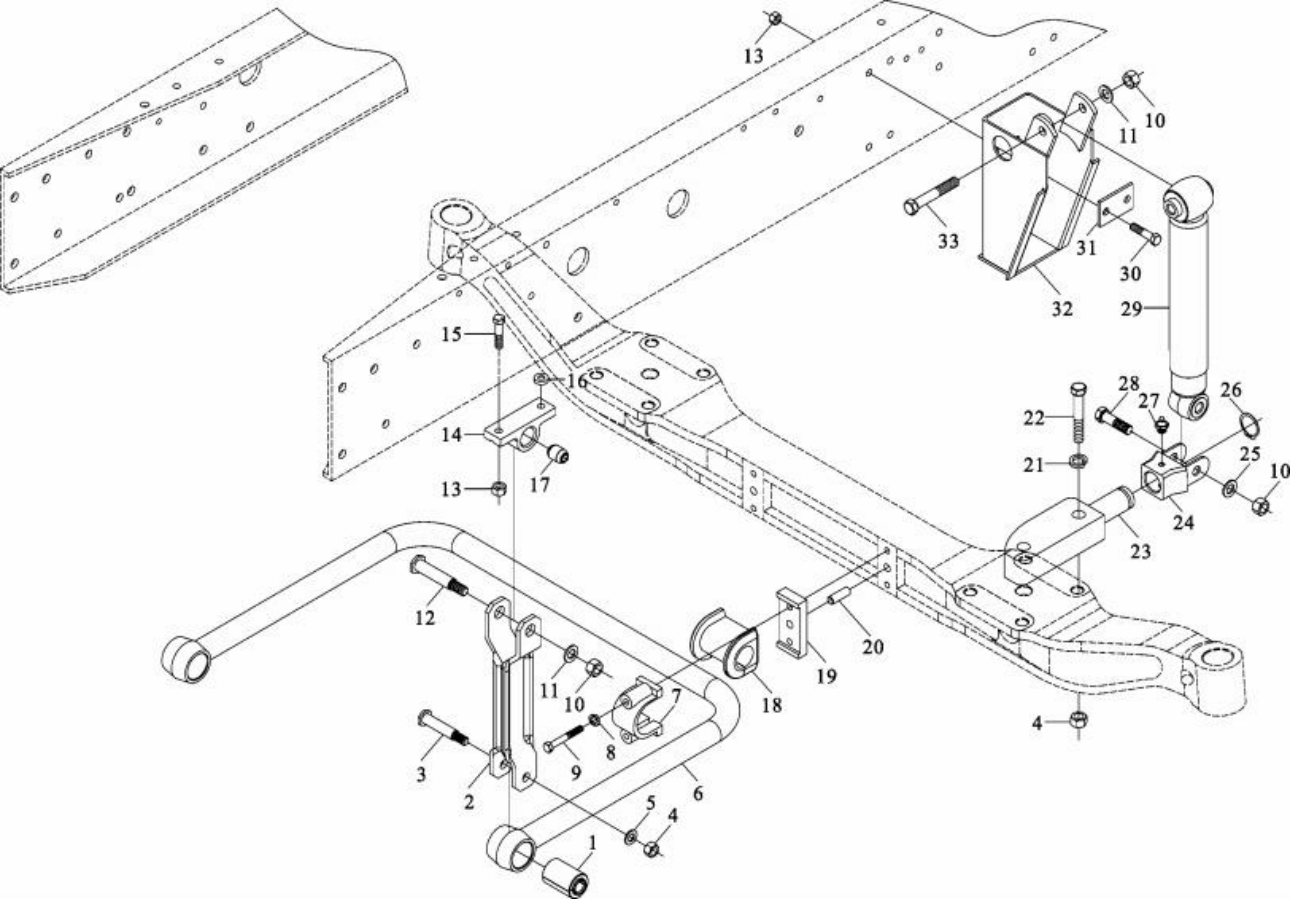

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts| 1 | 199100680054 | Shaft sleeve assembly | 2 | ||||||||||||
| 2 | DZ9118681345 | Hanging board assembly | 2 | ||||||||||||
| 3 | 199100680069 | Bolt | 2 | ||||||||||||
| 4 | 190003888458 | self-locking nut | 2 | ||||||||||||
| 5 | 190003930291 | flat washer | 2 | ||||||||||||
| 6 | DZ9100680050 | stabilizer bar | 1 | ||||||||||||
| 7 | DZ9100680024 | fixed splint | 2 | ||||||||||||
| 8 | 190003931122 | spring washer | 4 | ||||||||||||
| 9 | 190003802578 | Bolt | 4 | ||||||||||||
| 10 | 190003888459 | self-locking nut | 4 | ||||||||||||
| 11 | 19003930301 | small washer | 4 | ||||||||||||
| 12 | 199100680057 | Bolt | 2 | ||||||||||||
| 13 | 190006888457 | self-locking nut | 12 | ||||||||||||
| 14 | DZ9200680015 DZ9200680017 |
Left stabilizer bar bracket assembly Right stabilizer bar bracket assembly |
1 1 |
||||||||||||
| 15 | 190003803646 | hex head bolt | 4 | ||||||||||||
| 16 | DZ9100680015 | Gasket | 2 | ||||||||||||
| 17 | 199100680054 | Lining | 2 | ||||||||||||
| 18 | 199100680068 | Rubber bearings | 2 | ||||||||||||
| 19 | 188000680027 | Pad board | 2 | ||||||||||||
| 20 | 190003901700 | cylindrical pin | 2 | ||||||||||||
| 21 | 190003931182 | spring washer | 4 | ||||||||||||
| 22 | 190003803844 | Bolt | 4 | ||||||||||||
| 23 | 199100680065 | Connecting fork support | 2 | ||||||||||||
