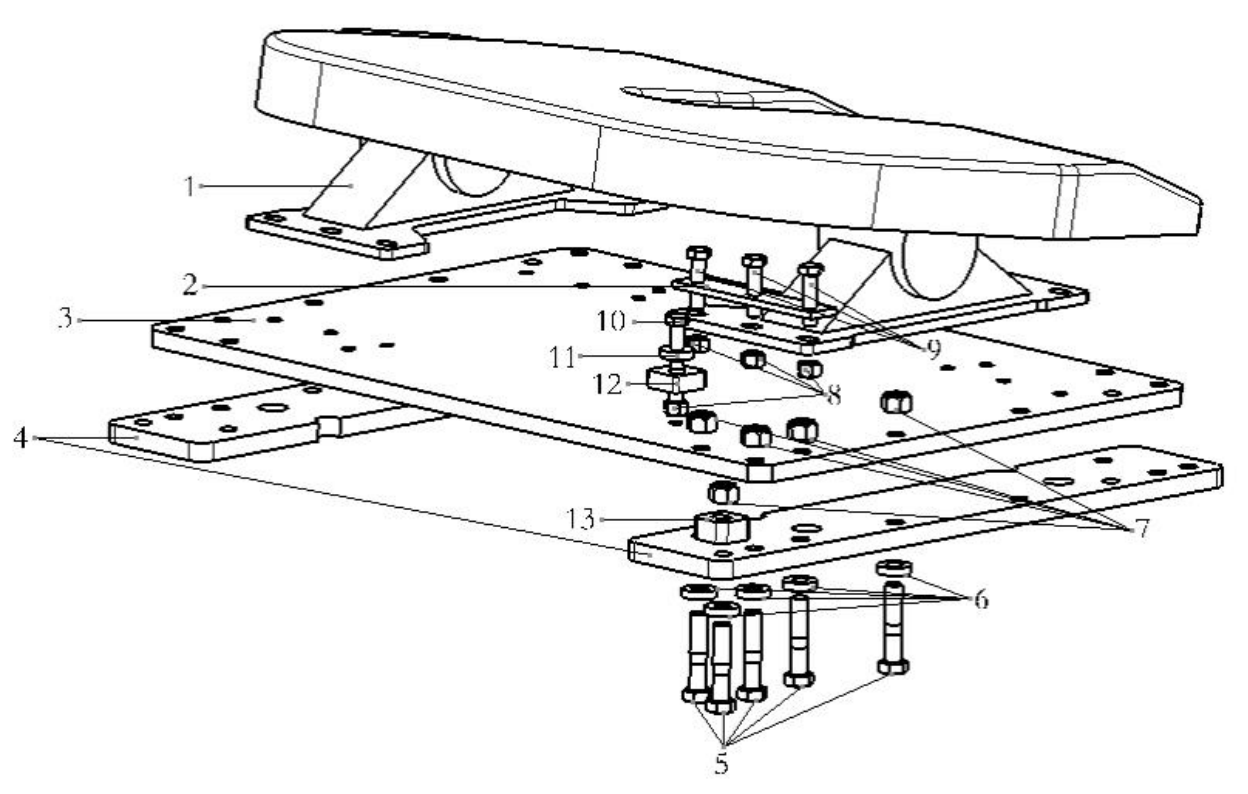

| 1 | DZ91259930012 199114930076 |
90 reinforced saddle Saddle device (single swing 90) |
11 | SX4187NR361 SX4257NR324 |
Enhanced Version | |||||||||
| 2 | 199114930116 | lower crossbeam | 4 | |||||||||||
| 3 | DZ93259933022 | Saddle mounting plate | 1 | |||||||||||
| 4 | DZ93259933021 | Install the plate pad | 2 | |||||||||||
| 5 | Q151B2090 | hex head bolt | 20 | |||||||||||
| 6 | DZ9112510037 | washer | 20 | |||||||||||
| 7 | 190003888467 | self-locking nut | 20 | |||||||||||
| 8 | 190003888459 | self-locking nut | 16 | |||||||||||
| 9 | Q151B1660 | hex head bolt | 12 | |||||||||||
| 10 | Q151B1690 | hex head bolt | 4 | |||||||||||
| 11 | 1-99-907-030 | washer | 4 | |||||||||||
| 12 | DZ93259933016 | stop block | 4 | |||||||||||
| 13 | DZ93259933015 | stop block | 4 | |||||||||||
