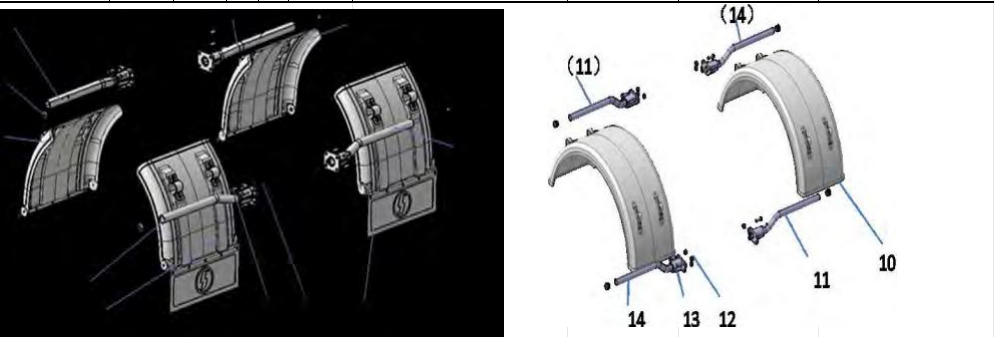

| 1 | DZ95259957034 | Right rear M split mudguard assembly | 1 | SX4257NR279 | ||||||||||||
| 2 | 06.11251.2005 | Type 2 all metal hexagonal lock nut | 16 | |||||||||||||
| 3 | Q1811440TF2 | Hexagonal flange bearing face toothed bolt - fine tooth | 16 | |||||||||||||
| 4 | DZ95259957033 | Left rear M split mudguard assembly | 1 | |||||||||||||
| 5 | SZ995000770 | Left rear mudguard bracket assembly | 2 | |||||||||||||
| 6 | DZ95259957031 | Left front M split mudguard assembly | 1 | |||||||||||||
| 7 | DZ93259955013 | plug | 4 | |||||||||||||
| 8 | SZ995000773 | Right rear mudguard bracket assembly | 2 | |||||||||||||
| 9 | DZ95259957032 | Right front M split mudguard assembly | 1 | |||||||||||||
| 10 | DZ91259952086 | Single wheel mudguard assembly | 2 | |||||||||||||
| 11 | DZ95259952080 | Front II axis left front bracket assembly | 2 | |||||||||||||
| 12 | Q33214 | Type 2 all metal hexagonal lock nut | 12 | |||||||||||||
| 13 | Q150B1445TF2 | hex head bolt | 12 | |||||||||||||
| 14 | DZ95259952090 | Front II axis right front bracket assembly | 2 | |||||||||||||
