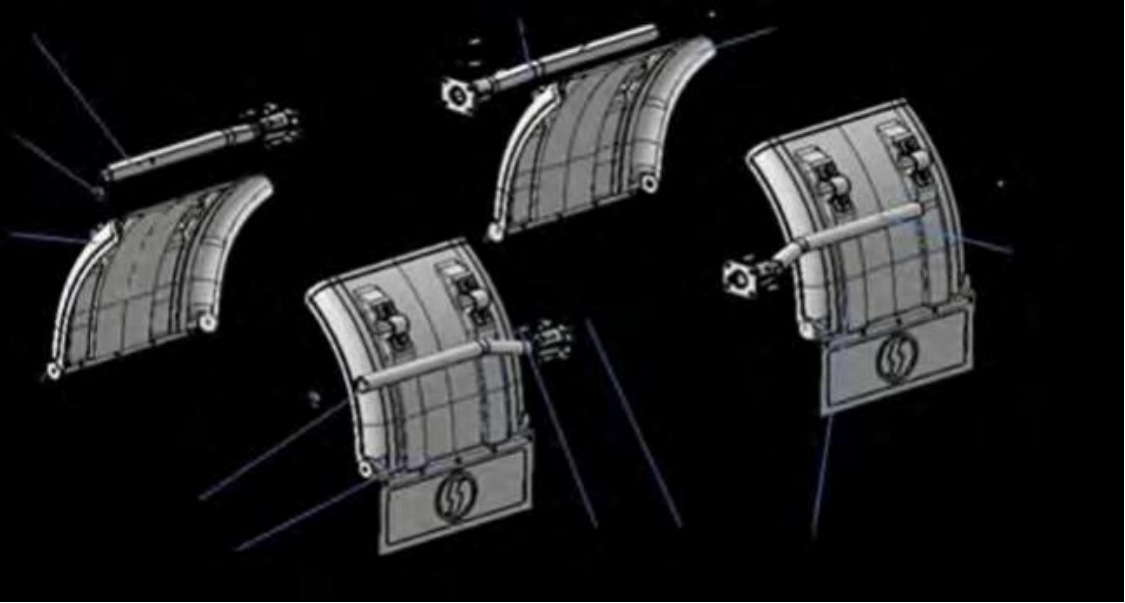

| 1 | DZ95259957034 | Right rear M split mudguard assembly | 1 | SX4187NM361 | ||||||||||||
| 2 | 06.11251.2005 | Type 2 all metal hexagonal lock nut | 16 | SX4257NR324 | ||||||||||||
| 3 | Q1811440TF2 | Hexagonal flange bearing face toothed bolt - fine tooth | 16 | SX4257NR324 | ||||||||||||
| 4 | DZ95259957033 | Left rear M split mudguard assembly | 1 | SX4257NT324 | ||||||||||||
| 5 | DZ95189957020 | Mudguard bracket assembly | 2 | |||||||||||||
| 6 | DZ95259957031 | Left front M split mudguard assembly | 1 | |||||||||||||
| 7 | DZ93259955013 | plug | 4 | |||||||||||||
| 8 | DZ95189957010 | Mudguard bracket assembly | 2 | |||||||||||||
| 9 | DZ95259957032 | Right front M split mudguard assembly | 1 | |||||||||||||
