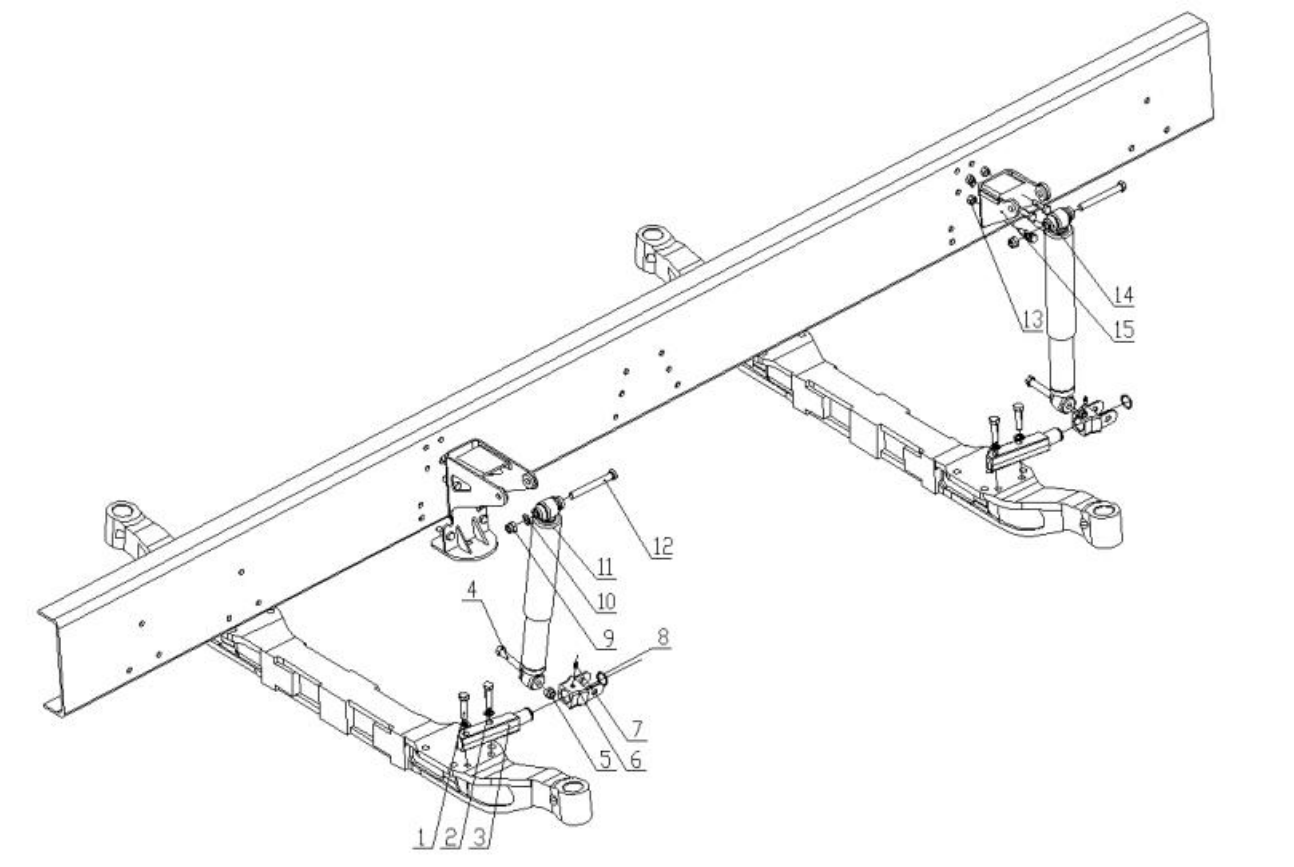

| 1 | Q151B1660 | Hexagonal head bolt - fine tooth | 8 | |||||||||
| 2 | Q40316 | spring washer | 8 | |||||||||
| 3 | DZ9100680065 | support | 4 | |||||||||
| 4 | 199012680009 | bolt | 4 | |||||||||
| 5 | 190003888459 | self-locking nut | 4 | |||||||||
| 6 | 199012680025 | Lower bracket connection fork | 4 | |||||||||
| 7 | 190003963112 | Metric taper thread grease nozzle | 4 | |||||||||
| 8 | 190003933242 | External Circlips | 4 | |||||||||
| 9 | 190003888459 | self-locking nut | 4 | |||||||||
| 10 | Q40016 | Small gasket | 4 | |||||||||
| 11 | DZ91319680001 | shock absorber | 4 | |||||||||
| 12 | DZ9100680038 | bolt | 4 | |||||||||
| 13 | 190003888458 | self-locking nut | 8 | |||||||||
| 14 | SZ967000736 | II axis shock absorber bracket assembly | 2 | |||||||||
| 15 | Q151B1445TF2 | Hexagonal head bolt - fine tooth | 8 | |||||||||
