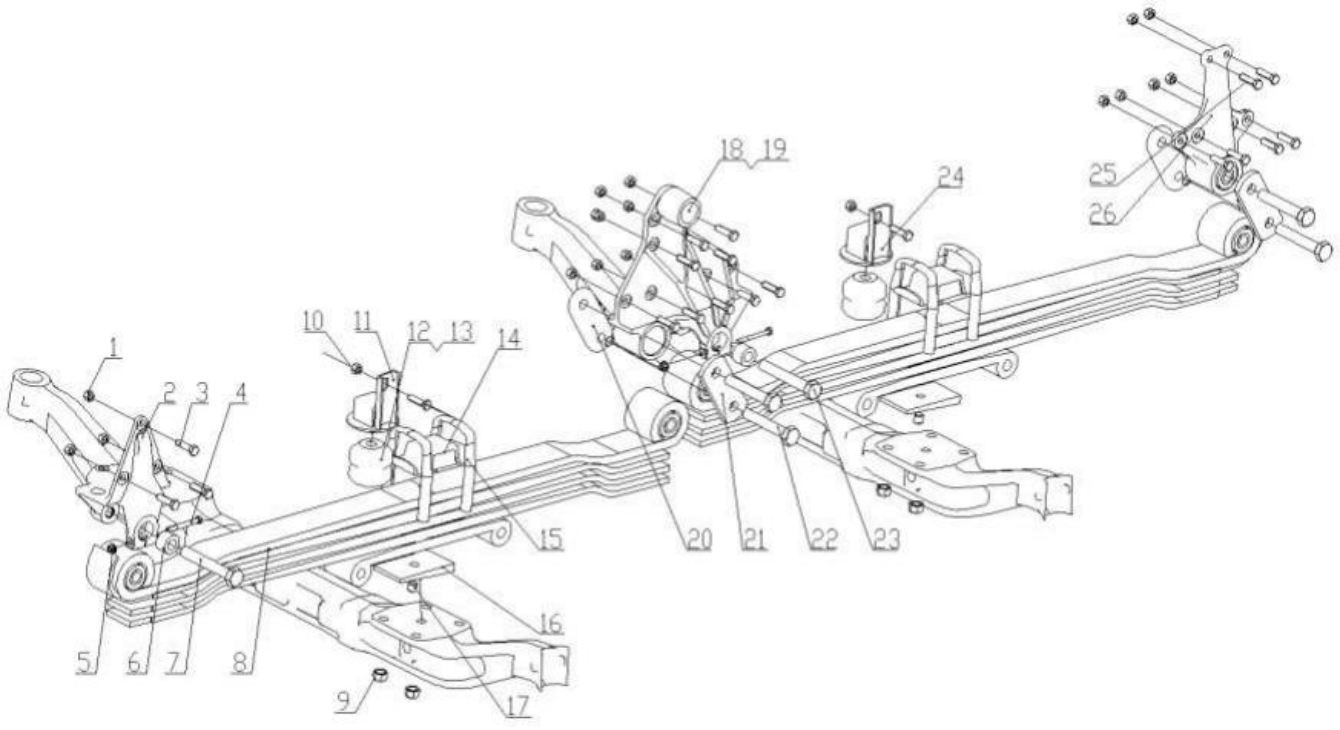

| 1 | 06.11251.2005 | Hexagonal nut M7.12.40 | 48 | SX4257NR279 | ||||||
| 2 | SZ970000848 | M14 * 1.5-10-MAN183B1 with flange bolts Front spring front bracket |
2 | lightweight) | ||||||
| 3 | 06.02813.4913 | hex head bolt M14X1.5X30-10.9-MAN183-B1 |
26 | |||||||
| 4 | Q150B1090TF2 | hex head bolt | 4 | |||||||
| 5 | Q33010T13F2 | All metal hexagonal flange locking nut | 4 | |||||||
| 6 | 81.41304.0053 | bushing | 4 | |||||||
| 7 | 81.90490.0622 | bolt | 1 | |||||||
| 8 | DZ95319521430 | Front steel plate spring assembly | 4 | |||||||
| 9 | 190003888626 | self-locking nut | 16 | |||||||
| 10 | 06.11251.2005 | Hexagonal nut M7.12.40 M14 * 1.5-10-MAN183B1 with flange bolt“ |
4 | |||||||
| 11 | SZ970000810 | Limit bracket assembly | 2 | |||||||
| 12 | 81.96020.6013 | Hollow rubber buffer block | 4 | |||||||
| 13 | 190003888457 | self-locking nut | 4 | |||||||
| 14 | 188000520002 | Front spring pressure plate | 4 | |||||||
| 15 | 199014520238 | Front spring saddle bolt | 8 | |||||||
| 16 | SZ970000004 | Spring wedge plate | 4 | |||||||
| 17 | DZ95259520006 | sales | 4 | |||||||
| 18 | DZ95319521610 | Front spring middle combination bracket assembly (left) | 1 | |||||||
| 19 | DZ95319521620 | Front spring middle combination bracket assembly (right) | 1 | |||||||
| 20 | 81.41303.0079 | Leaf spring connecting plate (with thread) | 4 | |||||||
| 21 | 81.41303.0080 | Leaf spring connecting plate (without threads) | 4 | |||||||
