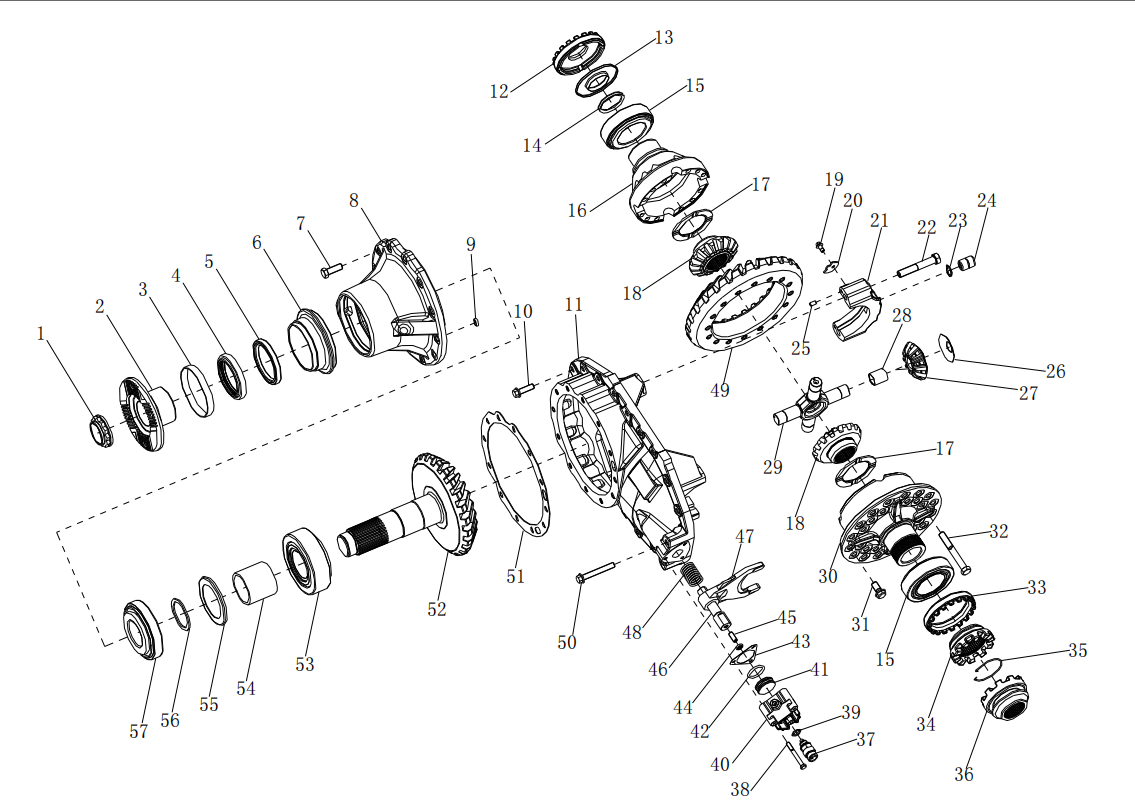

SHACMAN F2000 HDM SERIES DUAL STAGE DECELERATION DRIVE REAR AXLE MIDDLE SECTION-8

By ALEX-86 16215315999 June 5th, 2025 7 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

26	81.90711.0535	Plant gear washer	4	81.35107.6014 SPIDER ASSEMBLY （28 、39）
27	81.35108.0059	Plant gear	4
28	81.93020.0458	Bush	4
29	81.35107.0014	Cross axle	1
30	(a)81.35105.0023	Differential case	1	81.35100.6361 Differential case assembly （16 、30a 、32a）
	(b)81.35105.0031	Differential case	1
31	81.90490.0331	Hex bolt	16
32	(a)Q151B1490TF2	Hex bolt	12	81.35100.6360 Differential case assembly （16 、30b 、32b） used for Gear ratio：29/24=1.208 rear axle
	(b)Q151B14105TF2	Hex bolt	12
33	81.35125.0003	Adjusting nut	1
34	81.35202.0034	Fixed sleeve	1
35	81.90820.0091	Wire circlip for axle	1
36	81.35202.0033	Shift sleeve	1
37	81.25503.0244	Gearbox switch	1
38	Q150B0870	Hex bolt	3
39	190003098020	Packing ring	1
40	81.35631.0006	Shift cylinder	1
41	81.35634.0011	Plunger	1
42	06.56331.3274	O-ring	1
43	81.96601.0627	Gasket	1
44	Q350B10	Hex nut	1
45	Q2821025	Threaded pin	1
46	81.35619.0003	Selector shaft	1
47	81.35614.0006	Selector fork	1
48	81.97601.0689	Spring	1
49	81.35120.0530	Passive bevel gear	1	used for Gear ratio：27/12=2.25
