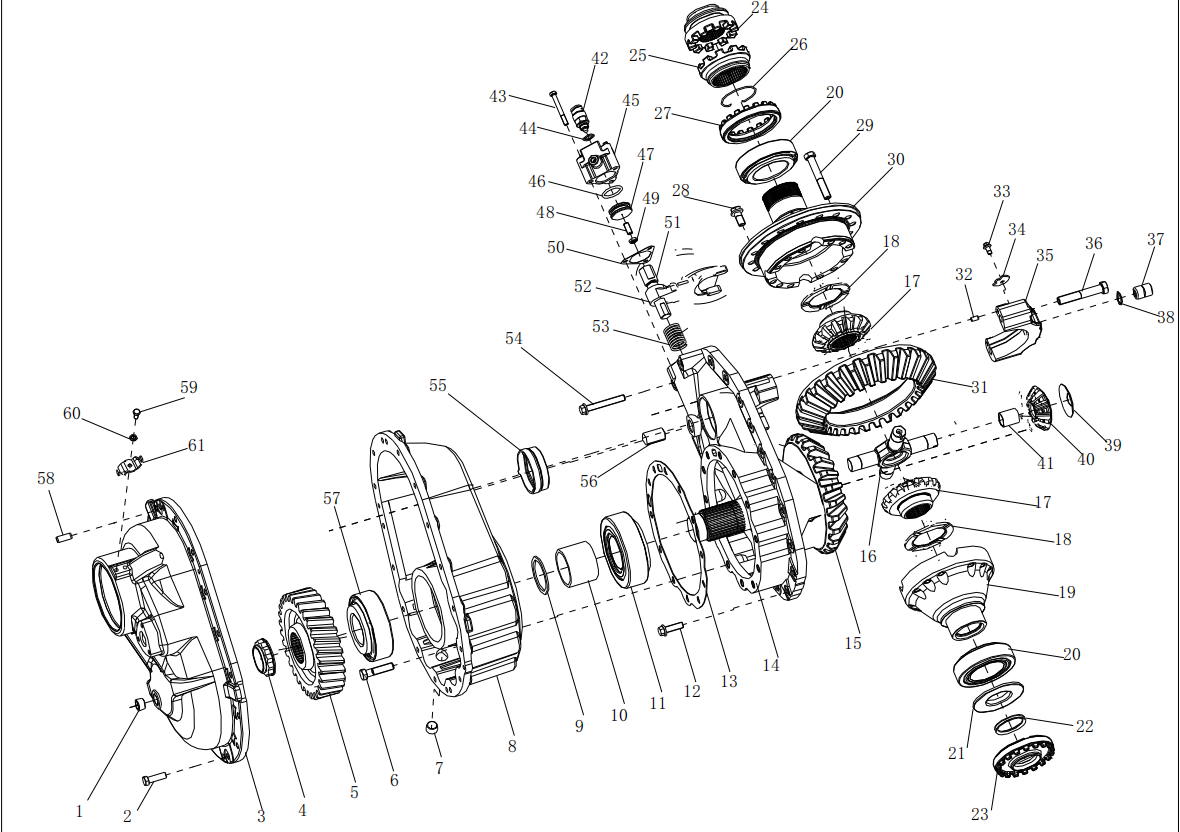

SHACMAN F2000 HDM SERIES DUAL STAGE DECELERATION DRIVE MID AXLE-2

By ALEX-86 16215315999 June 2nd, 2025 310 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

22	06.56669.0115	V-ring	1
23	81.35125.0012	Adjusting nut	1
24	81.35202.0033	Shift sleeve	1
25	81.35202.0034	Fixed sleeve	1
26	81.90820.0091	Wire circlip for axle	1	81.35100.6361/6276 differential speed Shell assembly (19, 29, 30) 81.35100.6276 is used for 1.208 speed ratio
27	81.35125.0003	Adjusting nut	1
28	81.90490.0331	Hex bolt	1
29	Q151B1490TF2	Hex bolt	6
30	81.35105.0023	Differential case	1
31	81.35120.0520	Passive bevel gear	2	used for Gear ratio：27/18=1.500
	81.35120.0554	Passive bevel gear	1	used for Gear ratio：28/21=1.333
	81.35120.0565	Passive bevel gear	1	used for Gear ratio：29/24=1.208
	81.35120.0532	Passive bevel gear	1	used for Gear ratio：29/17=1.7059
	81.35120.0523	Passive bevel gear	1	used for Gear ratio：27/12=2.25
32	Q5220816	Bush	1
33	Q1800816	Hex bolt	1
34	DZ9112320026	Lock piece	4
35	81.35302.0051	Bearing cap	2	81.35301.6094 reducer housing assembly Cheng (14, 32, 35, 36, 37 38), among which (37, 38) belong to 81.91001.6002 Pin assembly
36	06.02202.0717	Hex bolt	2
37	81.91001.0421	Bush	2
38	06.29019.0013	Wire for axle	4
39	81.90711.0535	Plant gear washer	2
40	81.35108.0059	Plant gear	2
41	81.93020.0458	Bush	4
42	81.25503.0244	Gearbox switch	4
