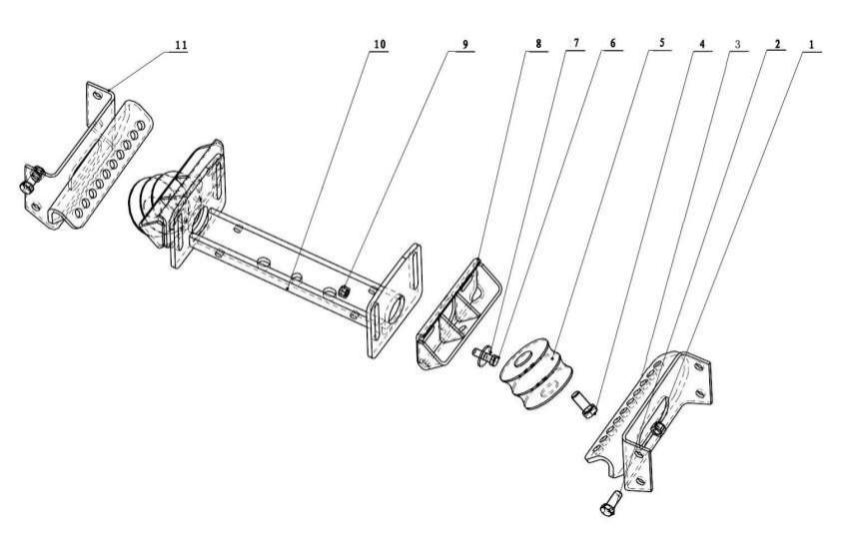

| 1 | Q33214 | Hex lock nut | 8 | SX1255NM464 | ||||||||
| 2 | Q150B1435 | Hex lock screw | 8 | SX1255NM464 | M14*1.5*35 | |||||||
| 3 | DZ9114598696 | Right bracket | 1 | SX1255NM464 | ||||||||
| 4 | Q150B1620 | Hex lock screw | 4 | SX1255NM464 | M16*1.5*20 | |||||||
| 5 | DZ9114590125 | Rubber pad | 2 | SX1255NM464 | ||||||||
| 6 | Q150B1235 | Hex lock screw | 8 | SX1255NM464 | M12*1.5*35 | |||||||
| 7 | Q40212 | Washer | 4 | SX1255NM464 | ||||||||
| 8 | 81.41506.5269 | Support bracket | 2 | SX1255NM464 | ||||||||
| 9 | Q33212 | Hex lock nut | 4 | SX1255NM464 | ||||||||
| 10 | AZ9112590099 | Cross member assy | 1 | SX1255NM464 | ||||||||
| 11 | DZ9114598695 | Left bracket | 1 | SX1255NM464 | ||||||||
