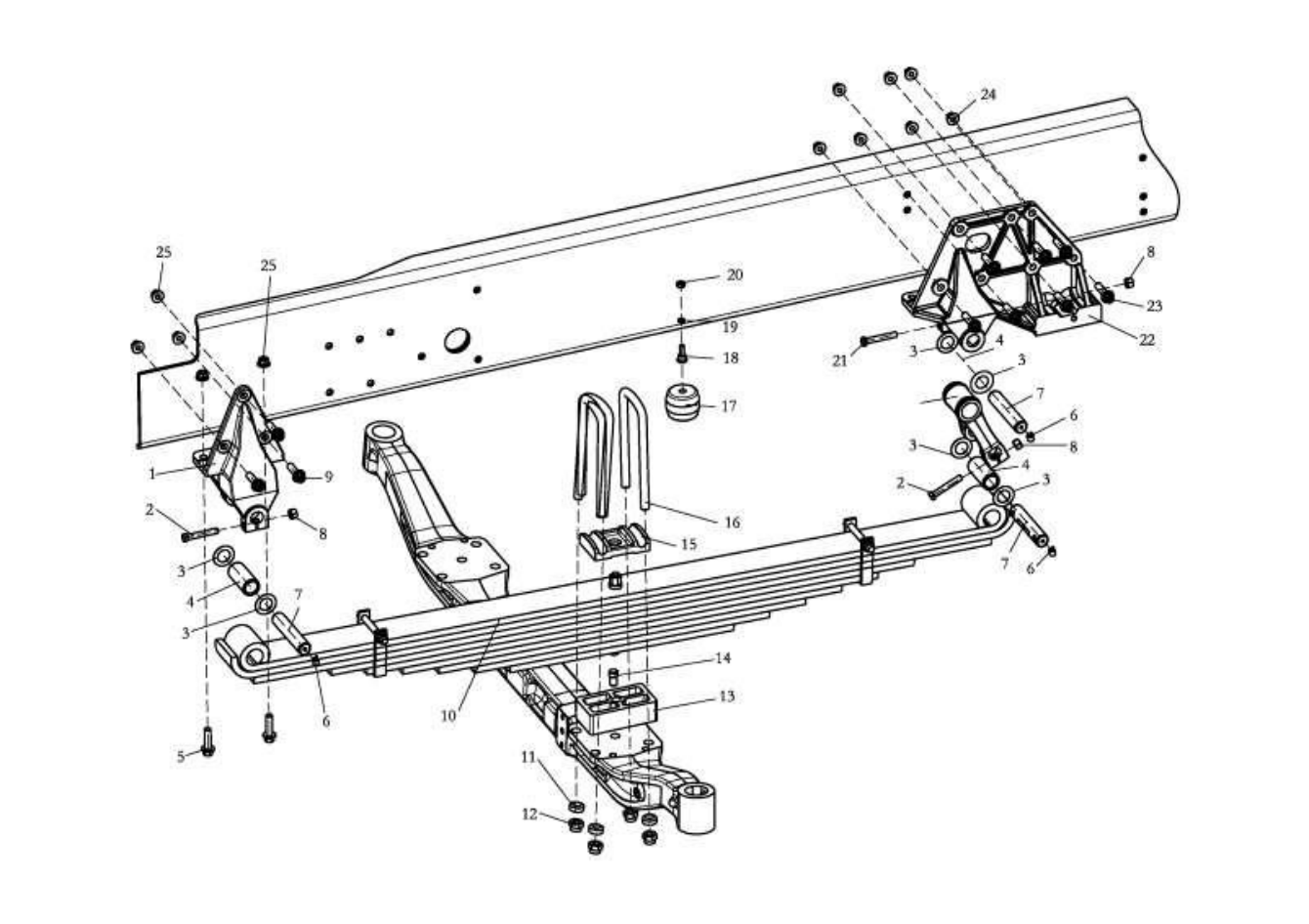

| 1 | DZ93259520015 | Front spring front bracket | 2 | ||||||||
| 2 | Q151C1275 | Hexagon headed bolt-Fine teeth | 2 | ||||||||
| 3 | 168000520050 | Washer | 12 | ||||||||
| 4 | 199000520078 | Bushing | 6 | ||||||||
| 5 | Q151B1440 | Hexagon headed bolt-Fine teeth | 4 | ||||||||
| 6 | 190003963124 190003963127 |
Metric tapered thread grease nipple Metric tapered thread grease nipple |
33 | ||||||||
| 7 | 199100520065 | Spring pin | 5 | ||||||||
| DZ9100520007 | Spring pin | 1 | |||||||||
| 8 | 190003888457 | Self-locking nut | 6 | ||||||||
| 9 | Q151B1465 | Hexagon headed bolt-Fine teeth | 6 | ||||||||
| 10 | DZ9100529004 DZ9100529005 |
Front left steel plate spring assembly Front right leaf spring assembly |
11 | ||||||||
| 11 | 06.15150.2112 | Washer | 8 | ||||||||
| 12 | 06.11289.0003 | Shoulder nut | 8 | ||||||||
| 13 | 199014520304 | Spring seat | 2 | ||||||||
| 14 | 199000520006 | Guide pin | 2 | ||||||||
| 15 | 81.41335.0084 | Spring clamping plate | 2 | ||||||||
| 16 | DZ9114526033 DZ9114526034 |
Front spring saddle bolt Front spring saddle bolt |
22 | ||||||||
| 17 | 188000520017 | Front spring stop block | 2 | ||||||||
| 18 | 188000520019 | Fastener | 2 | ||||||||
| 19 | Q40310 | Spring washer | 2 | ||||||||
| 20 | Q340B10 | Type 1 hex nut | 2 | ||||||||
