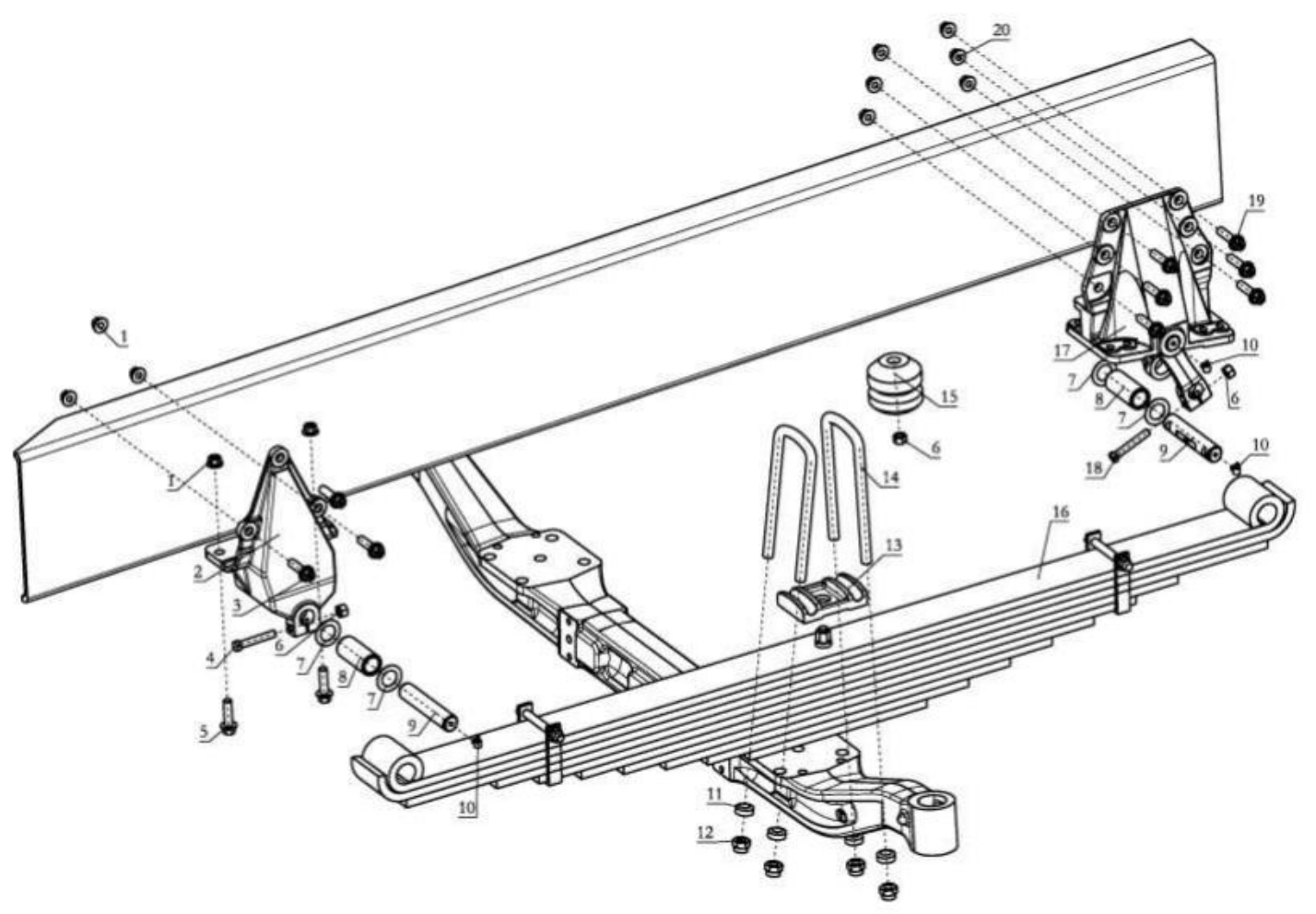

| 1 | 190003888458 | Self-locking nut | 10 | |||||||||
| 2 | DZ9114520012 | Front spring front bracket | 2 | |||||||||
| 3 | Q151B1465 | Hexagon headed bolt-Fine teeth | 6 | |||||||||
| 4 | Q151C1275 | Hexagon headed bolt-Fine teeth | 2 | |||||||||
| 5 | Q151B1450 | Hexagon headed bolt-Fine teeth | 4 | |||||||||
| 6 | 190003888457 | Self-locking nut | 6 | |||||||||
| 7 | 168000520050 | grommet | 8 | |||||||||
| 8 | 199000520078 | bush | 4 | |||||||||
| 9 | 199100520065 DZ9100520007 |
spring pin spring pin |
3 1 |
Installed on the front spring bracket on the right side of the frame | ||||||||
| 10 | 190003963124 190003963127 |
Metric taper thread grease nozzle Metric taper thread grease nozzle |
3 3 |
|||||||||
| 11 | 168000520056 | grommet | 8 | |||||||||
| 12 | 190003888626 | Self-locking nut | 8 | |||||||||
| 13 | 188000520002 | Front spring pressure plate | 2 | |||||||||
| 14 | 199014520259 | Front spring saddle bolt | 4 | |||||||||
| 15 | 81.96020.6013 | Hollow rubber buffer block | 2 | |||||||||
| 16 | DZ9100529008 DZ9100529009 |
Front left steel plate spring assembly Front right steel plate spring assembly |
1 1 |
|||||||||
| 17 | DZ9114520143 DZ9114520144 |
Front spring left rear bracket sub assembly Front spring right rear bracket sub assembly |
1 1 |
|||||||||
| 18 | Q151C1270 | Hexagon headed bolt-Fine teeth | 2 | |||||||||
| 19 | Q151B1650 | Hexagon headed bolt-Fine teeth | 12 | |||||||||
| 20 | 190003888459 | Self-locking nut | 12 | |||||||||
