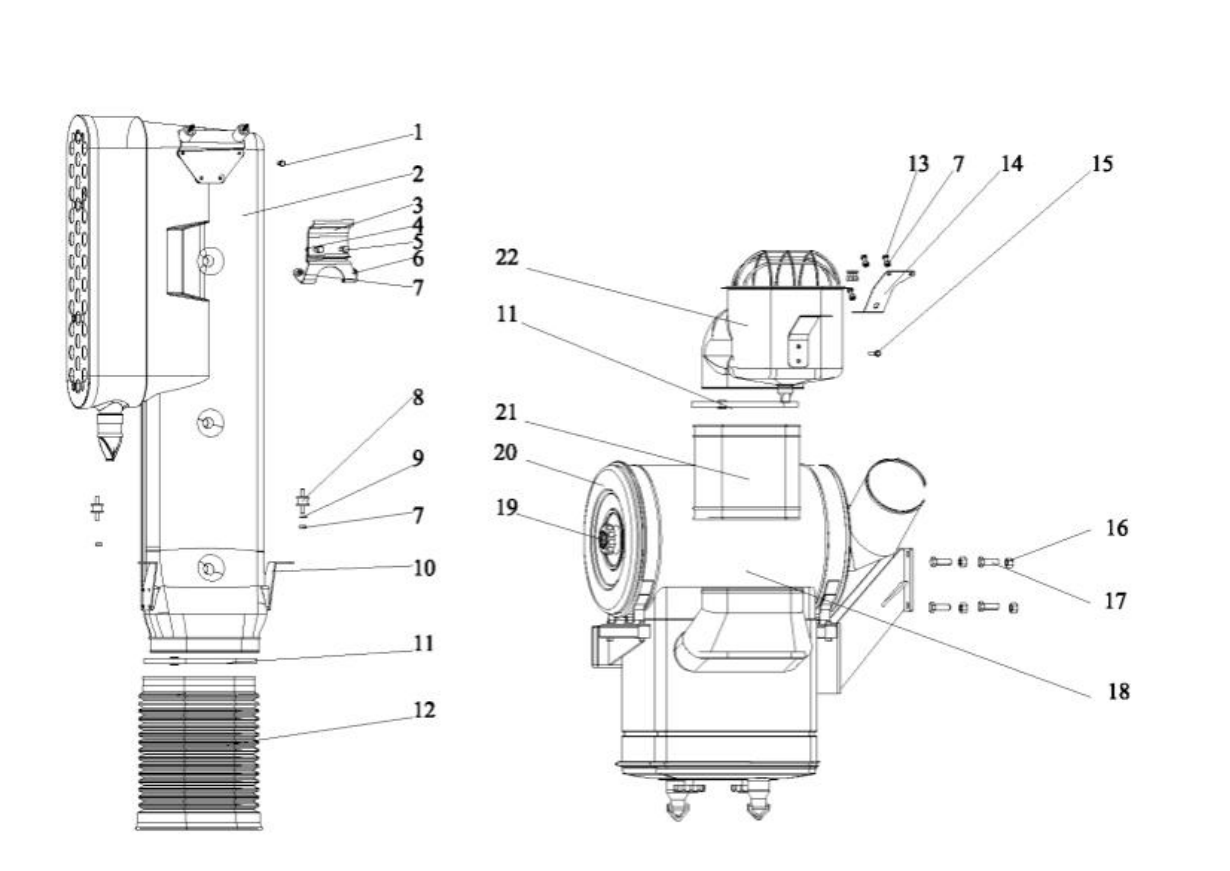

| 1 | Q2610816 | Screw | 2 | SX3255DR384 | ||
| 2 | DZ93259190005 | Intake pipe assembly | 7 | SX3255DR384 | ||
| 3 | 81.62940.5011 | Bracket | 1 | SX3255DR384 | ||
| 4 | Q33210 | Hex. nut | 10 | SX3255DR384 | ||
| 5 | Q150B1030 | Hex screw | 2 | SX3255DR384 | ||
| 6 | 81.08240.5201 | Bracket | 1 | SX3255DR384 | ||
| 7 | Q340B08 | Hex nut | 11 | SX3255DR384 | ||
| 8 | 81.96210.0289 | Cushion block | 1 | SX3255DR384 | ||
| 9 | Q40308 | Spring washer | 13 | SX3255DR384 | ||
| 10 | DZ9112196034 | Bracket | 1 | SX3255DR384 | ||
| 11 | DZ9114190934 | Clip | 2 | SX3255DR384 | ||
| 12 | DZ93259190006 | Screw pipe | 1 | SX3255DR384 | ||
| 13 | Q150B0820 | Hex screw | 7 | SX3255DR384 | ||
| 14 | SZ919000851 | Bracket | 1 | SX3255DR384 | ||
| 15 | Q2610860 | Screw | 2 | SX3255DR384 | ||
| 16 | Q33214 | Hex. nut | 4 | SX3255DR384 | ||
| 17 | Q150B1430 | Hex screw | 4 | SX3255DR384 | ||
| 18 | DZ93259190012 | Air cleaner | 1 | SX3255DR384 | ||
| 19 | 161200190040 | Stopper switch | 1 | SX3255DR384 | ||
| 20 | 169100770028 | Protect cover | 1 | SX3255DR384 | ||
| 21 | DZ93259190049 | Hose | 1 | SX3255DR384 | ||
| 22 | DZ93259190009 | Pedestal assembly | 1 | SX3255DR384 | ||
| 23 | DZ93259190066 | Syphon | 1 | SX3255DR384 | ||
| 24 | DZ9003532147 | T shape clip | 2 | SX3255DR384 | ||
| 25 | DZ9003532122 | T shape clip | 1 | SX3255DR384 | ||
