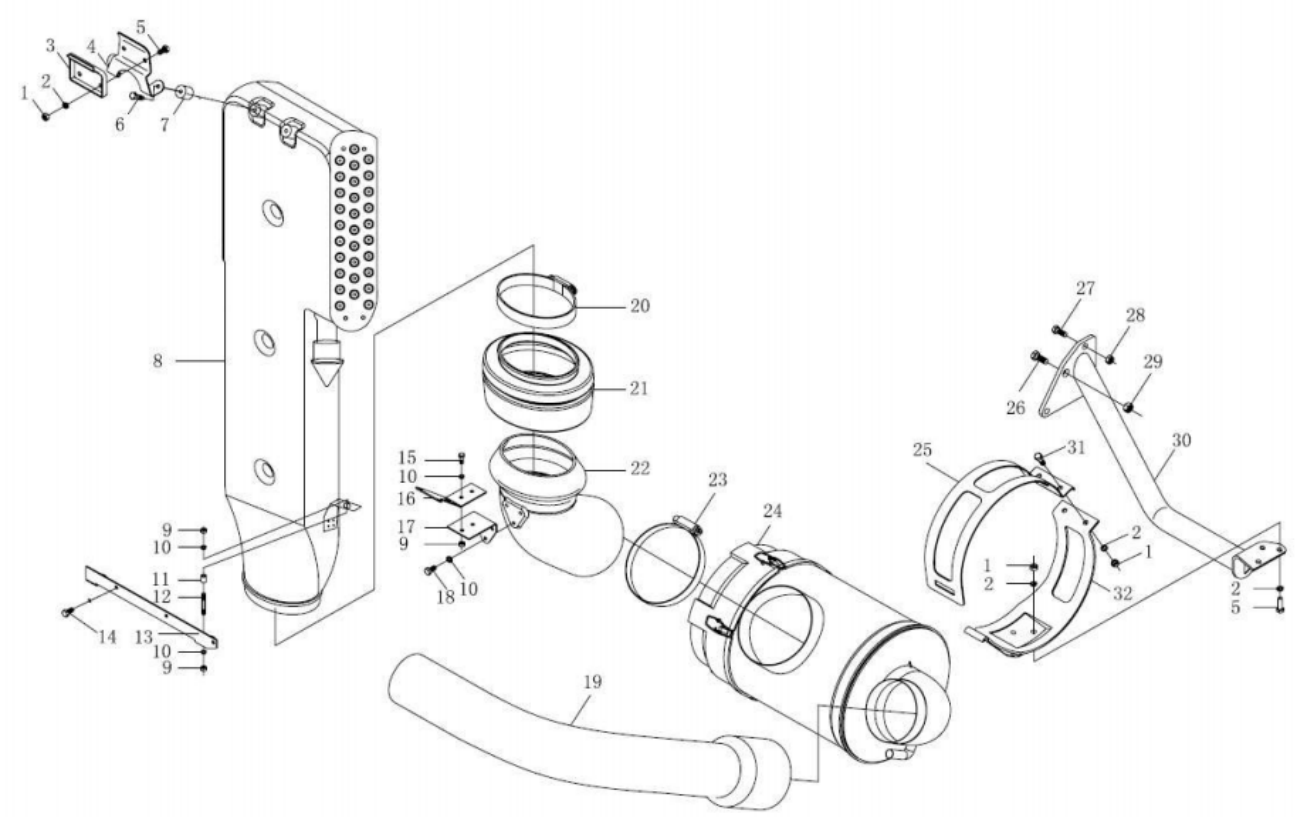

| 1 | Q340B10 | Hex nut | 7 | SX1255NR464 | ||
| 2 | Q40310 | Spring washer | 7 | SX1255NR464 | ||
| 3 | DZ9112190302 | Up plate | 1 | SX1255NR464 | ||
| 4 | 81.08240.5201 | Bracket | 1 | SX1255NR464 | ||
| 5 | Q150B1025 | Hex screw | 5 | SX1255NR464 | ||
| 6 | Q2610830 | Locking screw | 2 | SX1255NR464 | ||
| 7 | 81.96210.0387 | Pad | 2 | SX1255NR464 | ||
| 8 | 81.08201.6053 | Intake pipe assembly | 1 | SX1255NR464 | ||
| 9 | Q340B08 | Hex nut | 11 | SX1255NR464 | ||
| 10 | Q40308 | Spring washer | 2 | SX1255NR464 | ||
| 11 | 81.96210.0289 | Cushion block | 2 | SX1255NR464 | ||
| 12 | Q1290850 | Stud | 2 | SX1255NR464 | ||
| 13 | 81.08240.0215 | Bracket | 1 | SX1255NR464 | ||
| 14 | Q2610810 | Screw | 3 | SX1255NR464 | ||
| 15 | Q150B0820 | Hex screw | 7 | SX1255NR464 | ||
| 16 | 81.08240.0213 | Bracket | 1 | SX1255NR464 | ||
| 17 | DZ9112190121 | L shape bracket | 1 | SX1255NR464 | ||
| 18 | Q2610810 | Screw | 3 | SX1255NR464 | ||
| 19 | DZ9112190080 | Air hose pipe | 1 | SX1255NR464 | ||
| 20 | DZ9003980001 | Clip | 1 | SX1255NR464 | A181-200M7.751-30 | |
| 21 | DZ9118190191 | Screw pipe | 2 | SX1255NR464 | ||
| 22 | DZ93259190111 | Hose | 1 | SX1255NR464 | ||
| 23 | DZ9003532166 | Clip | 2 | SX1255NR464 | ||
| 24 | DZ9118190230 | Air cleaner | 1 | SX1255NR464 | ||
| 25 | DZ9118190231 | Bracket (upper) | 1 | SX1255NR464 | ||
