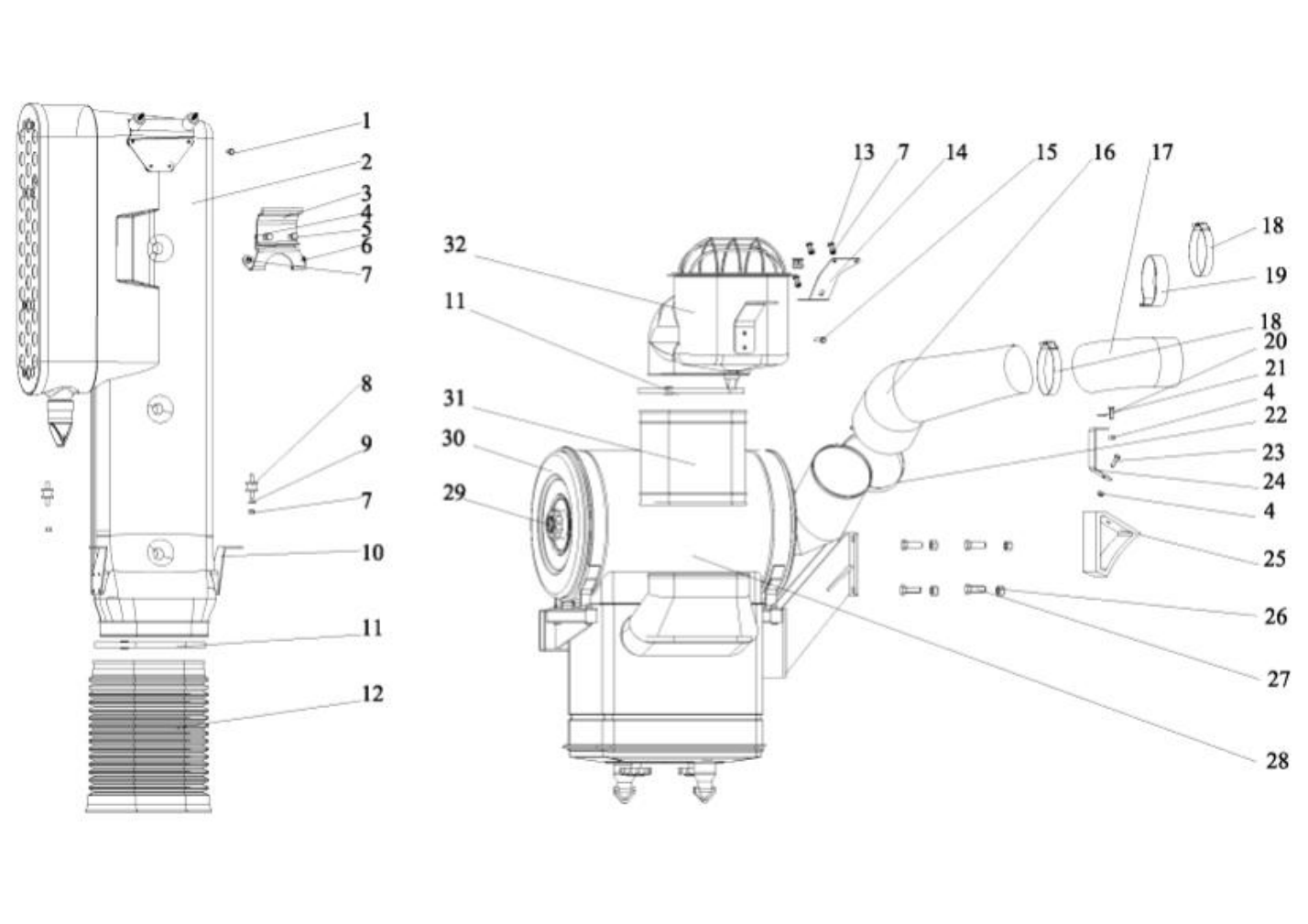

| 1 | Q2610816 | Screw | 2 | SX3315DR406 | ||
| 2 | DZ93259190005 | Intake pipe assembly | 7 | SX3315DR406 | ||
| 3 | 81.62940.5011 | Bracket | 1 | SX3315DR406 | ||
| 4 | Q33210 | Hex. nut | 10 | SX3315DR406 | ||
| 5 | Q150B1030 | Hex screw | 2 | SX3315DR406 | ||
| 6 | DZ9112196038 | Bracket | 1 | SX3315DR406 | ||
| 7 | Q340B08 | Hex nut | 11 | SX3315DR406 | ||
| 8 | 81.96210.0289 | Cushion block | 1 | SX3315DR406 | ||
| 9 | Q40308 | Spring washer | 13 | SX3315DR406 | ||
| 10 | 81.08240.0215 | Bracket | 2 | SX3315DR406 | ||
| 11 | DZ9114190934 | Clip | 2 | SX3315DR406 | ||
| 12 | DZ93259190006 | Screw pipe | 1 | SX3315DR406 | ||
| 13 | Q150B0820 | Hex screw | 7 | SX3315DR406 | ||
| 14 | DZ9112190134 | Bracket | 1 | SX3315DR406 | ||
| 15 | Q2610860 | Screw | 2 | SX3315DR406 | ||
| 16 | DZ9112190078 | Hose | 1 | SX3315DR406 | ||
| 17 | DZ1560110161 | Air intake pipe | 1 | SX3315DR406 | ||
| 18 | DZ9003532122 | Clip | 1 | SX3315DR406 | ||
| 19 | 199112540162 | Clip | 1 | SX3315DR406 | ||
| 20 | Q150B1020 | Hex screw | 1 | SX3315DR406 | ||
| 21 | Q40310 | Spring washer | 7 | SX3315DR406 | ||
| 22 | DZ9003532166 | Clip | 1 | SX3315DR406 | ||
| 23 | Q150B1025 | Hex screw | 5 | SX3315DR406 | ||
| 24 | DZ9112190055 | Plywood | 1 | SX3315DR406 | ||
| 25 | DZ9112190168 | Triangle bracket | 1 | SX3315DR406 | ||
