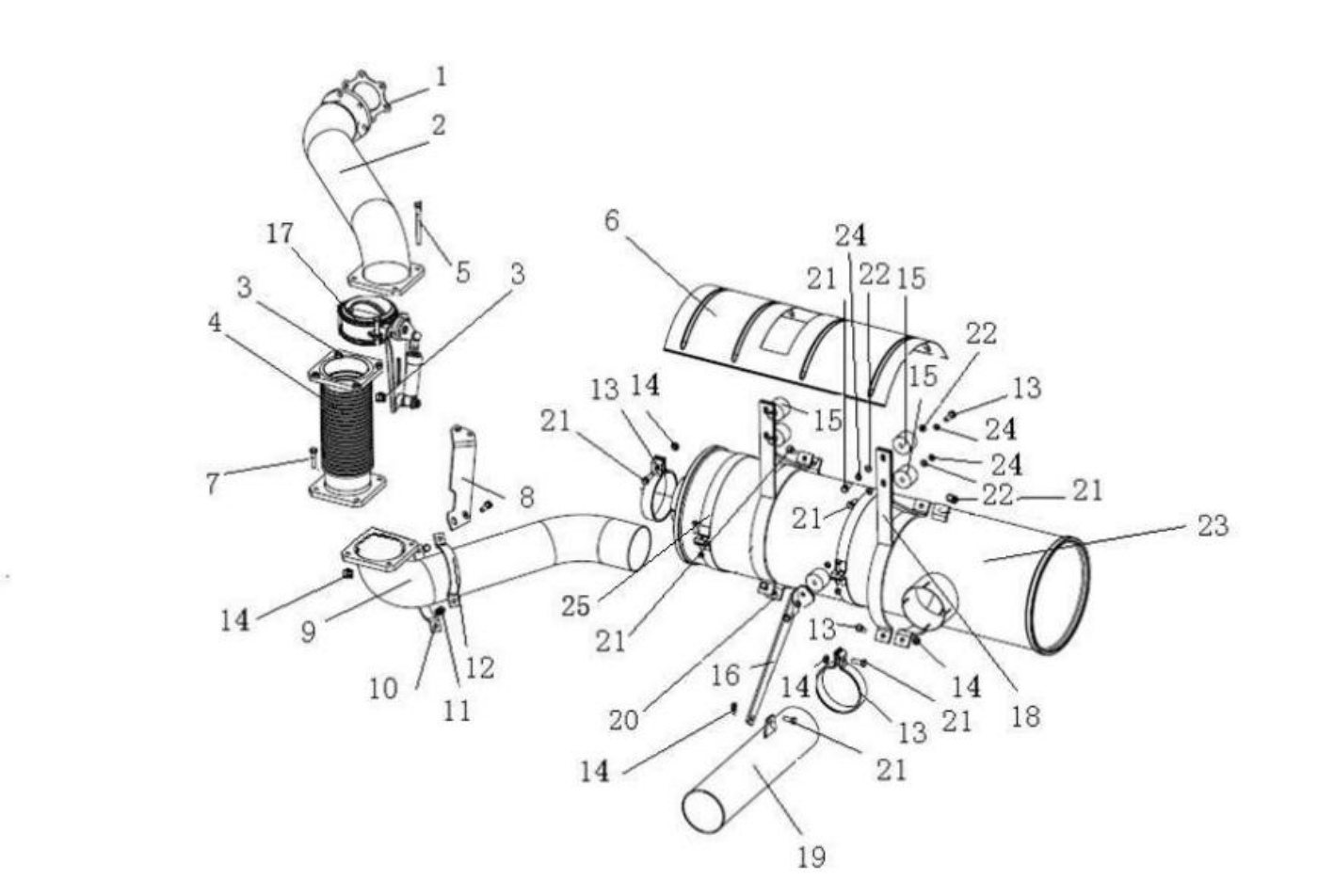

| 1 | 199112540015 | Gasket | 1 | |||
| 2 | DZ9114540755 | Exhausting pipe assy | 1 | |||
| 3 | 190003888470 | Locking nut | 4 | |||
| 4 | DZ95259540020 | Hose | 1 | |||
| 5 | Q150B10110TF2 | Hex.screw | 4 | |||
| 6 | DZ9114540140 | Heat insulation plate assy | 1 | |||
| 7 | Q150B1045 | Hex.screw | 4 | |||
| 8 | DZ9112540476 | Angle plate | 1 | |||
| 9 | DZ9112541002 | Exhausting pipe assy | 1 | |||
| 10 | DZ93319540042 | Clip | 1 | |||
| 11 | Q150B1030 | Hex.screw | 12 | |||
| 12 | DZ9118540313 | Clip | 1 | |||
| 13 | DZ9114540305 | Clip | 2 | |||
| 14 | Q33210 | Hex.nut | 16 | |||
| 15 | 1384D0410007 | Pad | 5 | |||
| 16 | 199100540144 | Bracket | 1 | |||
| 17 | DZ93189190008 | Valve | 1 | |||
| 18 | DZ9114541340 | Bracket | 2 | |||
| 19 | DZ9112540780 | Tail exhausting pipe assy | 1 | |||
| 20 | 199000540061 | Clip | 2 | |||
| 21 | Q150B1025 | Hex.screw | 6 | |||
| 22 | Q40110 | Washer | 10 | |||
| 23 | DZ9100540007 | Muffler | 1 | |||
| 24 | Q40310 | Spring washer | 10 | |||
| 25 | 199000540064 | Fastening strap assembly | 2 | |||
