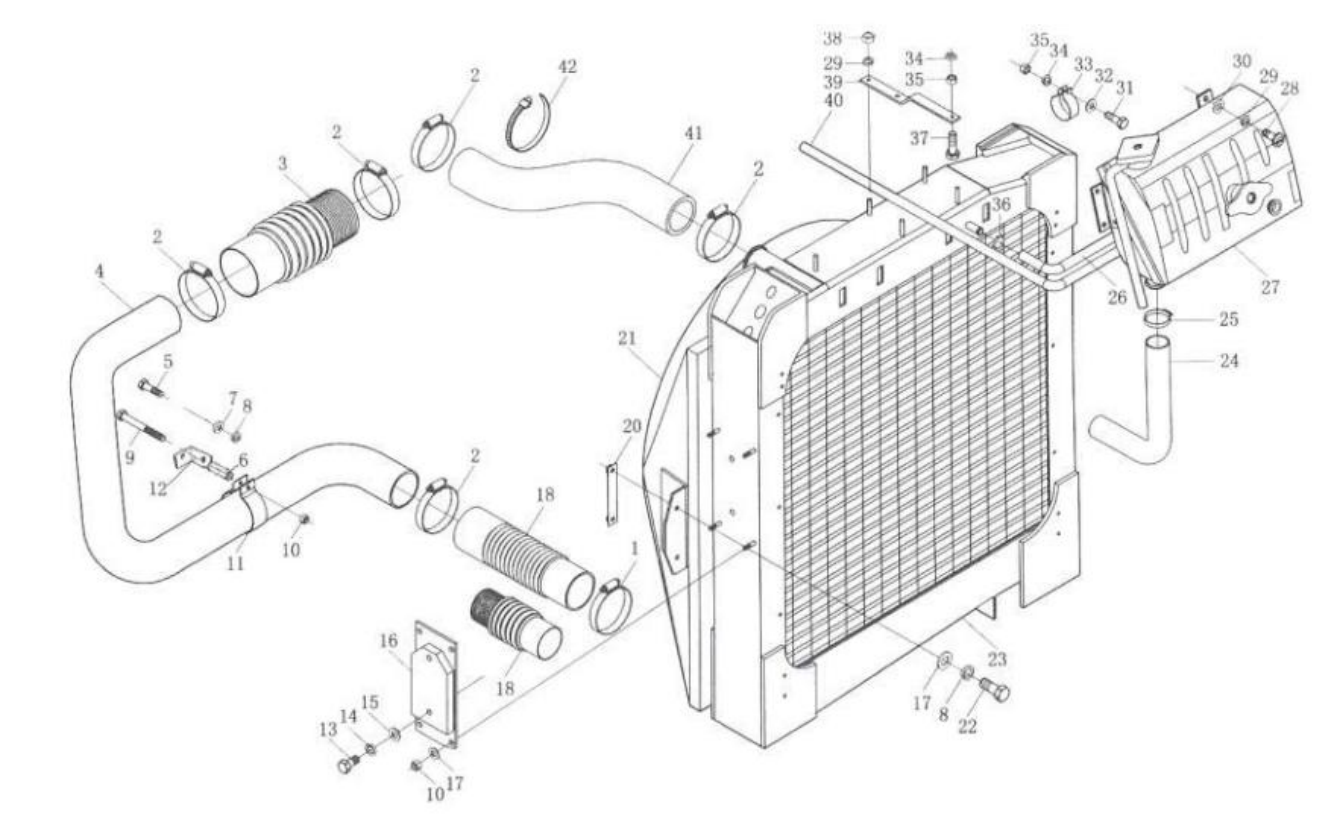

| 1 | 190003989308 | hose clamp | 3 | ||
| 2 | 190003989310 | hose clamp | 3 | ||
| 3 | DZ93259535815 | Cooling water hose | 1 | ||
| 4 | DZ93259534043 | Radiator outlet pipe | 1 | ||
| 5 | Q150B0830 | hex head bolt | 2 | ||
| 6 | 135700730116 | Interval tube | 1 | ||
| 7 | 190003932961 | Thick gasket | 2 | ||
| 8 | Q40308 | spring washer | 6 | ||
| 9 | Q150B0875 | hex head bolt | 2 | ||
| 10 | Q33208 | Type 2 all metal hexagonal lock nut | 8 | ||
| 11 | 190003990037 | pipe clamp | 2 | ||
| 12 | DZ93259538080 | Bracket | 1 | ||
| 13 | Q150B1020 | hex head bolt | 4 | ||
| 14 | Q40310 | spring washer | 4 | ||
| 15 | Q40010 | Small gasket | 4 | ||
| 16 | 199100530161 | Radiator bracket | 2 | ||
| 17 | Q40308 | spring washer | 12 | ||
| 18 | DZ9214530126 | Cooling water hose | 1 | ||
| 20 | 178000530009 | Compression piece assembly | 1 | ||
| 21 | DZ9100530200 | Windshield assembly | 1 | ||
| 22 | Q150B0820 | hex head bolt | 4 | ||
| 23 | DZ9112532888 | Aluminum radiator assembly | 1 | WP10.270、WP10、290、WP10.336 engine | |
| 116020840059 | rubber hose | 1 | |||
| 24 | 190003989340 | hose clamp | 1 |
