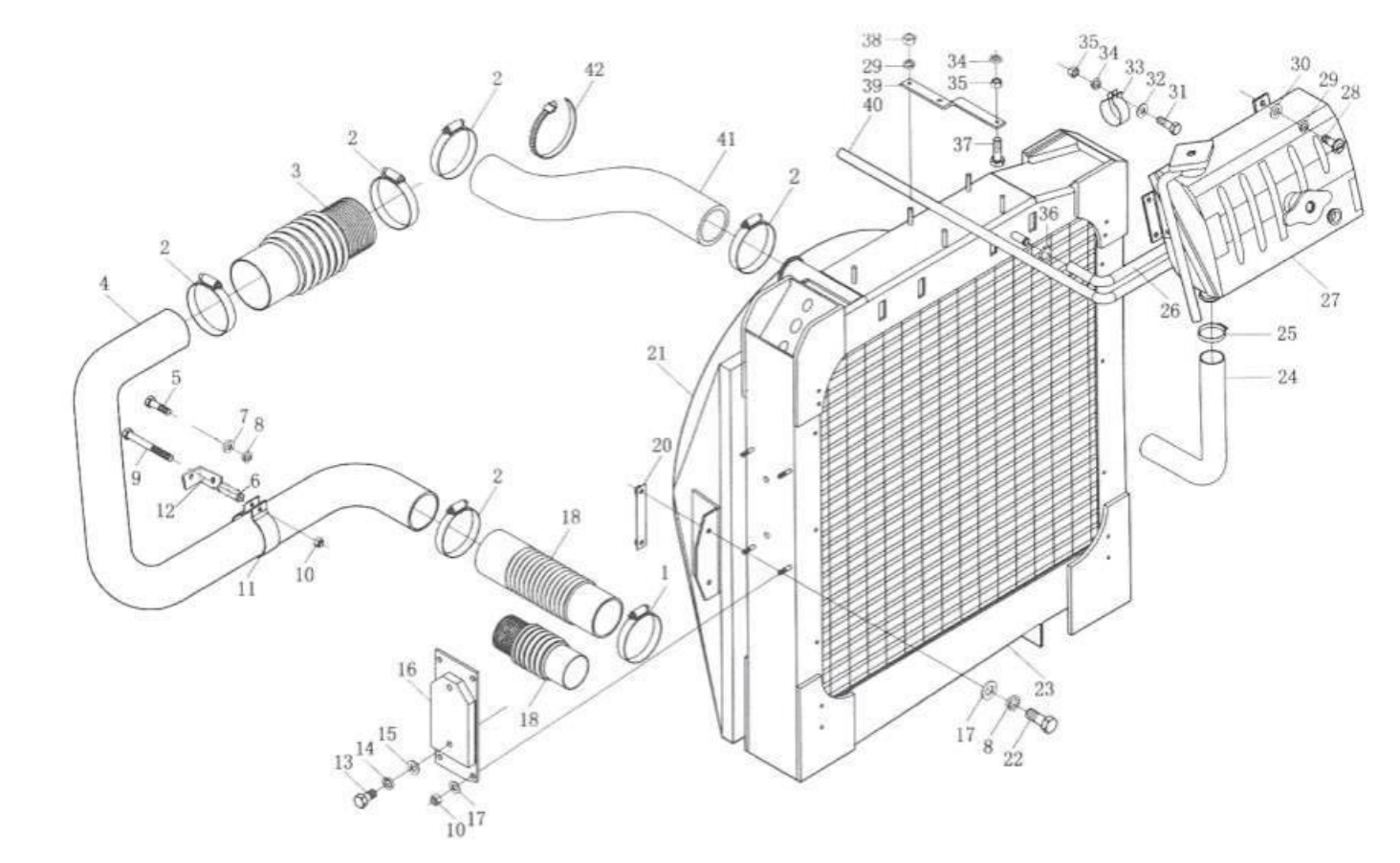

| 26 | 199114530138 | rubber hose | 1 | |||||||||
| 27 | DZ9100530150 | Expansion tank assembly | 1 | |||||||||
| 28 | 190003869931 | Slotted screw | 6 | |||||||||
| 29 | Q40506 | Heavy duty spring washer | 6 | |||||||||
| 30 | Q40206 | large washer | 6 | |||||||||
| 31 | Q150B0516 | hex head bolt | 1 | |||||||||
| 32 | large washer | 1 | ||||||||||
| 3334 | Q40205 | Pipe clamp Lightweight spring washer |
41 | |||||||||
| 35 | Type 1 hex nut | 1 | ||||||||||
| 36 | 159000360205 | hose clamp | 4 | |||||||||
| 37 | Q40405 | hex head bolt | 1 | |||||||||
| 38 | Q340B05 | Type 1 hex nut | 2 | |||||||||
| 39 | ZQ68810 | Bracket | 1 | |||||||||
| 40 | Q150B0520 | rubber hose | 1 | |||||||||
| 41 | Q340B06 | Molded hose | 1 | |||||||||
| 42 | 199100530045 199114530139 199100530130 190003171697 |
Plastic tightening strap | on demand | |||||||||
