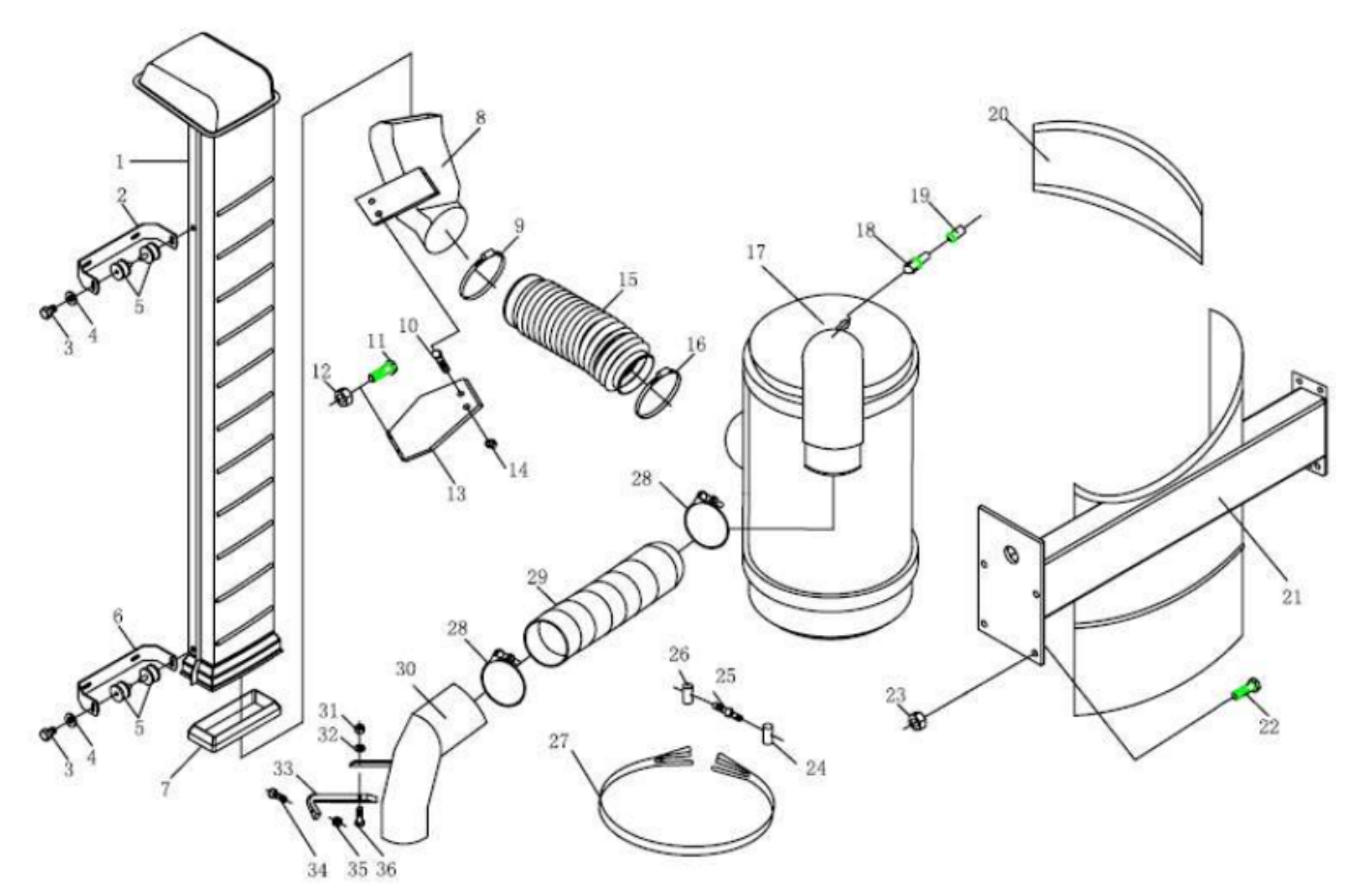

| 1 | DZ9100190045 | Intake pipe assembly | 1 | SX4255UR294 | |
| 2 | 199100190018 | Bracket (upper) | 1 | ||
| 3 | Q150B0820 | Hex screw | 4 | ||
| 4 | Q40208 | Washer | 4 | ||
| 5 | 199014540007 | Cushion block | 4 | ||
| 6 | 199100190018 | Bracket (lower) | 1 | ||
| 7 | 199100190070 | Ring | 1 | ||
| 8 | 199100190052 | Connect Pipe assembly | 1 | ||
| 9 | DZ9003532147 | Clip | 1 | ||
| 10 | Q150B0820 | Hex screw | 2 | ||
| 11 | Q150B1030 | Hex screw | 3 | ||
| 12 | Q33210 | Hex nut | 3 | ||
| 13 | DZ91259190031 | Bracket angle | 1 | ||
| 14 | Q33208 | Hex nut | 1 | ||
| 15 | 199114190078 | Screw pipe | 1 | ||
| 16 | DZ9003532134 | Clip | 1 | ||
| 17 | DZ9114190150 | Air cleaner | 1 | ||
| 18 | 161200190040 | Safety Element Indicator | 1 | ||
| 19 | 169100770028 | Protect cover | 1 | ||
| 20 | 199100190065 | Stiffener | 1 | ||
| 21 | DZ9114190160 | Bracket | 1 | ||
| 22 | Q151B1440 | Hex screw | 4 | ||
| 23 | 190003888458 | Hex nut | 4 | ||
| 24 | 120900190017 | Tighten pin | 1 |
