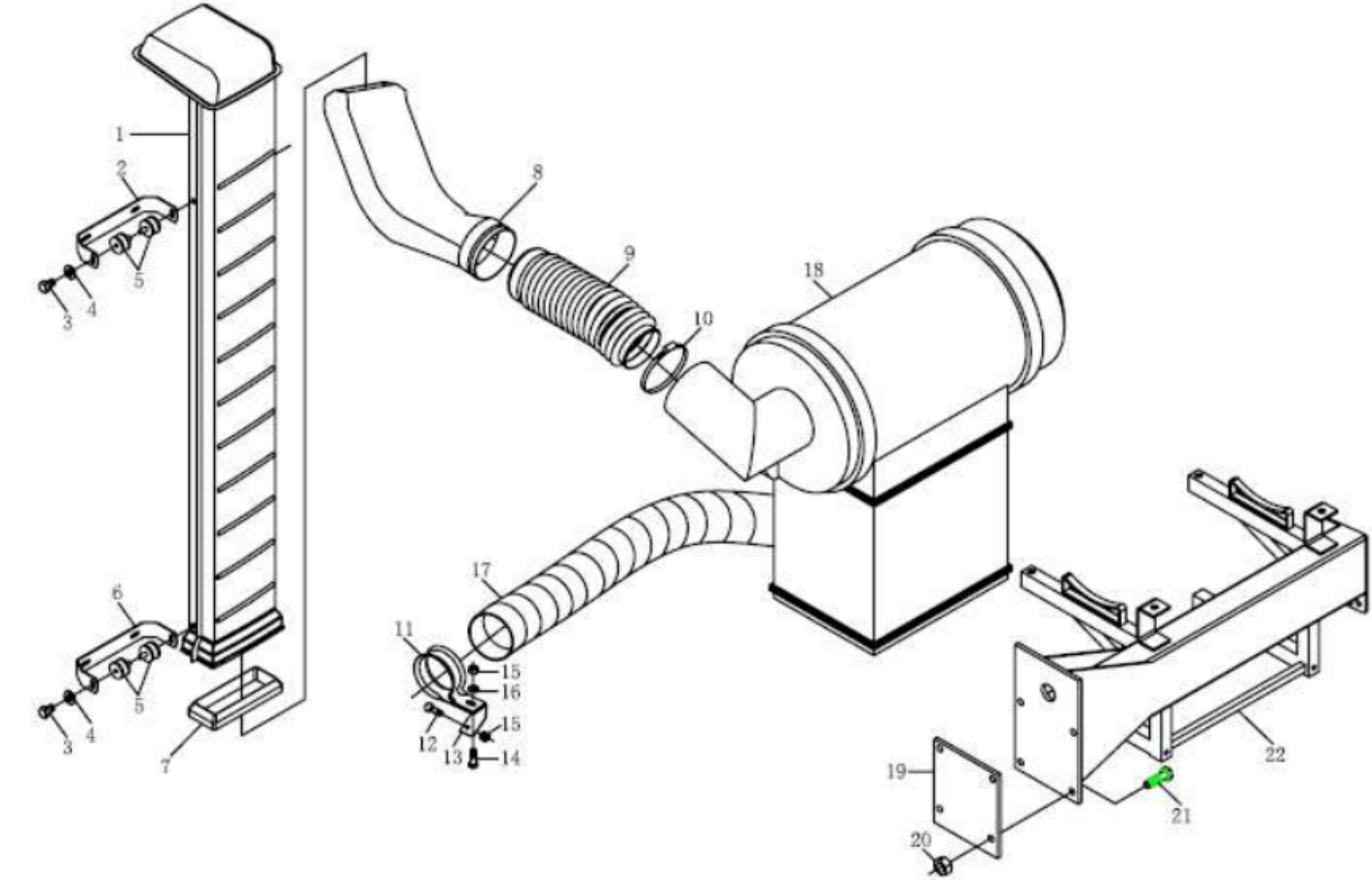

| 1 | DZ9114190036 | Intake pipe assembly | 1 | SX3315UR366 | |
| 2 | 199100190018 | Bracket (upper) | 2 | ||
| 3 | Q150B0820 | Hex screw | 4 | ||
| 4 | Q40208 | Washer | 4 | ||
| 5 | 199014540007 | Cushion block | 4 | ||
| 6 | 199100190019 | Bracket (lower) | 2 | ||
| 7 | 199100190070 | Ring | 1 | ||
| 8 | 199100190052 | pipe | 1 | ||
| 9 | 199114190078 | Screw pipe | 1 | ||
| 10 | 190003989308 | Clip | 1 | ||
| 11 | DZ91259190026 | Clip | 1 | ||
| 12 | Q150B0835 | Hex screw | 1 | ||
| 13 | DZ9112190055 | Plate | 1 | ||
| 14 | Q150B0830 | Hex screw | 1 | ||
| 15 | Q33208 | Hex nut | 2 | ||
| 16 | Q40208 | Washer | 1 | ||
| 17 | DZ93259190095 | Pipe of air cleaner | 1 | ||
| 18 | DZ9118190332 | Air cleaner | 1 | ||
| 19 | DZ91319190003 | Plate | 1 | ||
| 20 | DZ9003532147 | Clip | 4 | ||
| 21 | Q151B1450 | Hex screw | 4 | ||
| 22 | DZ9112190012 | Bracket of air cleaner | 1 | ||
| 23 | DZ91259190031 | Bracket | 1 |
