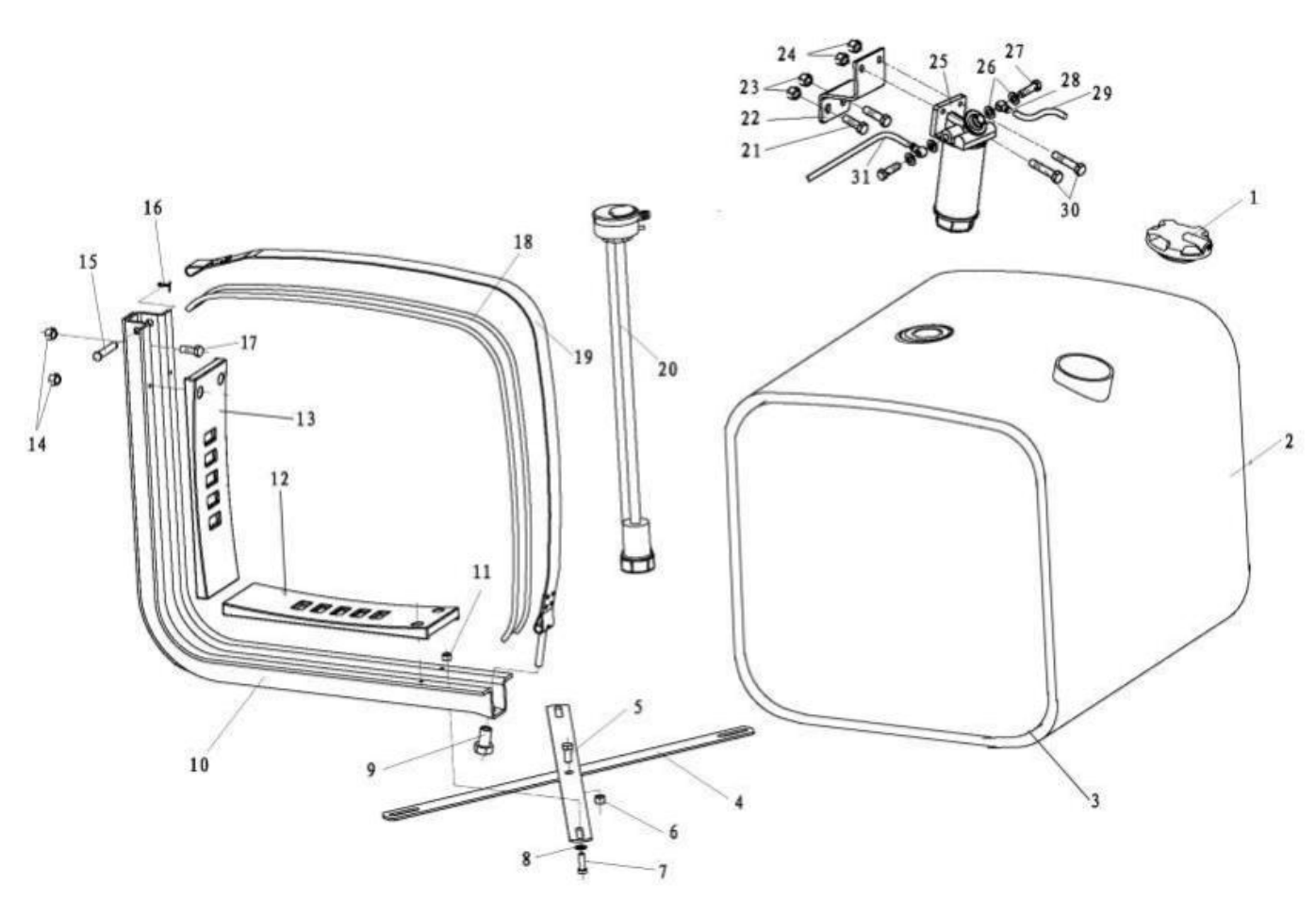

| 1 | 179200550023 | Cover | 1 | SX3315UM366 | ||
| 2 | DZ91189553340 | Fuel Tank | 1 | lightweight | ||
| 3 | 190003179030 | Protector | 2 | 2.23m | ||
| 4 | 81.12240.0003 | Drawstring | 2 | |||
| 5 | Q150B1225 | Hex screw | 1 | |||
| 6 | Q33212 | Locking nut | 1 | |||
| 7 | Q150B1030 | Hex screw | 4 | |||
| 8 | Q40110 | Washer | 4 | |||
| 9 | 81.90685.0396 | Nut | 2 | |||
| 10 | DZ91189554750 | Bracket | 2 | |||
| 11 | Q33210 | Locking nut | 4 | |||
| 12 | DZ91189553801 | Rear plate | 2 | |||
| 13 | DZ91189553801 | Rear plate | 2 | |||
| 14 | 190003888627 | Locking nut | 4 | |||
| 15 | Q5101265 | Shaft | 2 | |||
| 16 | Q5004020 | Cotter pin | 2 | |||
| 17 | Q151B1660TF2 | Hex screw | 4 | |||
| 18 | DZ91189552702 | Protector | 2 | |||
| 19 | DZ91189553830 | Fasteming strap assembly | 2 | |||
| 20 | DZ93189551121 | Sensor | 1 | |||
| 21 | Q151B1435 | Hex screw | 2 | |||
| 22 | DZ92189550026 | Bracket | 1 | |||
| 23 | 190003888458 | Locking nut | 2 | |||
| 24 | Q33210 | Locking nut | 2 | |||
| 25 | DZ91189550130 | Fuel coarse filter assembly | 1 | |||
| 26 | Q72314 | Seal washer | 8 | |||
