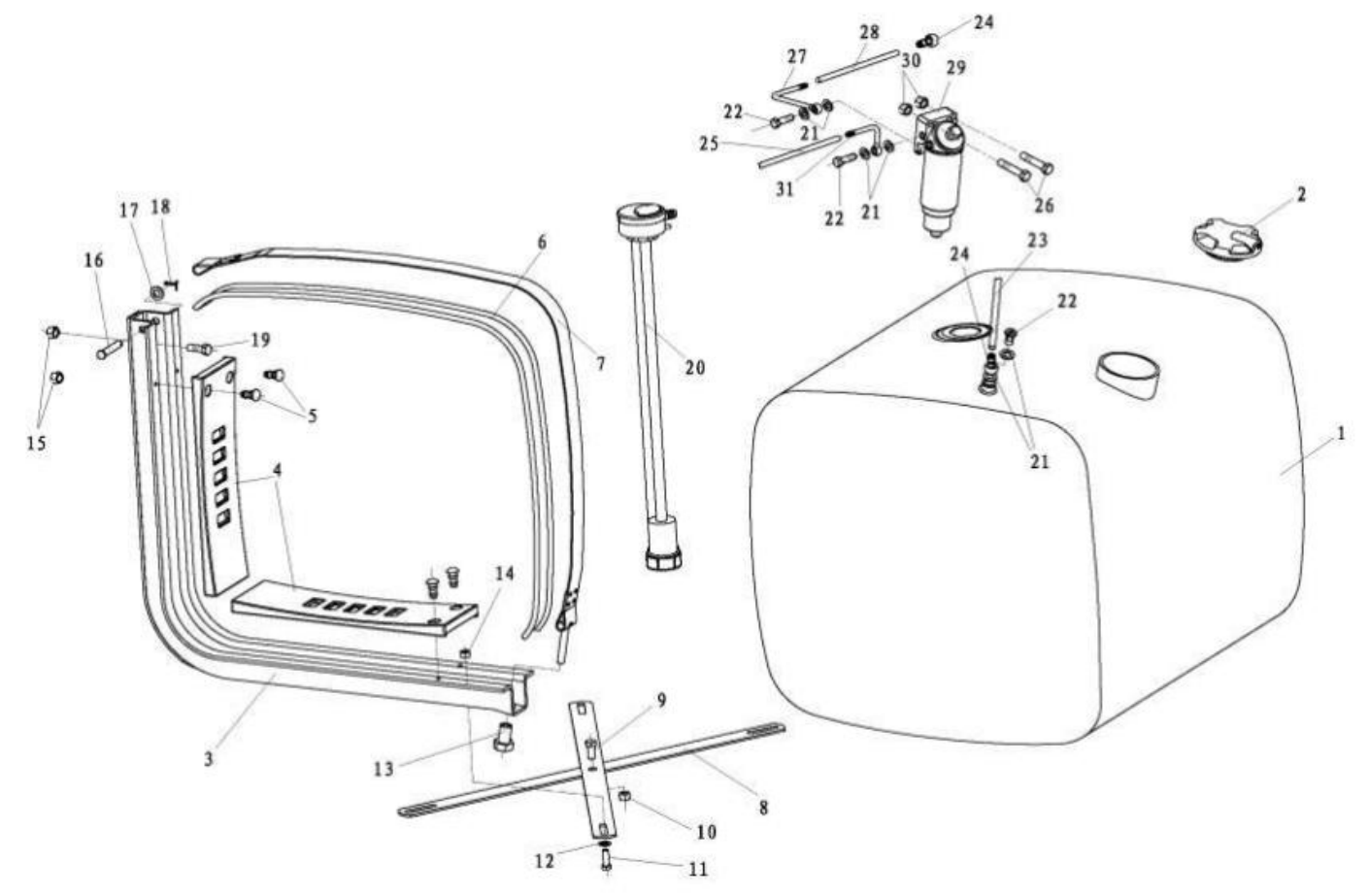

| 1 | DZ91189553110 | Fuel Tank | 1 | SX4255UM2796 | ||
| 2 | 179200550023 | Cover | 1 | lightweight | ||
| 3 | DZ91319554310 | Bracket | 2 | |||
| 4 | DZ91189552039 | Rear plate | 2 | |||
| 5 | 81.96002.0333 | Tack | 2 | |||
| 6 | DZ9114552701 | Protector | 2 | |||
| 7 | DZ9114552730 | Fasteming strap assembly | 2 | |||
| 8 | DZ91189553101 | Drawstring | 2 | |||
| 9 | Q150B1225 | Hex screw | 1 | |||
| 10 | Q33212 | Locking nut | 1 | |||
| 11 | Q150B1030 | Hex screw | 4 | |||
| 12 | Q40110 | Washer | 4 | |||
| 13 | 81.90685.0396 | Nut | 2 | |||
| 14 | Q33210 | Locking nut | 4 | |||
| 15 | 190003888458 | Locking nut | 2 | |||
| 16 | Q5101265 | Shaft | 2 | |||
| 17 | ||||||
| 18 | Q5004020 | Cotter pin | 2 | |||
| 19 | Q151B1465TF2 | Hex screw | 8 | |||
| 20 | DZ93189551142 | Sensor | 1 | |||
| 21 | Q72316 | Seal washer | 8 | |||
| 22 | 190003962621 | Hollow bolt | 4 | |||
| 23 | 190003179784 | Pipe | 1 | |||
| 24 | DZ9114550043 | Hose joint | 4 | |||
| 25 | 190003179784 | Pipe | 1 | |||
| 26 | Q150B1245 | Hex screw | 2 | |||
