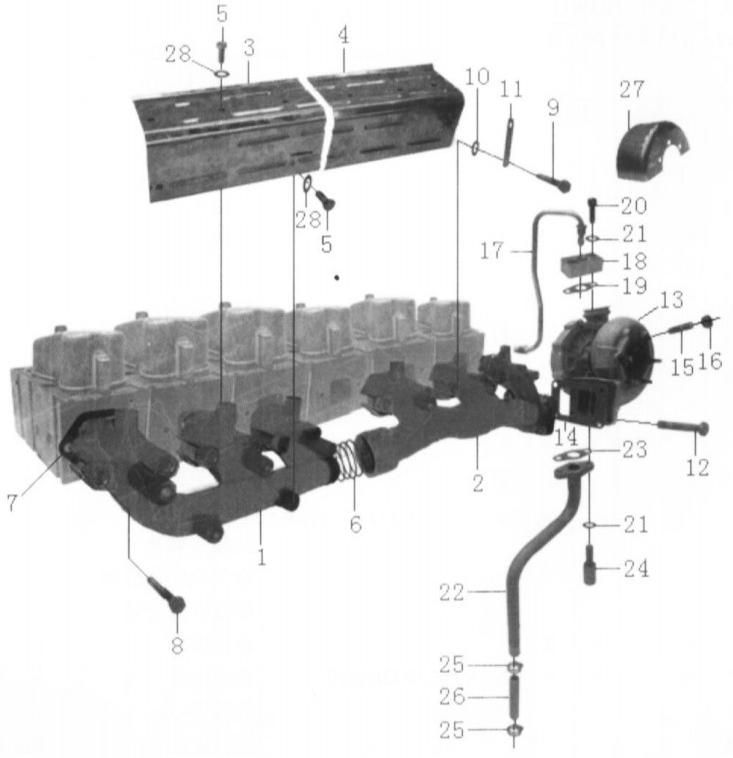

| 1 | VG2600111290 | 1 | 1 | 1 | 1 | Front exhaust manifold | ||||||
| 2 | VG2600110855 | 1 | 1 | 1 | 1 | Rear exhaust manifold | ||||||
| 3 | VG2600111144 | 1 | 1 | 1 | 1 | Front heat shield | ||||||
| VG2600111142 | 1 | 1 | 1 | 1 | Front heat shield | |||||||
| 4 | VG2600111145 | 1 | 1 | 1 | 1 | Rear heat shield | ||||||
| VG2600111143 | 1 | 1 | 1 | 1 | Rear heat shield | |||||||
| 5 | VG2600110683 | 8 | 8 | 8 | 8 | Heat shield bolt | ||||||
| VG2600110962 | 6 | 6 | 6 | 6 | Heat shield bolt | |||||||
| 6 | VG260110162 | 4 | 4 | 4 | 4 | Exhaust pipe sealing ring | ||||||
| 7 | VG1560110111 | 6 | 6 | 6 | 6 | exhaust pipe gasket | ||||||
| 8 | VG1560110104 | 11 | 11 | 11 | 11 | Exhaust pipe fixing bolt | ||||||
| 9 | VG1560110105 | 1 | 1 | 1 | 1 | Exhaust pipe fixing bolt | ||||||
| 10 | VG609070067 | 1 | 1 | 1 | 1 | thrust washer | ||||||
| 11 | VG2600110871 | 1 | 1 | 1 | 1 | support | ||||||
| 12 | VG1560110241 | 4 | 4 | 4 | 4 | hex head bolt | ||||||
| 13 | VG1560118227 | 1 | 1 | 1 | 1 | Exhaust gas turbocharger | ||||||
| 14 | VG1560110210 | 1 | 1 | 1 | 1 | Turbocharger gasket | ||||||
| 15 | VG1560110187 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | double-ended stud | ||
| 16 | 190003888470 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | VM108-C3PDIN980 | self-locking nut | |
| 17 | VG1560070001 | 1 | 1 | 1 | 1 | fuel inlet pipe | ||||||
| 18 | VG1560110152 | 1 | 1 | 1 | 1 | Inlet pipe flange | ||||||
| 19 | VG609E110050 | 1 | 1 | 1 | 1 | Inlet pipe gasket |
