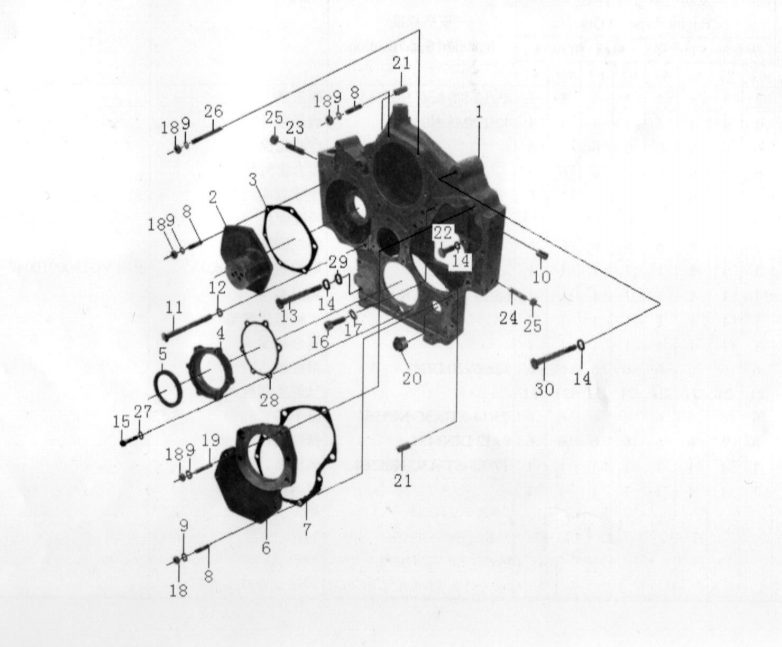

HOWO WD615 WIDE BODY EURO Ⅱ ENGINGE CYLINDER BLOCK-3

By ALEX-86 16215315999 January 21st, 2026 42 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

1 2	61557010008 VG2600010830	1 1	1 1	1 1	1 1	1 1	1 1	1 1	1 1		Timing gear chamber Air compressor gear cover	Wide cylinder body, dual cylinder air compressor Replace VG1560010069 (triangle belt)
3 4	VG14010040 VG2600010928	1 1	1 1	1 1	1 1	1 1	1 1	1 1	1 1		Air compressor gear cover gasket Front oil seal seat
5	VG1047010038	1	1	1	1	1	1	1	1		front oil seal	replace VG1500010037
6	VG1500010008A	1	1	1	1	1	1	1	1		Camshaft gear cover
7	VG14010070	1	1	1	1	1	1	1	1		Camshaft gear cover gasket
8	190003813429	14	14	14	14	14	14	14	14	M8×22-8.8-ZN DIN939	double-ended stud
9	190003932023	17	17	17	17	17	17	17	17	B8-ZN DIN137	Wave spring washers
10 11 12 13	190003909626 190003802576 190003932024 190003800571	6 1 1 1	6 1 1 1	6 1 1 1	6 1 1 1	6 1 1 1	6 1 1 1	6 1 1 1	6 1 1 1	6×12 DIN1481 M10×90-8.8-ZN DIN933 B10-ZN DIN137 M10×80-8.8-ZN DIN931	spring pin hex head bolt Wave spring washers hex head bolt



14	190003931122	10	10	10	10	10	10	10	10	B10-ZN DIN127	spring washer
15	190011260039	6	6	6	6	6	6	6	6	M6×30-8.8-H.Y GB/T5782	hex head bolt
16	190003862524	2	2	2	2	2	2	2	2	M10×20-8.8-ZN DIN912	Hexagonal socket head screw
17	190003932025	2	2	2	2	2	2	2	2	A10-ZN DIN137	Curved spring washers
18	190003871252	17	17	17	17	17	17	17	17	M8-8-ZN DIN934M	Type 1 hex nut
19 20	190003813443 190003962051	1 1	1 1	1 1	1 1	1 1	1 1	1 1	1 1	M8×30-8.8-ZN DIN939 CM30×1.5-ST-A3C DIN7604	double-ended stud Lightweight hexagonal cylindrical plug
