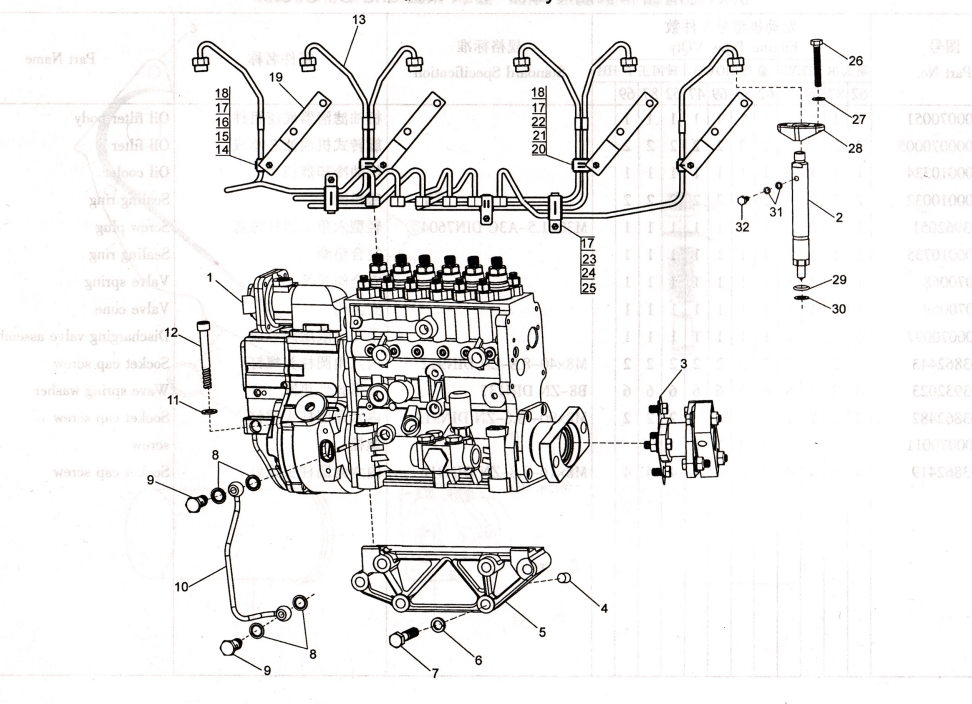

HOWO WD615 EURO 2 DIESEL ENGINE FUEL SYSTEM-2

By ALEX-86 16215315999 January 17th, 2026 38 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

16 17	VG1560080178 190003802321	2 7	2 7	2 7	2 7	2 7	2 7	2 7	2 7	2 7	2 7	2 7	M6×16-8.8-ZN DIN933	Single tube clamp lower piece hex head bolt

18 19 20 21	Q40306 VG1560080172 VG1500080202 VG1500080216	4 4 3 3	4 4 3 3	4 4 3 3	4 4 3 3	4 4 3 3	4 4 3 3	4 4 3 3	4 4 3 3	4 4 3 3	4 4 3 3	4 4 3 3		spring washer support bracket Double tube clamp upper piece component Double tube clamp gasket




22	VG1500080217	3	3	3	3	3	3	3	3	3	3	3		Double tube clamp lower piece
23	VG1500080201	2	2	2	2	2	2	2	2	2	2	2		Three tube clamp upper piece component
24 25	VG1500080212 VG1500080213	2 2	2 2	2 2	2 2	2 2	2 2	2 2	2 2	2 2	2 2	2 2		Three pipe clamp gasket Three pipe clamp lower piece

26	VG2600080383	12	12	12	12	12	12	12	12	12	12	12		hex head bolt
27	190003932023	8	8	8	8	6	6	6	6	6	6	6	B8-ZN DIN137	Wave spring washers
28	VG1500080094A	6	6	6	6	6	6	6	6	6	6	6		Tighten the pressure plate
29	VG609070080	6	6	6	6	6	6	6	6	6	6	6		gasket
30	VG14080082	6	6	6	6	6	6	6	6	6	6	6		washer
31	VG9003080001	12	12	12	12	12	12	12	12	12	12	12		Composite sealing gasket
32	VG1500080090	6	6	6	6	6	6	6	6	6	6	6		hollow bolt
