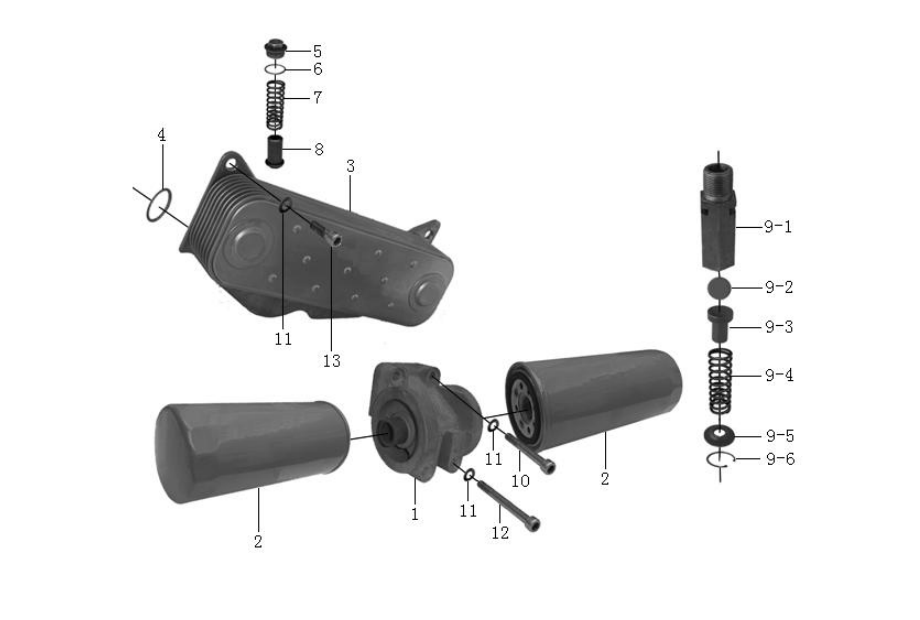

| - | Oil filter assembly | VG1500070050 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 1 | Oil filter body | VG1500070051 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 2 | Oil filter | VG61000070005 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 3 | Oil cooler | VG1500010334 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 4 | Sealing ring | VG1400010032 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 5 | Screw plug | 190003962051 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | M 30×1.5-ST-A3C DIN7604 | ||||||||
| 6 | Sealing ring | VG2600010735 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 7 | Valve spring | VG14070068 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 8 | Valve cone | VG14070069 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 9 | Discharging valve assembly | VG1500070097 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 10 | Socket cap screw | 190003862443 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | M 8×40-8.8-ZN DIN912 | ||||||||
| 11 | Wave spring washer | 190003932023 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | B8-ZN DIN137 | ||||||||
| 12 | Socket cap screw | 190003862482 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | M 8×90- 8.8-ZN DIN912 | ||||||||
| 13 | Socket cap screw | 190003862419 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | M8×16-8.8-ZN DIN912 | ||||||||
