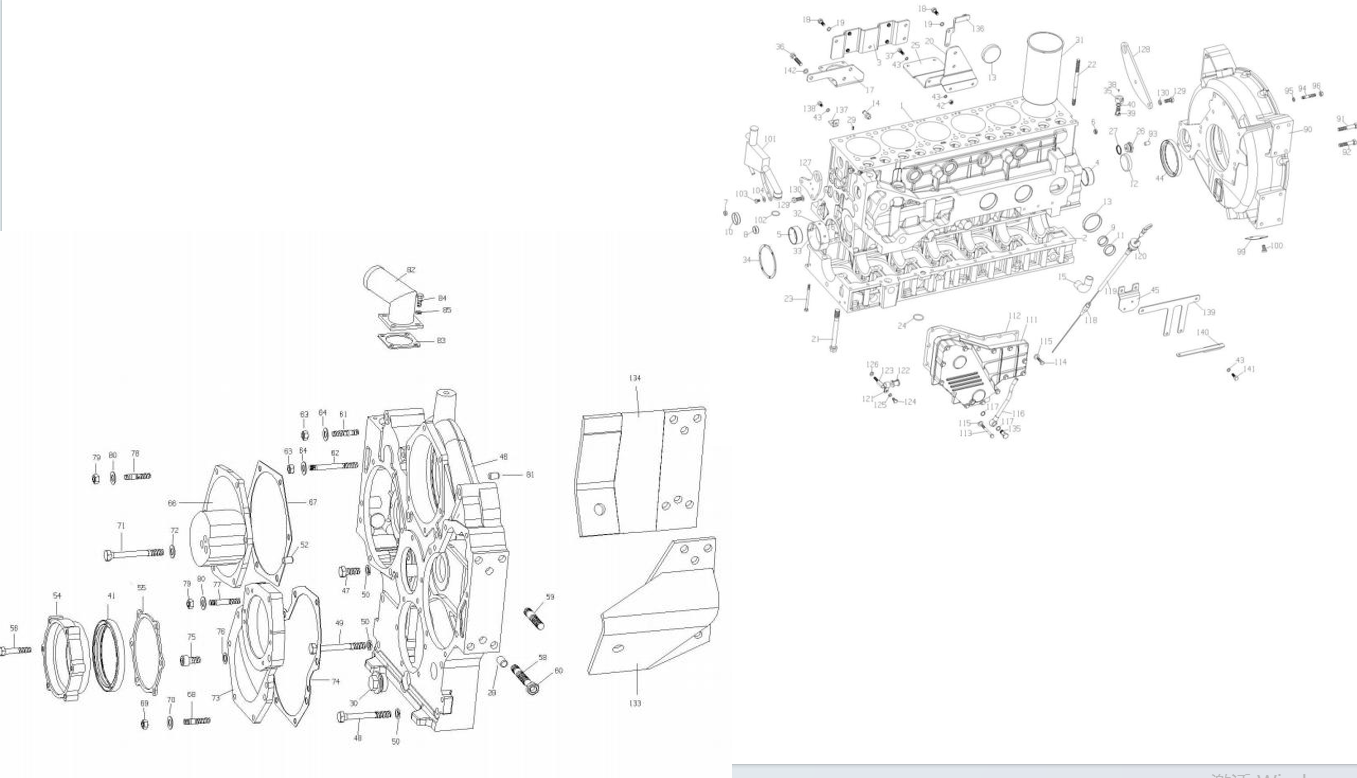

| - | Cylinder block assembly | AZ1540010004 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 1 | Cylinder block | AZ1540010010 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 2 | Crankcase | 61500010366C | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 3 | ECM bracket | VG1540110402 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 4 | Crankcase bush | VG1560010029 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| 5 | Crankcase bush | VG2600010990 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 6 | Core hole plug | 190003984080 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 17/7.3-ST-A3C N05564 | ||||||||
| 7 | Core hole plug | 190003989480 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 17/8-ST-A3C N05564 | ||||||||
| 8 | Core hole plug | 190003989204 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 28/12-ST-A3C N05564 | ||||||||
| 9 | Core hole plug | 190003989289 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 40/12-MSN05564 | ||||||||
| 10 | Core hole plug | 190003982121 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 45/12-MSN05564 | ||||||||
| 11 | Core hole plug | 190003989215 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 45/12-ST-A3C N05564 | ||||||||
| 12 | Core hole plug | 190003989288 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 65/14-ST-A3C N05564 | ||||||||
| 13 | Core hole plug | 190003989210 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 75/14-ST-A3C N05564 | ||||||||
| 14 | Connecting piece | VG2600130026 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 15 | Oil return elbow connector | VG2600070097 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 16 | Straight pin | 190003901604 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 12m6×26 | DIN | |||||||
| 17 | Mixer bracket | VG1092110023 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 18 | Bolt | Q150B1030 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 19 | Spring washer | 190003931142 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 20 | EPR top bracket | VG1560110407 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 21 | Headstock bolt | VG14010114 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | |||||||||
| 22 | Cylinder head stud | VG1500010215 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | |||||||||
| 23 | Bolt | 190003802493 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 | M8×110-8.8-ZN | DIN933 | |||||||
| 24 | Sealing ring | VG1400010032 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 25 | EPR bottom bracket | VG1540110429 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 26 | Main oil gallery screw plug | VG1460070011 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 27 | Sealing washer | VG2600010735 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 28 | Straight pin | 190003901604 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 12m6×26 | DIN | |||||||
| 29 | Spring type straight pin | 190003909626 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6×12 | DIN1481 | |||||||
| 30 | Bolt | 190003962051 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | CM 30×1.5-ST-A3C | DIN7604 | |||||||
| 31 | Cylinder liner | VG1540010006 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| 32 | Main bearing upper half | VG1540010021 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |||||||||
| 33 | Main bearing upper half | VG1540010022 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |||||||||
| 34 | Thrust washers | VG1500010125 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 35 | Spraying assembly | VG1560019090 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| 36 | Bolt | Q150B1240 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 37 | Bolt | 190003802424 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 38 | Spring type straight pin | 190003909603 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| 39 | Hollow bolt | 190003962621 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| 40 | Sealing washer | 190003098015 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| 41 | Front oil seal | VG1500010037 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 42 | Nut | 190003888452 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 43 | Spring washer | Q40308 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||||||||
| 44 | Rear oil seal | VG1047010050 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 45 | Bracket | VG1560110427 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 46 | Gear case | R61540010009 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 47 | Bolt | 190003802523 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | M 10×25-8.8-ZNDIN933 | ||||||||
| 48 | Bolt | 190003802561 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | M 10×75-8.8-ZNDIN933 | ||||||||
| 49 | Bolt | 190003802571 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 50 | Spring washer | 190003931122 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | B10-ZN DIN127 | ||||||||
| 51 | Gasket | VG288730061 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 52 | Straight pin | 190003901507 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 10m6×16 | DIN7 | |||||||
| 53 | Gasket | VG61000010134 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 54 | Front oil seal carrier | VG2600010928 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 55 | Joint | VG2600010934 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 56 | Bolt | 190011260039 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | M6×30-8.8-H.Y | GB/T5782 | |||||||
| 57 | Spring type straight pin | 190003900085 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6×12 | DIN1481 | |||||||
| 58 | Stud | 190003813628 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | M 12×30-8.8-ZN | DIN939 | |||||||
| 59 | Stud | 190003813638 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 60 | Nut | 190003888453 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | VM 12 8 DIN980 | ||||||||
| 61 | Stud | 190003813429 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | M8×22-8.8-ZNDIN933 | ||||||||
| 62 | Stud | 190003813470 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 63 | Hexagon nut | 190003871252 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | M8-8-ZN DIN934M | ||||||||
| 64 | Spring washer | 190003932023 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | B8-ZN DIN137 | ||||||||
| 65 | Stud | 190003813447 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 66 | Air compressor gear cover | VG1560010069 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 67 | Gasket | VG14010040 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 68 | Stud | 190003813429 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | M8×22-8.8-ZN | DIN933 | |||||||
| 69 | Hexagon nut | 190003871252 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | M8-8-ZN DIN934M | ||||||||
| 70 | Spring washer | 190003932023 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | B8-ZN DIN137 | ||||||||
| 71 | Bolt | 190003802576 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | M 10×90-8.8-ZN | DIN933 | |||||||
| 72 | Spring washer | 190003932024 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | B10-ZN DIN137 | ||||||||
| 73 | Camshaft gear cover | VG1500010008A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 74 | Camshaft gear cover gasket | VG14010070 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 75 | Bolt | 190003862524 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | M 10×20-8.8-ZN | DIN912 | |||||||
| 76 | Saddle spring washer | 190003932025 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | A10-ZN DIN137 | ||||||||
| 77 | Stud | 190003813443 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | M8×30-8.8-ZN | DIN933 | |||||||
| 78 | Stud | 190003813429 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | M8×22-8.8-ZN | DIN933 | |||||||
| 79 | Hexagon nut | 190003871252 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | M8-8-ZN DIN934M | ||||||||
| 80 | Spring washer | 190003932023 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | B8-ZN DIN137 | ||||||||
| 81 | Straight pin | 190003901507 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 10m6×16 | DIN7 | |||||||
| 82 | Oil filler | VG1500010004 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||||||
| Oil filler | VG1560010028 | 1 | 1 | 1 | |||||||||||||||||
| 83 | Oil filler gasket | VG14010086 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||||||
| 84 | Bolt | 190003802321 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 85 | Screw spring washer | 190003931082 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 90 | Flywheel housing | R61540010010 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 91 | Bolt | VG1500010062 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |||||||||
| 92 | Bolt | VG1500010101 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| 93 | Straight pin | 190003901604 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 94 | Stud | 190003813537 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |||||||||
| 95 | Spring washer | 190003931122 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | B10-ZN DIN127 | ||||||||
| 96 | Hexagon nut | 190003871305 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |||||||||
| 97 | Stud | 190003813527 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||||||
| 98 | Self-locking nut | 190003888452 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||||||
| 99 | Observation hole cover | VG1800210011 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 100 | Bolt | 190003802511 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 101 | Oil separator | VG1500019055 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 102 | O-ring | 190017510011 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 103 | Bolt | 190003802402 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 104 | Spring washer | 190003932023 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | B8-ZN DIN137 | ||||||||
| 105 | Clamp | VG31100040007 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 106 | Hose | VG12G00040038 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 107 | Hose clip | 190003989301 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||||||
| 108 | Hose | VG1500010174 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 109 | Clamp | VG609E110049 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 110 | Hose clip | 190003171356 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||||||
| 111 | Cover | VG1540010014A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 112 | Joint | VG1540010015A | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 113 | Bolt | 190003800467 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||||||||
| 114 | Bolt | 190003802437 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |||||||||
| 115 | Spring washer | 190003932023 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | B8-ZN DIN137 | ||||||||
| 116 | Connecting piece | VG1540110442 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 117 | Washer | 190003098014 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 118 | Pipe ass | VG2600010709 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 119 | Gauge | VG2600010705 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Gauge | VG1500019077 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 120 | Gauge | VG1500010500 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Gauge | VG1500010600 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 121 | Clamp piece | VG2600010647 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 122 | Hose clip | VG2600010638 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 123 | Supporting block | VG1500010031 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 124 | Bolt | 190003802411 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 125 | Spring washer | 190003931102 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 126 | Washer | 190003930521 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 127 | Eye-plate | VG1540010016 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 128 | Eye-plate | VG1540010017 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||
| Eye-plate | VG1540010020 | 1 | 1 | 1 | 1 | 1 | |||||||||||||||
| 129 | Bolt | 190011350058 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 130 | Spring washer | 190003931142 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
| 131 | Bolt | 190003802442 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | Q150B0840 | ||||||||
| 132 | Washer | 190003930261 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||||||||
| 133 | Support | VG9100590006 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 134 | Support | VG9100590009 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 135 | Hollow bolt | 190003962621 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | M 14 | ||||||||
| 136 | ECM harness bracket | VG1540110437 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 137 | Harness bracket | VG1540110436 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 138 | Bolt | Q150B0820 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 139 | Pipe bracket | VG1540110440 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 140 | Harness bracket | VG1540110438 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 141 | Bolt | Q350B0825 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
| 142 | Spring washer | Q40312 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||||||||
