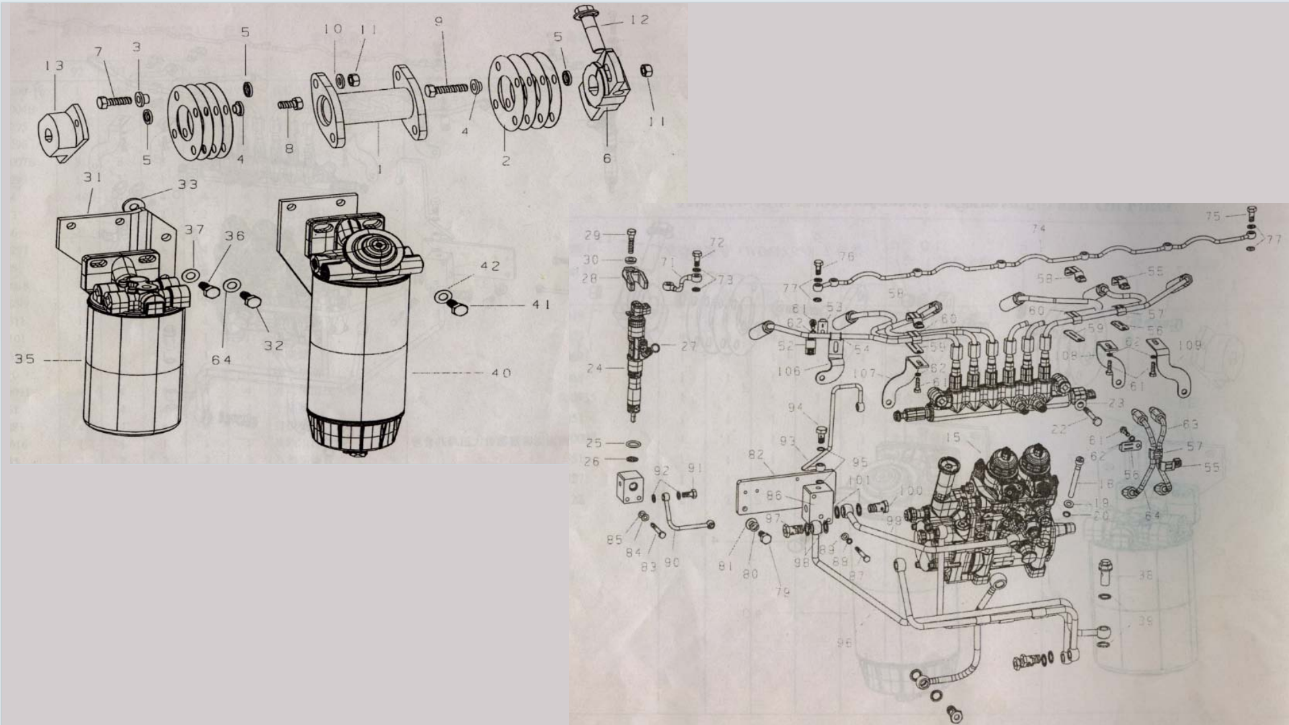

HOWO HEAVY DUTY TRUCK WD615 NATIONAL Ⅲ DIESEL ENGINE (08 COMMON RAIL,FOUR VALVES,7 SETS OF BOLTS,WITHOUT EVB,DUAL CYLINDER) FUEL SYSTEM-1

By ALEX-86 16215315999 July 18th, 2026 37 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

1	VG1540080300	1	1	1	1	1	Double bar air compressor coupling
2	VG1540080004B	8	8	8	8	8	Elastic connection piece
3	VG1540080295	4	4	4	4	4	bushing
4	VG1540080296	4	4	4	4	4	bushing
5	VG1540080007B	8	8	8	8	8	washer
6	VG1540080293	1	1	1	1	1	Angle Adjustment Plate
7	90003802544	4	4	4	4	4	Hexagonal head bolt
8	90003802513	2	2	2	2	2	Hexagonal head bolt
9	90003802536	2	2	2	2	2	Hexagonal head bolt
10	VG1540080297	4	4	4	4	4	washer
11	90003871308	6	6	6	6	6	hex nut
12	VG1500089018	1	1	1	1	1	Hexagonal flange bolt
13	VG1540080299	1	1	1	1	1	flange
14 15 16	R61540080311 R61540080101 R61540080312	1 1 1	1 1 1	1 1 1	1 1 1	1 1 1	fastening nut fuel feed pump Half round health
17	90014350010	1	1	1	1	1	spring washer
18	VG1540080091	4	4	4	4	4	Hexagonal socket head screw
19	90003930261	4	4	4	4	4	flat washer
20	VG188250083	4	4	4	4	4	Self-locking washer
21	R61540080016	1	1	1	1	1	Common rail components
22	90003802455	2	2	2	2	2	Hexagonal head bolt
23	90003932023	2	2	2	2	2	Waveform elastic gasket
24	R61540080017A	6	6	6	6	6	Injector Assembly
25	VG1540080018A	6	6	6	6	6	Fuel injector sealing ring
26	VG1540080019B	6	6	6	6	6	Fuel injector gasket
27	VG1540080095	6	6	6	6	6	Seal ring
28	VG1540080021C	6	6	6	6	6	Injector compression block
29	Q150B0835TF2	6	6	6	6	6	Hexagonal head bolt
30	VG1540080024	6	6	6	6	6	Spherical pad diagram
31	VG1540080226	1	1	1	1	1	Fuel filter bracket
32	90003802523	2	2	2	2	2	Hexagonal head bolt
33	90003930012	2	2	2	2	2	large washer
34	90003932024	2	2	2	2	2	Waveform elastic gasket
35	VG1540080330 VG1092080036 VG1540080310	1 1 1	1 1 1	1 1 1	1 1 1	1 1 1	Fuel fine filter assembly Fuel fine filter seat Rotary fuel fine filter
36	90003802523	2	2	2	2	2	hex head bolt
37	90003932024	2	2	2	2	2	gasket
38	VG1540080022	1	1	1	1	1	Diesel filter overflow valve
39	VG2600080200	2	2	2	2	2	gasket
40	VG1092080032 VG1540080311 VG1092080033	1 1 1	1 1 1	1 1 1	1 1 1	1 1 1	Fuel coarse filter assembly Rotary fuel coarse filter Rotary fuel coarse filter seat“
41	VG1092080034	1	1	1	1	1	Filter cup and water level sensor assembly
42	90003802523	2	2	2	2	2	hex head bolt
43	90003932024	2	2	2	2	2	Waveform elastic gasket
44	VG1540080023	1	1	1	1	1	Steel wire braided pipe
45	90003962621	1	1	1	1	1	Hollow bolt A8M14 × 1.5
46	VG2600080200	2	2	2	2	2	gasket
47	VG1099089098	1	1	1	1	1	fuel pipe
48	VG1099089099	1	1	1	1	1	fuel pipe
49	90003962621	3	3	3	3	3	Hollow bolt A8M14 × 1.5
50	VG2600080200	6	6	6	6	6	gasket
51	VG1540080040	1	1	1	1	1	High pressure oil pipe assembly
52	VG1540080057	1	1	1	1	1	Single tube clamp upper piece component
53	VG1540080048	1	1	1	1	1	Single tube clamp lower piece
54	VG1540080049	1	1	1	1	1	Single tube clamp gasket
55	VG1540080058	3	3	3	3	3	Double tube clamp upper piece component
56	VG1540080052	3	3	3	3	3	Double tube clamp lower piece
57	VG1540080053	3	3	3	3	3	Double tube clamp gasket
58	VG1540080059	2	2	2	2	2	Three tube clamp upper piece component
59	VG1540080055	2	2	2	2	2	Three pipe clamp lower piece
60	VG1540080056	2	2	2	2	2	Three pipe clamp gasket
61	90003802331	6	6	6	6	6	Hexagonal head bolt
62	90014350003	6	6	6	6	6	spring washer
63	VG1540089093	1	1	1	1	1	High pressure oil pipe component (1)
64	VG1540089094	1	1	1	1	1	High pressure oil pipe component (II)
65	VG1560070050	1	1	1	1	1	Lubricating oil pipe assembly of air compressor
66	90003962607	1	1	1	1	1	hollow bolt
67 68	VG9003080003 VG1540089097	2 1	2 1	2 1	2 1	2 1	Sealing gasket diagram Lubricating oil return pipe component“
69	90003962621	1	1	1	1	1	hollow bolt
70	VG2600080200	2	2	2	2	2	Sealing gasket writing
71	VG1540080065B	6	6	6	6	6	Fuel injector short pipe assembly
72	VG1540080081	12	12	12	12	12	Hollow Butterfly
73	VG260080201	24	24	24	24	24	Sealing gasket country
74	VG1099089066	1	1	1	1	1	Fuel injector return pipe assembly
75	VG1540080081	6	6	6	6	6	hollow bolt
76	90003962603	1	1	1	1	1	hollow bolt
77	VG2600080200	14	14	14	14	14	gasket
78	VG1540080067	1	1	1	1	1	Fuel temperature sensor holder
79	Q150B0645	2	2	2	2	2	Hexagonal head bolt
80	90014350003	2	2	2	2	2	spring washer
81	90014330002	2	2	2	2	2	flat washer
82	VG1540080298	1	1	1	1	1	fixed plate
83	90011350026	2	2	2	2	2	Hexagonal head bolt
84	90003931122	2	2	2	2	2	spring washer
85	90003930271	2	2	2	2	2	flat washer
86	VG1540080071	1	1	1	1	1	Return oil connection seat
87	Q150B0645	2	2	2	2	2	Hexagonal head bolt
88	90014350003	2	2	2	2	2	spring washer
89	90014330002	2	2	2	2	2	flat washer
90	VG1540080072	1	1	1	1	1	Back to YouTube
91	90003962603	2	2	2	2	2	hollow bolt
92	VG2600080201	4	4	4	4	4	gasket
93	VG1540089073	1	1	1	1	1	Common rail component return oil pipe
94	90003962607	1	1	1	1	1	Hollow bolt A4M10 × 1
95	VG9003080003	2	2	2	2	2	gasket
96	VG1099089074	1	1	1	1	1	Diesel filter return pipe
97	90003962621	1	1	1	1	1	Hollow bolt A8 M14 × 1.5
98 99	VG2600080200 VG1540089096	2 1	2 1	2 1	2 1	2 1	Sealing gasket Oil pump return pipe (supply and reception pump)“
90	VG1540080072	1	1	1	1	1	Back to YouTube
91	90003962603	2	2	2	2	2	hollow bolt
92	VG2600080201	4	4	4	4	4	gasket
93	VG1540089073	1	1	1	1	1	Common rail component return oil pipe
94	90003962607	1	1	1	1	1	Hollow bolt A4 M10 × 1
95	VG9003080003	2	2	2	2	2	Sealing gasket diagram
96	VG1540089074	1	1	1	1	1	Diesel filter return pipe
97	90003962621	1	1	1	1	1	Hollow bolt A8M14 × 1.5
98	VG2600080200	2	2	2	2	2	gasket
99	VG1540089096	1	1	1	1	1	Oil pump return pipe
100	90003962621	1	1	1	1	1	Hollow bolt A8M14 × 1.5
101	VG2600080200	2	2	2	2	2	gasket
102	VG1540080023	1	1	1	1	1	Steel wire braided pipe
103	90003962621	1	1	1	1	1	Hollow bolt A8M14 × 1.5
104	VG2600080200	2	2	2	2	2	gasket
105	90003171697	3	3	3	3	3	Clamp
106	VG1540080076A	1	1	1	1	1	Support frame (1)
107	VG1540080077	1	1	1	1	1	Support frame (2)
108	VG1540080078A	1	1	1	1	1	Support frame (III)
109	VG1540080079	1	1	1	1	1	Support frame (4)
110	90003871252	1	1	1	1	1	Type 1 hex nut
111	90003932023	1	1	1	1	1	Wave spring washers
