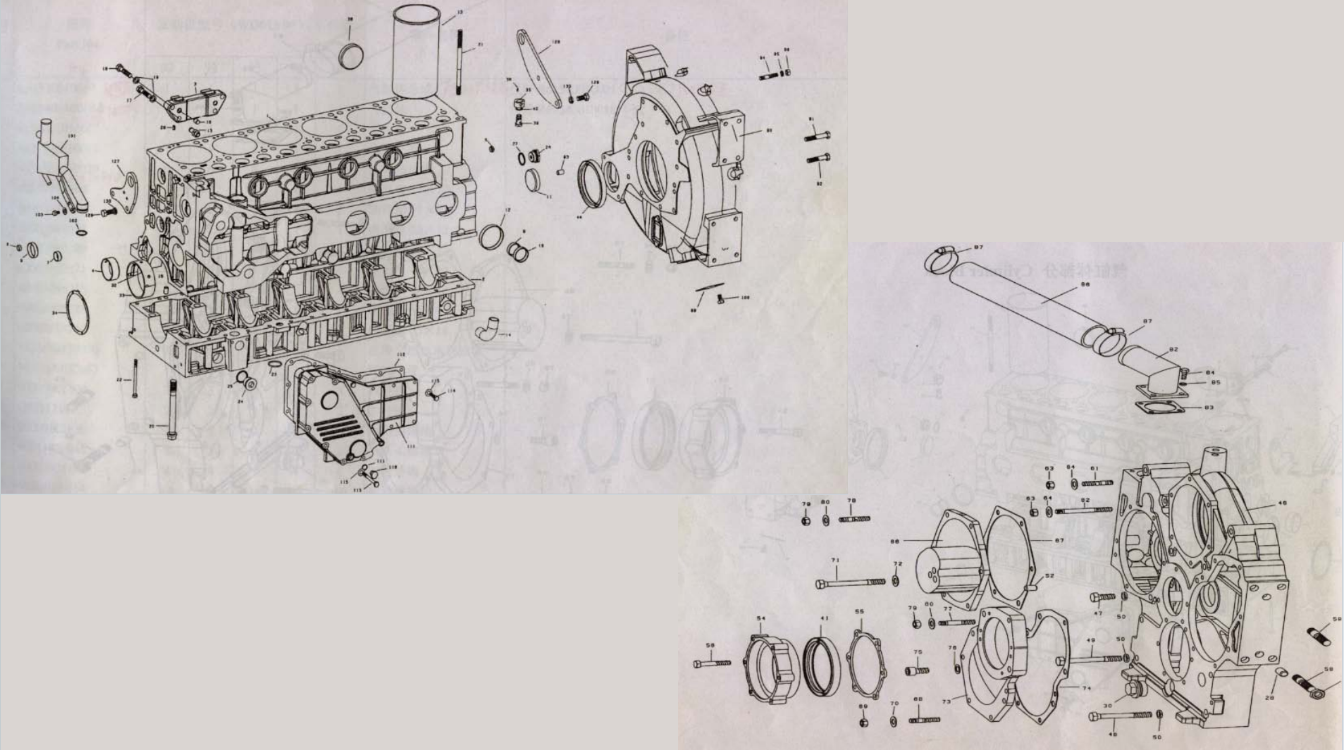

| - | R61540010067 | 1 | 1 | 1 | 1 | 1 | Rear cylinder block assembly 2 1 |
| 1 | R61540010068A |
1 | 1 | 1 | 1 | 1 | |
| 2 | 61500010366C | 1 | 1 | 1 | 1 | 1 | crankcase |
| 3 | VG1540010019 | 1 | 1 | 1 | 1 | 1 | Oil pump bracket |
| 4 | VG1560010029 | 6 | 6 | 6 | 6 | 6 | Convex shaft liner praise |
| 5 | 90003984080 | 1 | 1 | 1 | 1 | 1 | Bowl shaped stopper 17 × 7.3 |
| 6 | 90003989480 | 1 | 1 | 1 | 1 | 1 | Bowl shaped stopper 17 × 8 |
| 7 | 90003989204 | 1 | 1 | 1 | 1 | 1 | Bowl shaped stopper 28 × 12 |
| 8 | 90003989289 | 4 | 4 | 4 | 4 | 4 | Bowl shaped stopper 40 × 12 |
| 9 | 90003982121 | 4 | 4 | 4 | 4 | 4 | Bowl shaped stopper 45 × 12 |
| 10 | 90003989215 | 4 | 4 | 4 | 4 | 4 | Bowl shaped stopper 45 × 12 |
| 11 | 90003989288 | 1 | 1 | 1 | 1 | 1 | Bowl shaped stopper 65 × 14 |
| 12 | 90003989210 | 9 | 9 | 9 | 9 | 9 | Bowl shaped stopper 75 × 14 |
| 13 | VG2600130026 | 1 | 1 | 1 | 1 | 1 | Water pipe joint of water-cooled air compressor |
| 14 | VG2600070097 | 1 | 1 | 1 | 1 | 1 | Return oil bend pipe |
| 15 | 90003901604 | 3 | 3 | 3 | 3 | 3 | cylindrical pin |
| 16 | Q5211216 | 2 | 2 | 2 | 2 | 2 | cylindrical pin |
| 17 | 90003802650 | 2 | 2 | 2 | 2 | 2 | hex head bolt |
| 18 | 90011350045 | 2 | 2 | 2 | 2 | 2 | hex head bolt |
| 19 | 90003931142 | 4 | 4 | 4 | 4 | 4 | spring washer |
| 20 | VG14010114 | 14 | 14 | 14 | 14 | 14 | Main bearing bolt |
| 21 | VG1500010185 | 7 | 7 | 7 | 7 | 7 | Cylinder head bolt |
| 22 | 90003802493 | 27 | 27 | 27 | 27 | 27 | hex head bolt |
| 23 | VG1400010032 | 2 | 2 | 2 | 2 | 2 | Seal ring |
| 24 | 90003962050 | 1 | 1 | 1 | 1 | 1 | Hexagonal socket plug |
| 25 | VG2600010735 | 1 | 1 | 1 | 1 | 1 | Composite gasket |
| 26 | VG1460070011 | 1 | 1 | 1 | 1 | 1 | Rear plug of main oil passage |
| 27 | VG2600010735 | 1 | 1 | 1 | 1 | 1 | Composite gasket |
| 28 | 90003901604 | 6 | 6 | 6 | 6 | 6 | cylindrical pin |
| 29 | 90003909626 | 6 | 6 | 6 | 6 | 6 | spring pin |
| 30 | 90003962051 | 1 | 1 | 1 | 1 | 1 | Hexagonal head plug |
| 31 | VG1540010006 | 6 | 6 | 6 | 6 | 6 | cylinder liner |
| 32 | VG1540010007 (VG1540010021) |
7 | 7 | 7 | 7 | 7 | Main shaft tile upper tile |
| 33 | VG1540010008 | 7 | 7 | 7 | 7 | 7 | Main shaft tile lower tile |
| 34 | VG1500010125 | 2 | 2 | 2 | 2 | 2 | Push plate payment |
| 35 | H61560019090 (VG1560019090) |
6 | 6 | 6 | 6 | 6 | Oil nozzle assembly |
| 36 | H61560019045 | 6 | 6 | 6 | 6 | 6 | Oil nozzle body |
| 37 | H61560019087 | 6 | 6 | 6 | 6 | 6 | Oil nozzle |
| 38 | 90003909603 | 6 | 6 | 6 | 6 | 6 | spring pin |
| 39 | 90003962621 | 6 | 6 | 6 | 6 | 6 | hollow bolt |
| 40 | 90003098015 | 6 | 6 | 6 | 6 | 6 | gasket |
| 41 | VG1047010038 | 1 | 1 | 1 | 1 | 1 | Front oil seal |
| 43 | VG1500010046 | 1 | 1 | 1 | 1 | 1 | Main shaft tile payment |
| 45 | VG1047010050 | 1 | 1 | 1 | 1 | 1 | After oil sealing |
| 46 | 61557010008 |
1 | 1 | 1 | 1 | 1 | Timing gear chamber |
| 47 | 90003802523 | 3 | 3 | 3 | 3 | 3 | Hexagonal head bolt“ |
| 48 | 90003802561 | 6 | 6 | 6 | 6 | 6 | hex head bolt |
| 49 | 90003802571 | 1 | 1 | 1 | 1 | 1 | hex head bolt |
| 50 | 90003931122 | 9 | 9 | 9. | 9 | 9 | spring washer |
| 51 | VG288730061 | 1 | 1 | 1 | 1 | 1 | ○ Type sealing ring |
| 52 | 90003901507 | 2 | 2 | 2 | 2 | 2 | cylindrical pin |
| 53 | VG61000010134 | 1 | 1 | 1 | 1 | 1 | Seal ring |
| 54 | VG2600010928 | 1 | 1 | 1 | 1 | I | Front oil seal seat |
| 55 | VG2600010934 | 1 | 1 | 1 | 1 | 1 | Front oil seal seat gasket |
| 56 | 90011260039 | 6 | 6 | 6 | 6 | 6 | hex head bolt |
| 57 | 90003900085 | 4 | 4 | 4 | 4 | 4 | spring pin |
| 58 | 90003813628 | 6 | 6 | 6 | 6 | 6 | double-ended stud |
| 59 | 90003813638 | 2 | 2 | 2 | 2 | 2 | double-ended stud |
| 60 | 90003888453 | 8 | 8 | 8 | 8 | 8 | Type 2 all metal hexagonal lock nut |
| 61 | 90003813429 | 3 | 3 | 3 | 3 | 3 | double-ended stud |
| 62 | 90003813470 | 2 | 2 | 2 | 2 | 2 | double-ended stud |
| 63 | 90003871252 | 6 | 6 | 6 | 6 | 6 | Type 1 hex nut |
| 64 | 90003932023 | 8 | 8 | 8 | 8 | 8 | Wave spring washers |
| 65 | 90003813447 | 1 | 1 | 1 | 1 | 1 | double-ended stud |
| 66 | VG2600010830 | 1 | 1 | 1 | 1 | 1 | Air compressor gear cover |
| 67 | VG14010040 | 1 | 1 | 1 | 1 | 1 | Air compressor gear cover gasket |
| 68 | 90003813429 | 5 | 5 | 5 | 5 | 5 | double-ended stud |
| 69 | 90003871252 | 5 | 5 | 5 | 5 | 5 | Type 1 hex nut |
| 70 | 90003932023 | 5 | 5 | 5 | 5 | 5 | Wave spring washers |
| 71 | 90003802576 | 1 | 1 | 1 | 1 | 1 | hex head bolt |
| 72 | 90003932024 | 1 | 1 | 1 | 1 | 1 | Wave spring washers |
| 73 | VG1500010008A | 1 | 1 | 1 | 1 | 1 | Camshaft gear cover |
| 74 | VG14010070 | 1 | 1 | 1 | 1 | 1 | Camshaft gear cover gasket |
| 75 | 90003862524 | 2 | 2 | 2 | 2 | 2 | Cylindrical head hexagon socket screw |
| 76 | 90003932025 | 2 | 2 | 2 | 2 | 2 | Curved spring washers |
| 77 | 90003813443 | 1 | 1 | 1 | 1 | 1 | double-ended stud |
| 78 | 90003813429 | 5 | 5 | 5 | 5 | 5 | double-ended stud |
| 79 | 90003871252 | 6 | 6 | 6 | 6 | 6 | Type 1 hex nut |
| 80 | 90003932023 | 6 | 6 | 6 | 6 | 6 | Wave spring washers |
| 81 | 90003901507 | 2 | 2 | 2 | 2 | 2 | cylindrical pin |
| 82 | VG1560010028 | 1 | 1 | 1 | 1 | 1 | Fuel short tube component |
| 83 | VG14010086 | 1 | 1 | 1 | 1 | 1 | Fuel short tube gasket |
| 84 | 90003802321 | 4 | 4 | 4 | 4 | 4 | hex head bolt |
| 85 | 90003931082 | 4 | 4 | 4 | 4 | 4 | Lightweight spring washer |
| 86 | VG1500010079 | 2 | 2 | 2 | 2 | 2 | Rubber hose with fiber interlayer |
| 87 | 90003989306 | 2 | 2 | 2 | 2 | 2 | hose clamp |
| 88 | VG2600010522 | 1 | 1 | 1 | 1 | 1 | Fuel pipe component |
| 89 | VG2600010489 | 1 | 1 | 1 | 1 | 1 | Fuel cap assembly |
| 90 | VG1500010010 | 1 | 1 | 1 | 1 | 1 | flywheel housing |
| 91 | VG1500010062 | 7 | 7 | 7 | 7 | 7 | Flywheel housing bolt |
| 92 | VG1500010101 | 6 | 6 | 6 | 6 | 6 | Flywheel housing bolt |
| 93 | 90003901604 | 2 | 2 | 2 | 2 | 2 | cylindrical pin |
| 94 | 90003813537 | 12 | 12 | 12 | 12 | 12 | double-ended stud |
| 95 | 90003931122 | 12 | 12 | 12 | 12 | 12 | spring washer |
| 96 | 90003871305 | 12 | 12 | 12 | 12 | 12 | Type 1 hex nut |
| 97 | 90003813527 | 3 | 3 | 3 | 3 | 3 | double-ended stud |
| 98 | 90003888452 | 3 | 3 | 3 | 3 | 3 | Type 2 all metal hexagonal lock nut |
| 99 | VG1800210011 | 1 | 1 | 1 | 1 | 1 | Inspection hole cover |
| 100 | 90003802511 | 2 | 2 | 2 | 2 | 2 | hex head bolt |
| 101 | VG1540010011 | 1 | 1 | 1 | 1 | 1 | Oil and gas separator assembly |
| 102 | 90017510011 | 1 | 1 | 1 | 1 | 1 | O-ring rubber seal |
| 103 | 90003802402 | 2 | 2 | 2 | 2 | 2 | hex head bolt |
| 104 | 90003932023 | 2 | 2 | 2 | 2 | 2 | Wave spring washers |
| 105 | VG31100040007 | 2 | 2 | 2 | 2 | 2 | pipe clamp |
| 106 | VG12G00040038 | 1 | 1 | 1 | 1 | 1 | Rubber hose with fiber interlayer |
| 107108 | 90003989301 VG2600011106 |
31 | 31 | 31 | 31 | 31 | Hose clamp Rubber hose without fiber interlayer“ |
| 109 | VG609E110049 | 1 | 1 | 1 | 1 | 1 | fixed plate |
| 110 | 90003171356 | 3 | 3 | 3 | 3 | 3 | Clamp |
| 111 | VG1540010014A | 1 | 1 | 1 | 1 | 1 | Oil Cooler Cover |
| 112 | VG1540010015A | 1 | 1 | 1 | 1 | 1 | Oil cooler cover gasket |
| 113 | 90003800467 | 8 | 8 | 8 | 8 | 8 | hex head bolt |
| 114 | 90003802437 | 11 | 11 | 11 | 11 | 11 | hex head bolt |
| 115 | 90003932023 | 19 | 19 | 19 | 19 | 19 | Wave spring washers |
| 116 | 90003962020 | 1 | 1 | 1 | 1 | 1 | Hexagonal head plug |
| 117 | 90003098014 | 1 | 1 | 1 | 1 | 1 | gasket |
| 119 | VG2600010705 | 1 | 1 | 1 | 1 | 1 | Lower component of oil dipstick tube |
| 120 | VG1500010600 | 1 | 1 | 1 | 1 | 1 | Component assembly on dipstick tube |
| 121 | VG2600010647 | 1 | 1 | 1 | 1 | 1 | Single tube clamp |
| 122 | VG2600010638 | 1 | 1 | 1 | 1 | 1 | Rubber pipe clamp |
| 123 | VG1500010031 | 1 | 1 | 1 | 1 | 1 | support block |
| 124 | 90003802411 | 1 | 1 | 1 | 1 | 1 | hex head bolt |
| 125 | 90003931102 | 1 | 1 | 1 | 1 | 1 | spring washer |
| 126 | 90003930521 | 1 | 1 | 1 | 1 | 1 | flat washer |
| 127 | VG1540010012 | 1 | 1 | 1 | 1 | 1 | Engine front suspension ring |
| 128 | VG1540010013 | 1 | 1 | 1 | 1 | 1 | Engine rear suspension ring |
| 129 | 90011350058 | 4 | 4 | 4 | 4 | 4 | hex head bolt |
| 130 | 90003931142 | 4 | 4 | 4 | 4 | 4 | spring washer |
| 131 | 90003802442 | 8 | 8 | 8 | 8 | 8 | Hexagonal head bolt M8 × 40 |
| 132 | 90003930261 | 8 | 8 | 8 | 8 | 8 | flat washer |
| 133 | VG9100590006 | 1 | 1 | 1 | 1 | 1 | Left bracket assembly |
| 134 | VG9100590009 | 1 | 1 | 1 | 1 | 1 | right bracket |
