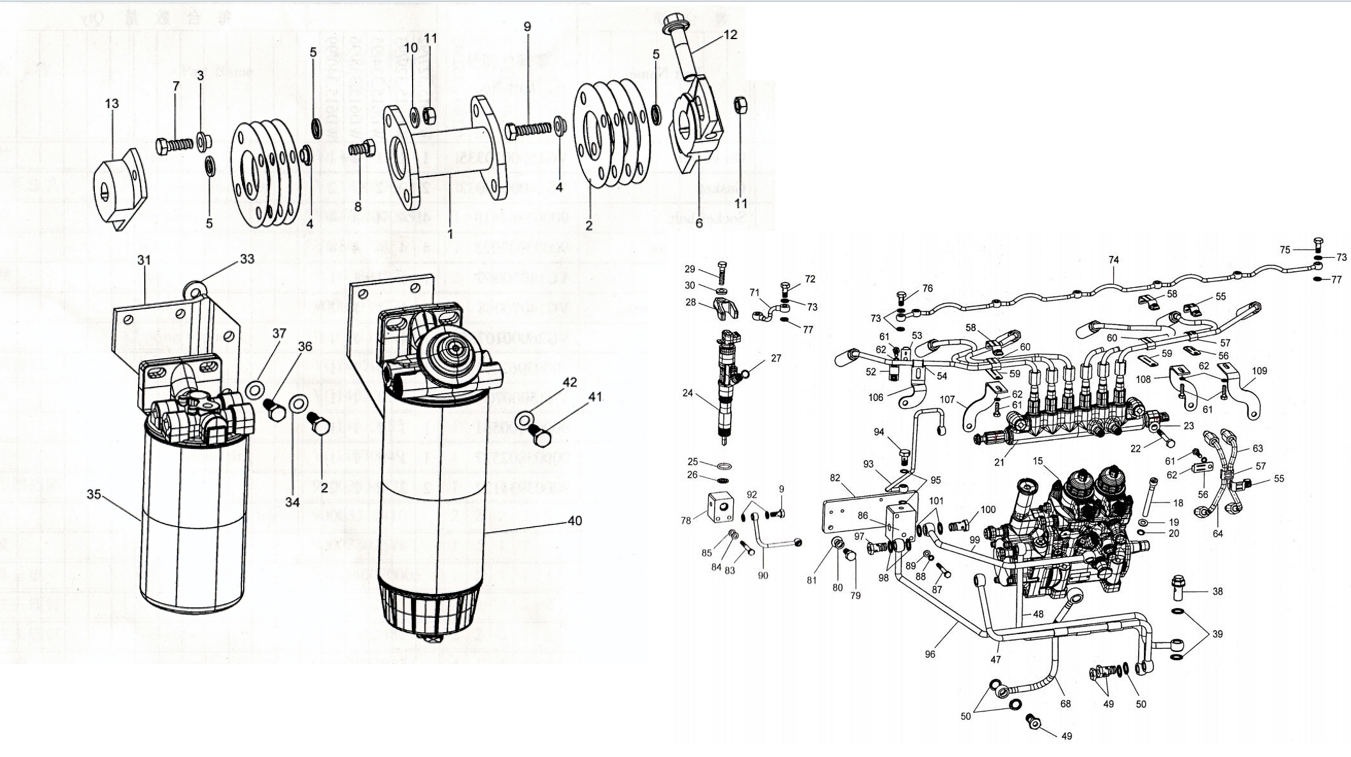

HOWO HEAVY DUTY TRUCK WD615 EURO Ⅲ (08 COMMON RAIL,FOUR VALVES,7 SETS OF BOLTS,WITHOUT EVB,SINGLE CYLINDER) FUEL SYSTEM-1

By ALEX-86 16215315999 March 3rd, 2026 105 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

1	coupling flange	VG1540080291A	1	1	1	1	1
2	spring sheets	VG1540080004B	8	8	8	8	8
3	bush	VG1540080295	4	4	4	4	4
4	bush	VG1540080296	4	4	4	4	4
5	washer	VG1540080007B	8	8	8	8	8
6	injection timing adjusting block	VG1540080293	1	1	1	1	1
7	bolt	90003802544	4	4	4	4	4
8	bolt	90003802513	2	2	2	2	2
9	bolt	90003802536	2	2	2	2	2
10	Washer	VG1540080297	4	4	4	4	4
11	nut	90003871308	6	6	6	6	6
12	bolt	VG1500089018	1	1	1	1	1
13	flange	VG1540080292A	1	1	1	1	1
14	nut	R61540080311	1	1	1	1	1
15	injection pump	R61540080101	1	1	1	1	1
16	woodruff key	R61540080312	1	1	1	1	1
17	spring washer	90014350010	1	1	1	1	1
18	socker bolt	VG1540080091	4	4	4	4	4
19	Washer	90003930261	4	4	4	4	4
20	Washer	VG188250083	4	4	4	4	4
21	Rail	R61540080016	1	1	1	1	1
22	Bolt	90003802455	2	2	2	2	2
23	Spring washer	90003932023	2	2	2	2	2
24	Fuel injector assembly	VG1540080017	6	6	6	6	6
25	O-ring	VG1540080018A	6	9	6	6	6
26	Washer	VG1540080019B	6	6	9	6	6
27	0-ring	VG1540080095	6	6	6	6	6
28	Injector clamp	VG1540080021C	6	6	6	6	6
29	Bolt	Q150B0835TF2	6	9	6	6	6
30	Spherical washer	VG1540080024	6	6	6	6	6
31	Bracket	VG1540080026	1	1	1	1	1
32	Bolt	90003802523	2	2	2	2	2
33	Washer	90003930012	2	2	2	2	2
34	Spring washer	90003932024	2	2	2	2	2
35	Fuel filter	VG1540080030	1	1	1	1	1
36	Bolt	90003802523	2	2	2	2	2
37	Washer	90003932024	2	2	2	2	2
38	Overflow valve	VG1540080022	1	1	1	1	1
39	Washer	VG2600080200	2	2	2	2	2
40	Fuel filter	VG1540080032	1	1	1	1	1
41	Bolt	90003802523	2	2	2	2	2
42	Spring washer	90003932024	2	2	2	2	2
43	Reinforced hose	VG1540080023	1	1	1	1	1
44	Hollow bolt	90003962621	1	1	1	1	1
45	Washer	VG2600080200	2	2	2	2	2
46	Hose	VG1540080156	1	1	1	1	1
47	Hose	VG1540080098	1	1	1	1	1
48	Hose	VG1540080099	1	1	1	1	1
49	Hollow bolt	90003962621	3	3	3	3	3
50	Washer	VG2600080200	6	6	6	6	6
51	High-pressure fuel line	VG1540080040	1	1	1	1	1
52	Clamp-upper piece	VG1540080057	1	1	1	1	1
53	Clamp-lower piece	VG1540080048	1	1	1	1	1
54	Gasket	VG1540080049	1	1	1	1	1
55	Clamp-upper piece	VG1540080058	3	3	3	3	3
56	Clamp-lower piece	VG1540080052	3	3	3	3	3
57	Gasket	VG1540080053	3	3	3	3	3
58	Clamp-upper piece	VG1540080059	2	2	2	2	2
59	Clamp-lower piece	VG1540080055	2	2	2	2	2
60	Gasket	VG1540080056	2	2	2	2	2
61	Bolt	90003802331	6	6	6	6	6
62	Spring washer	90014350003	6	6	6	6	6
63	Injection pipe(1)	VG1540080093	1	1	1	1	1
64	Injection pipe(2)	VG1540080094	1	1	1	1	1
65	Oil line assembly	VG1560070012A	1	1	1	1	1
66	Hollow bolt	90003962607	1	1	1	1	1
67	Washer	90003098010	2	2	2	2	2
68	Oil return line	VG1540080097	1	1	1	1	1
69	Hollow bolt	90003962621	1	1	1	1	1
70	Washer	VG2600080200	2	2	2	2	2
71	Fuel leak-off line	VG1540080065B	6	6	6	6	6
72	Hollow bolt	VG1540080081	12	12	12	12	12
73	Washer	VG260080201	24	24	24	24	24
74	Fuel leak-off line assembly	VG1540080066	1	1	1	1	1
75	Hollow bolt	VG1540080081	6	6	6	6	6
76	Hollow bolt	90003962603	1	1	1	1	1
77	Washer	VG2600080200	14	14	14	14	14
78	Fuel temp sensor bracket	VG1540080067	1	1	1	1	1
79	Bolt	Q150B0645	2	2	2	2	2
80	Spring washer	90014350003	2	2	2	2	2
81	Washer	90014330002	2	2	2	2	2
82	Mounting plate	VG1540080070	1	1	1	1	1
83	Bolt	90011350026	2	2	2	2	2
84	Spring washer	90003931122	2	2	2	2	2
85	Washer	90003930271	2	2	2	2	2
86	Oil return bracket	VG1540080071	1	1	1	1	1
87	Bolt	Q150B0645	2	2	2	2	2
88	Spring washer	90014350003	2	2	2	2	2
89	Washer	90014330002	2	2	2	2	2
90	Fuel leak-off line	VG1540080072	1	1	1	1	1
91	Hollow bolt	90003962603	2	2	2	2	2
92	Sealing washer	VG2600080201	4	4	4	4	4
93	Fuel return pipe	VG1540080073	1	1	1	1		1
94	Hollow bolt	90003962607	1	1	1	1		1
95	Sealing washer	90003098010	2	2	2	2		2
96	Fuel retur pipe(to filter)	VG1540080074	1	1	1	1		1
97	Hollow bolt	90003962621	1	1	1	1		1
98	Sealing washer	VG2600080200	2	2	2	2		2
99	Fuel return pipe(o injectionpump)	VG1540080096	1	1	1	1		1
100	Hollow bolt	90003962621	1	1	1	1		1
101	Sealing washer	VG2600080200	2	2	2	2		2
102	Wire braided pipe	VG1540080023	1	1	1	1		1
103	Hollow bolt	90003962621	1	1	1	1		1
104	Sealing washer	VG2600080200	2	2	2	2		2
105	Pipe clip	90003171697	3	3	3	3		3
106	Supporting plate(1)	VG1540080076A	1	1	1	1		1
107	Supporting plate(2)	VG1540080077	1	1	1	1		1
108	Supporting plate(3)	VG1540080078A	1	1	1	1		1
109	Supporting plate(4)	VG1540080079	1	1	1	1		1
110	Nut	90003871252	1	1	1	1		1
111	Washer	90003932023	1	1	1	1		1
