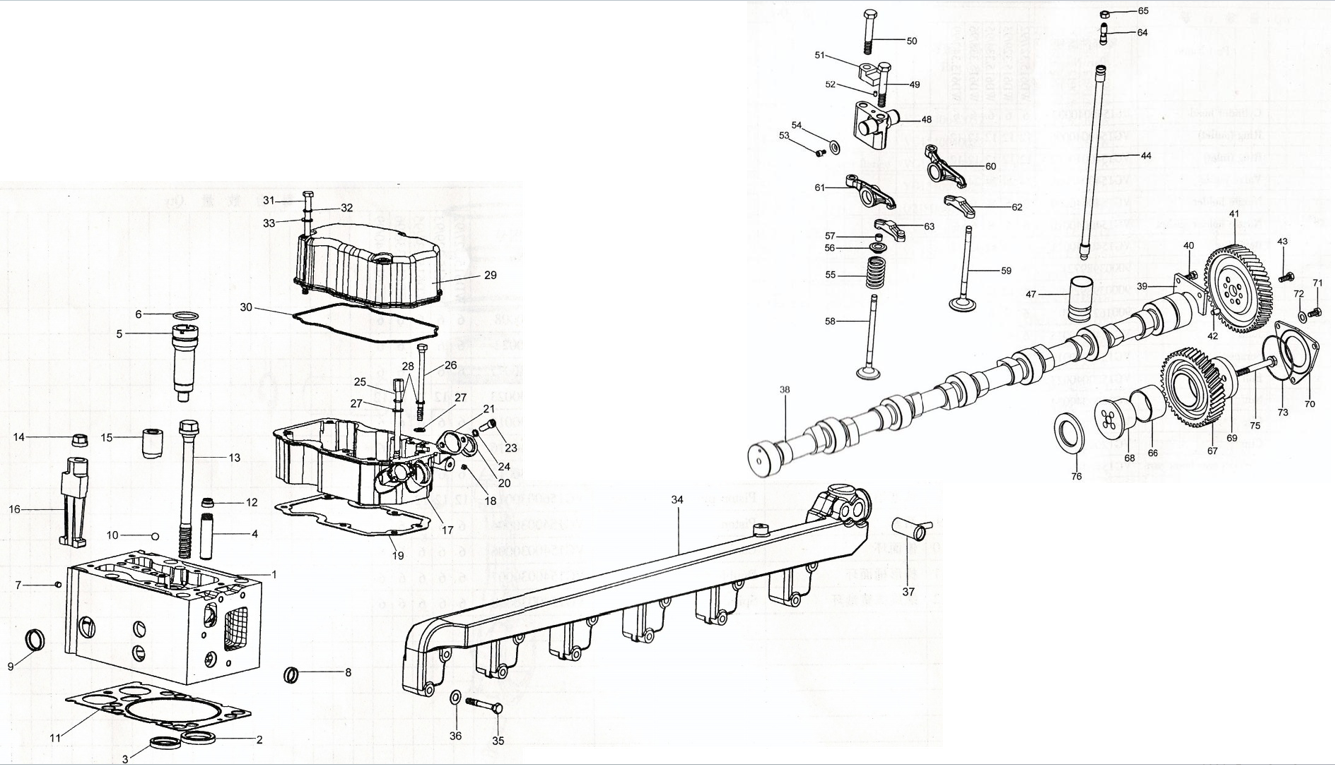

HOWO HEAVY DUTY TRUCK WD615 EURO Ⅲ (08 COMMON RAIL,FOUR VALVES,7 SETS OF BOLTS,WITHOUT EVB,SINGLE CYLINDER) CYLINDER HEAD AND VALVE-GEAR MECHANISM-1

By ALEX-86 16215315999 March 3rd, 2026 107 views

we are very professional in spare parts for 20 years, welcome to send inquiry list to get lowest price and good quality parts
Whatsapp: +0086 16215315999

1	Cylinder head		R61540040003	6	6	6	6	6
2	Ring(outlet)		VG1540040006	12	12	12	12	12
3	Ring (inlet)		VG1540040007	12	12	12	12	12
4	Valve guide		VG1540040008	24	24	24	24	24
5	Nozzle holder		VG1540040009	6	6	6	6	6
6	Nozzle holder gasket		VG1540040010	6	6	6	6	6
7	Bolt plug		VG1540040011	12	12	12	12	12
8	Core plug		90003989721	18	18	18	18	18
9	Core plug		90003989294	12	12	12	12	12
10	Steel ball		90016210001	6	6	6	9	6
11	Joint		VG1540040015	6	6	6	6	6
12	Scraper		VG1540040016	24	24	24	24	24
13	Bolt		VG1500040023	24	24	24	24	24
14	Nut		VG1200040034	7	7	7	7	7
15	Clip		VG1200040023	5	5	5	5	5
16	Clip		VG1200040027	2	2	2	2	2
17	Rocker cover lower part		VG1540040053	6	6	6	6	6
18	Bolt plug		Q61506	6	6	6	6	6
19		VG1540040057		6	6	6	6	6
20		VG1540040022		6	6	6	6	6
21		VG1540040023		6	6	6	6	.6
22		VG1540040025		6	6	6	6	6
23		Q218B0620		12	12	12	12	12
24		90014350003		12	12	12	12	12
25		VG1540040024		6	6	6	6	6
26		Q150B0870		12	12	12	12	12
27		90003930261		18	18	18	18	18
28		90003931102		18	18	18	18	18
29		VG1540040051		6	6	6	6	6
30		VG1540040054		6	6	6	6	6
31		VG14110064		24	24	24	24	24
32		90003932023		24	24	24	24	24
33		Q40108		24	24	24	24	24
34		VG1540040230		1	1	1	1	1
35		90003802455		12	12	12	12	12
36		90003932023		12	12	12	12	12
37	Connecting piece		VG1500060045	1	1	1	1	1
38	Camshaft		VG1540050004	1	1	1	1	1
39	Flange		VG14050133	1	1	1	1	1
40	Bolt		90003802411	2	2	2	2	2
41	Camshaft gear		VG14050053	1	1	1	1	1
42	Dowel pin		90003901409	1	1	1	1	1
43	Bolt		90003802443	4	4	4	4	4
44	Push rod assembly		Z61500050931	12	12	12	12	12
47	Rocker arm pedestal		VG1500050032	12	12	12	12	12
48	Push rod		VG1540050010	6	6	6	6	6
49	Bolt		Q150B1275TF2	6	6	6	6	6
50	Bolt		Q150B1295TF2	6	6	6	6	6
51	Rocket bracket block		VG1540050020	6	6	6	6	6
52	Dowel pin		Q5210508	6	6	6	6	6
53	Socket bolt		Q218B0610	12	12	12	12	12
54	Spring washer		VG1540050023	12	12	12	12	12
55	Valve spring		VG1540050011	24	24	24	24	24
56	Valve cone		VG1540050012	48	48	48	48	48
57	Spring plate		VG1540050013	24	24	24	24	24
58	Outlet valve		VG1540050014	12	12	12	12	12
59	Inlet valve		VG1540050015	12	12	12	12	12
60	Rocket arm(inlet)		VG1540050016	6	9	6	6	6
61	Rocket arm(outlet)		VG1540050017	6	6	6	6	6
62	Valve bridge(inlet)		VG1540050018	6	6	6	6	6
63	Valve bridge(outlet)		VG1540050019	6	6	6	6	6
64	Bolt		VG14050010	12	12	12	12	12
65	Nut		VG2130050065	12	12	12	12	12
66	Holder		VG1560050051	1	1	1	1	1
67	Intermediate gear		VG1560050052	1	1	1	1	1
68	Intermediate gear-axle		VG1540059031	1	1	1	1	1
69	Clamp		VG1560050045	1	1	1	1	1
70	Cover		VG1560050046A	1	1	1	1	1
71	Bolt		90003802411	3	3	3	3	3
72	Spring washer		90003932023	3	3	3	3	3
73	0-ring		90003120602	1	1	1	1	1
75	Bolt		VG1560050059	4	4	4	4	4
76	Intermediate gear Joint		VG1540059032	1	1	1	1	1
