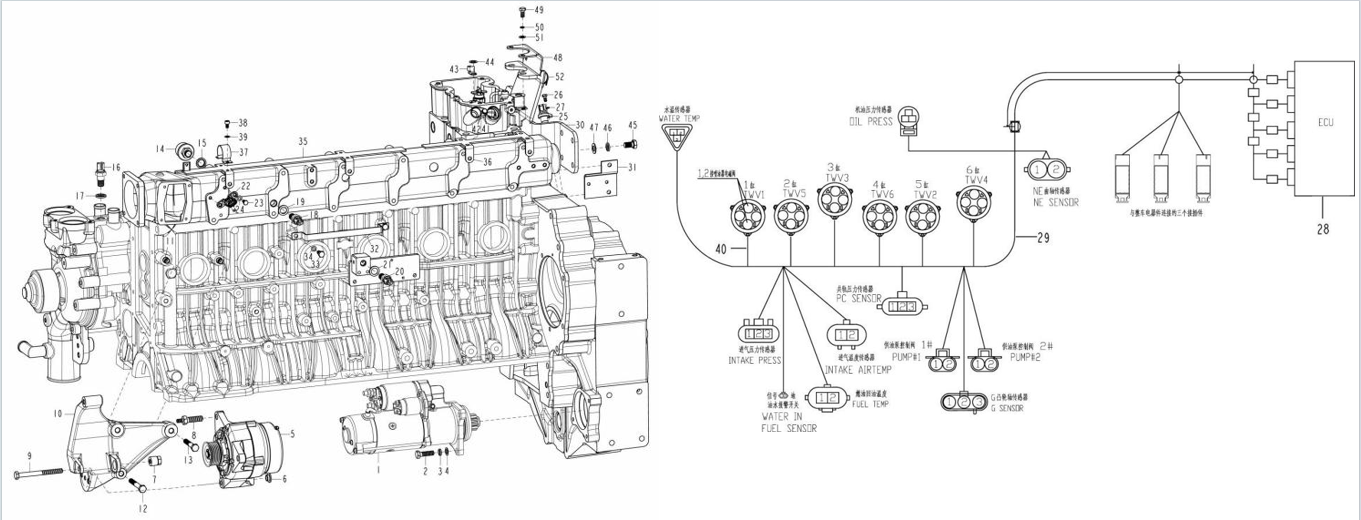

| 1 | VG1246090003 | Starter motor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 2 | Q150B1035 | Hex head bolt | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||
| 3 | Q40310 | Spring washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||
| 4 | Q40110 | Washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||
| 5 | VG1246090005 | Alternator | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 6 | VG1246090006 | Bush | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 7 | VG1246090007 | Positioning nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 8 | VG1246090027 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 9 | Q150B10110 | Hex head bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 10 | VG1246090008 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 11 | VG1246090009 | Positioning bush | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| 12 | Q150B1075 | Hex head bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 13 | Q150B1060 | Hex head bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| 14 | VG1092090311 | Pressure sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 15 | VG9003080007 | Sealing washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 16 | R61540090004 | Coolant temp. sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 17 | VG9003080006 | Sealing washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 18 | R61540090003 | Intake air temp. sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 19 | VG9003080006 | Sealing washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 20 | R61540090005 | Fuel temp. sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 21 | VG1540090006 | Sealing washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 22 | R61540090007 | Pressure sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 23 | Q150B0616 | Hex head bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| 24 | Q41806 | Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| 25 | R61540090008 | Crankshaft speed sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 26 | Q150B0612 | Hex head bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 27 | Q41806 | Spring washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 28 | R61540090002 | ECU assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 29 | VG1246090031 | Wire harness | 1 | 1 | 1 | 1 | ||||||||||
| VG1246090032A | Wire harness | 1 | 1 | 1 | 1 | |||||||||||
| 30 | VG1246110206 | Air cleaner bracket | 1 | 1 | 1 | 1 | ||||||||||
| 31 | VG1246090034 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 32 | VG1246090035 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 33 | Q150B0816 | Hex head bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 34 | Q41808 | Spring washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 35 | VG1246090024 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 36 | VG1246090025 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
| 37 | VG1246090037 | Clamp | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | ||||||
| 38 | Q218B0610 | Socket bolt | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||||||
| 39 | Q41806 | Spring washer | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||||||
| 40 | VG1099090004 | Fuel injector wire harness | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 41 | Q150B0612 | Hex head bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 42 | Q41806 | Spring washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 43 | VG1246090030 | Bracket | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 44 | Q41810 | Spring washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||||
| 45 | Q150B1228 | Hex head bolt | 2 | 2 | 2 | 2 | ||||||||||
| 46 | Q40312 | Spring washer | 2 | 2 | 2 | 2 | ||||||||||
| 47 | Q40112 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| 48 | VG1246090042 | Bracket | 1 | 1 | 1 | 1 | ||||||||||
| 49 | Q150B0825 | Hex head bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| 50 | Q40308 | Spring washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| 51 | Q40108 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| 52 | 190003171390 | Plastic fastening tape | 2 | 2 | 2 | 2 | ||||||||||
